Coxreels DLPL-350 Dual Product Hose Reel 50 Ft Spring

Product Description

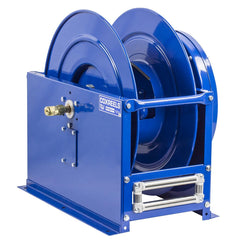

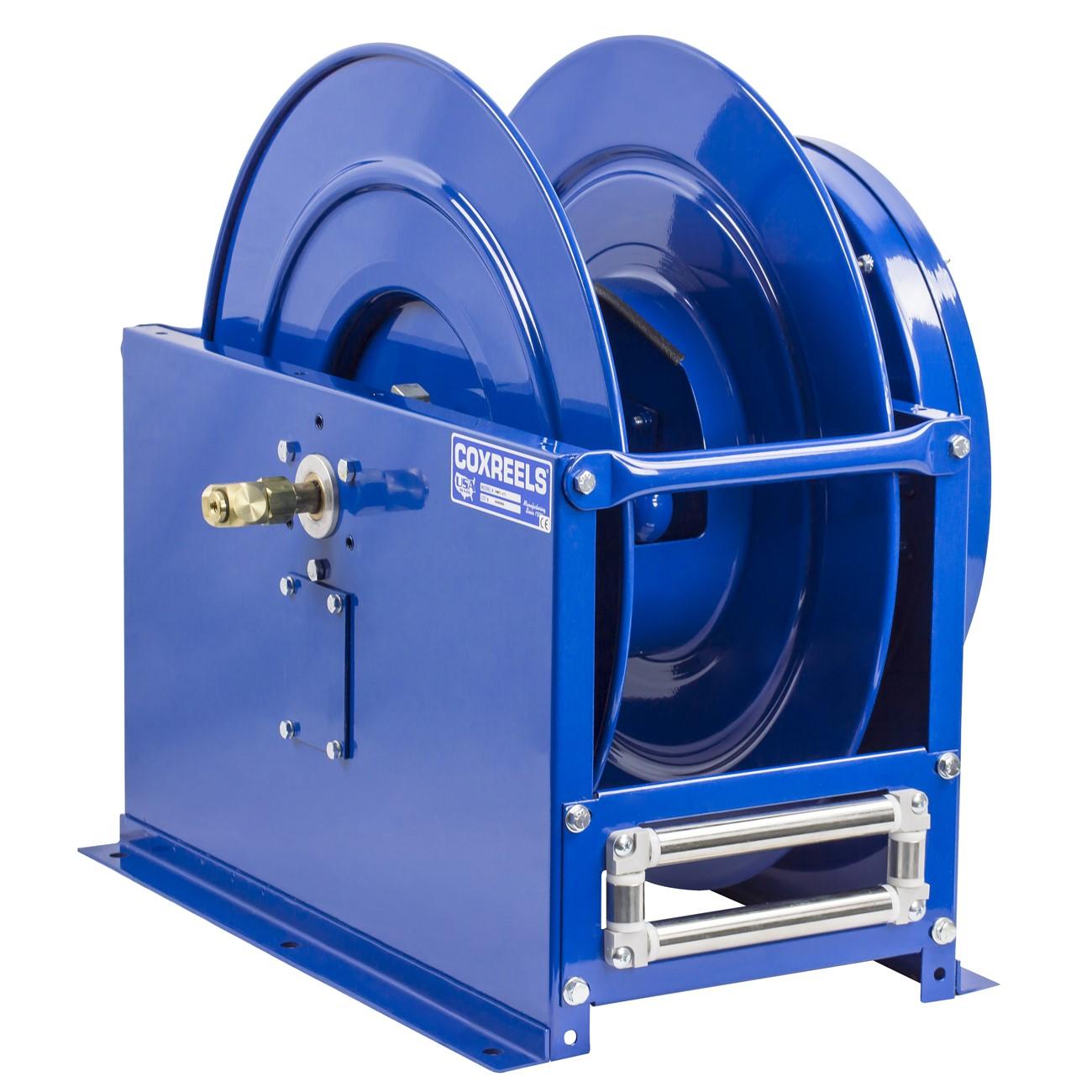

The COXREELS DLPL-350 is a DP Series dual product delivery spring-driven hose reel designed for applications that require simultaneous delivery through two hose lines. The reel features two external swivel inlets and two outlets, supporting large-diameter hose at low to medium pressures. It accepts 3/8 inch ID hose up to 50 feet in length. The box-style steel frame uses heavy-duty cross supports at all four corners for structural rigidity. Licensed HVAC, plumbing, and industrial service technicians install this reel in fixed or mobile service setups where dual-line fluid delivery is required.

The DLPL-350 is suited for commercial and industrial service environments where two separate fluid circuits must be managed from a single reel mounting point. Typical applications include dual-product dispensing, service truck installations, and shop-mounted delivery systems operating at low to medium pressures. Its spring-driven rewind mechanism allows fast, controlled hose recovery without manual effort.

Key Features

• Two machined solid brass 90-degree full-flow NPT swivel inlets allow seal maintenance and hose installation without removing the reel from its mount
• Cartridge-style motor is lubricated, enclosed, and removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Reinforced steel box-style frame with two inlets and two outlets supports dual hose configurations
• Exclusive low-profile outlet riser and open drum slot design produces a flat, non-crimping hose wrap
• CPC powder coat finish resists chips and rust; stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings included

Compatibility

Designed for dual hose applications using 3/8 inch ID hose up to 50 feet in length at low to medium operating pressures in commercial and industrial service installations.

Installation Notes

Installation is typically performed by qualified service technicians or industrial mechanics. Depressurize and drain all fluid lines before mounting or servicing this reel. Secure the reel to a structurally sound surface capable of supporting the unit weight plus loaded hose. Verify that all inlet and outlet connections are compatible with the fluid type and pressure range of the system before placing the reel in service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 3/4 inch
• Hose Length: 50 feet
• Rewind Type: Spring driven
• Inlets: Two NPT swivel inlets
• Outlets: Two
• Frame Material: Steel
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 94 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DLPL-350
