Coxreels DLPL-3100 Dual Product Hose Reel 3/8 in 100 Ft Steel

Product Description

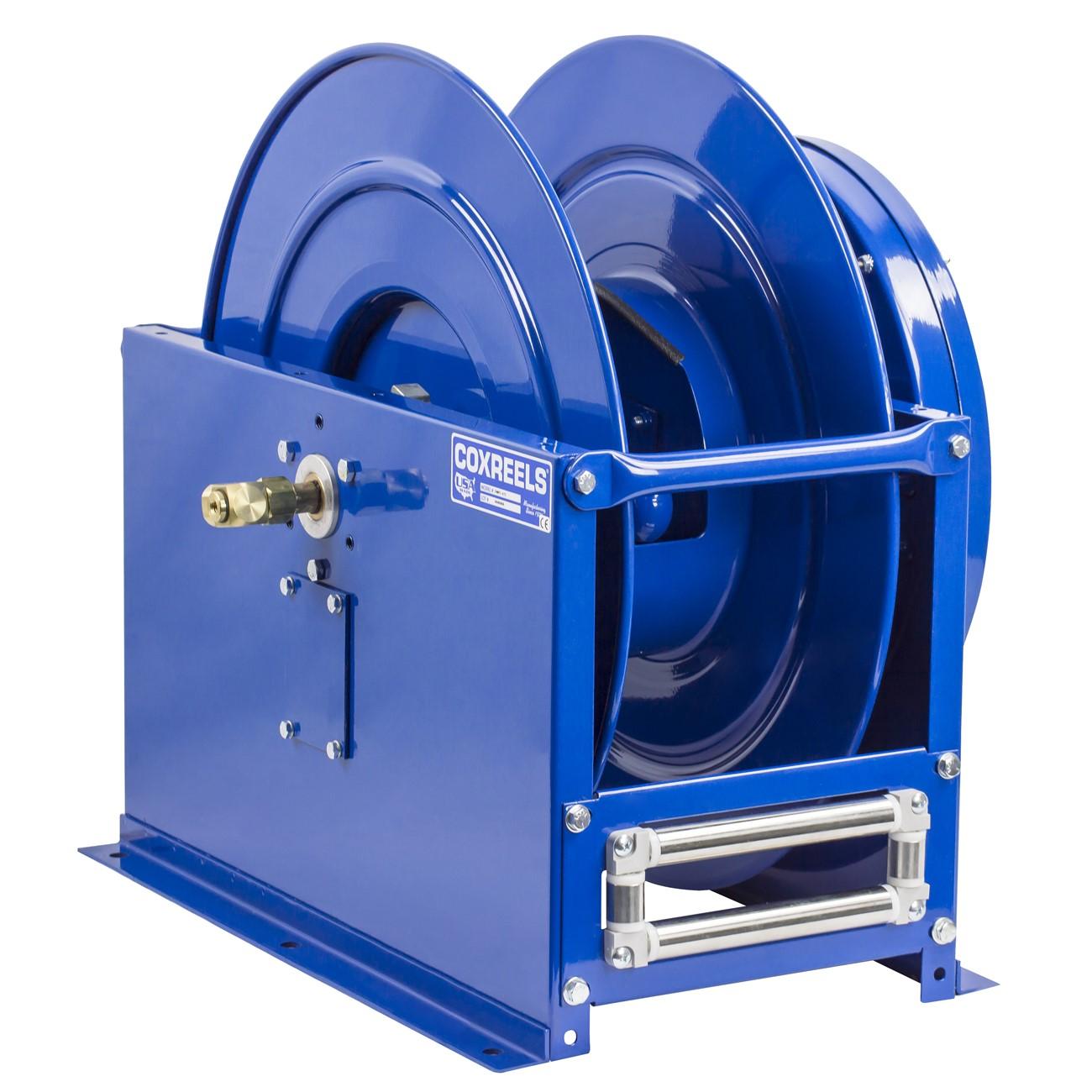

The COXREELS DLPL-3100 is a spring-driven dual product delivery hose reel designed for trade professionals who need to run two hose lines from a single reel. Part of the COXREELS DP Series, it features two external swivel inlets and two outlets to support simultaneous dual hose applications. Built on a heavy-duty steel box-style frame with cross supports at all four corners, this reel is rated for low to medium pressure service and handles large hose diameters where high flow volume is required. It weighs 117 pounds and measures 33.5 inches long, 22 inches wide, and 25.75 inches tall. Licensed HVAC technicians, plumbers, and fluid service professionals install this reel in demanding shop and field environments.

The DLPL-3100 suits residential and commercial applications where dual-fluid delivery is required from one mounted reel location. Its large-capacity drum accommodates 3/8 inch inner diameter hose up to 100 feet in length, making it well suited for oil delivery, lubrication service, fluid transfer, or similar dual-line service scenarios. The spring-retract mechanism returns hose automatically after each use, reducing handling time on busy service calls.

Key Features

• Two machined solid brass 90-degree full-flow NPT swivel inlets allow seal maintenance and hose changes without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is fully removable for safe and convenient maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• CPC powder coat finish resists chips and rust for long service life in harsh environments
• Heavy-duty stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings included

Compatibility

Designed as a dual-product OEM-style hose reel for trade and industrial fluid delivery applications requiring 3/8 inch ID hose up to 100 feet at low to medium operating pressures.

Installation Notes

Installation is typically performed by a licensed fluid service technician or qualified mechanic familiar with hose reel mounting and hydraulic line connections. Shut off and depressurize all fluid supply lines before beginning installation or maintenance. Secure the reel to a structurally adequate mount using appropriate fasteners rated for the combined weight of the reel and filled hose. Follow all applicable facility and safety codes when routing dual fluid supply lines to the swivel inlets.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Length Capacity: 100 feet
• Drive Type: Spring driven
• Number of Inlets: 2
• Number of Outlets: 2
• Frame Material: Steel
• Finish: CPC powder coat
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 117 pounds
• UPC: 674255814189

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DLPL-3100
