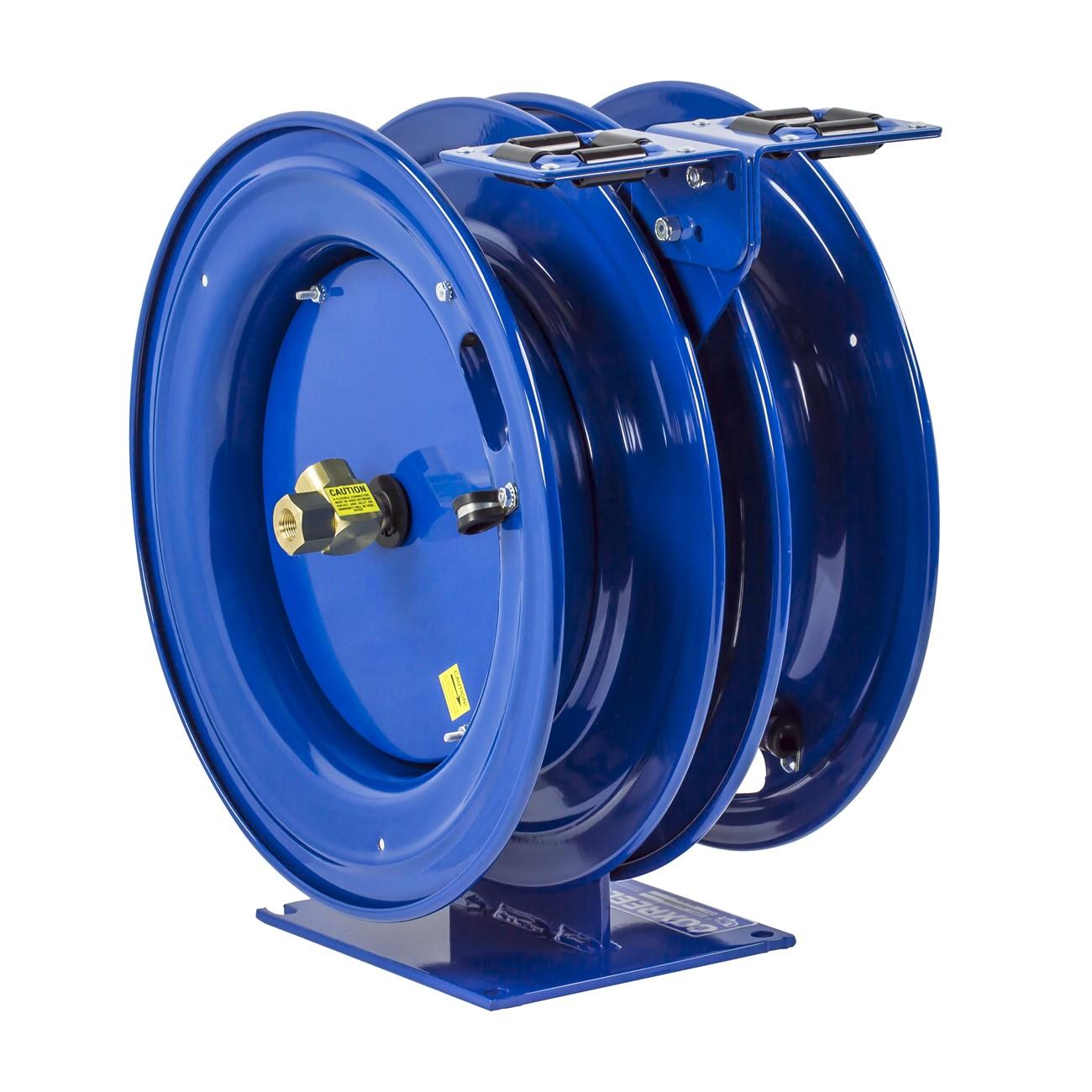

Coxreels C-MPL-430-430 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-MPL-430-430 is a dual combination spring-driven hose reel from the C Series, engineered to deliver two independent hose sources from a single compact assembly. Built for trade professionals who work in space-constrained environments, this unit mounts on a single base that accepts both reels, each operating independently. The hose accepts a 1/2 inch inner diameter with a 13/16 inch outer diameter, and supports up to 30 feet of hose per reel. A machined solid brass 90-degree full-flow NPT swivel provides an external dual fluid path, and the enclosed cartridge-style spring motor is factory-tuned and matched to the application for consistent retraction performance throughout the service life.

The C-MPL-430-430 is designed for industrial, fleet, and shop applications where two fluid or air sources must be delivered simultaneously from one mounting footprint. Typical installs include service bays, maintenance facilities, and mobile service vehicles where routing two separate hose lines from independent sources is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making this reel suitable across a wide range of fixed and mobile setups. Licensed mechanics, plumbers, and industrial maintenance technicians are the primary installers.

Key Features

• Dual combination design: two independent reels on one single mounting base for space-efficient dual-hose applications
• Machined solid brass 90-degree full-flow NPT swivel with external dual fluid path for simple seal maintenance without removing the reel from its mount
• Enclosed cartridge-style spring motor is factory-tuned, lubricated, and easily removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with 1/4 inch steel support post, no-weld construction, for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel suitable for industrial air, fluid, or compatible dual-source hose applications. Also available in air hose and electrical cord combination configurations within the C Series.

Installation Notes

Installation is typically performed by licensed mechanics or industrial maintenance technicians. Before mounting or servicing the reel, shut off all fluid or air supply lines and relieve any pressure in the hose. Secure the single base mounting pattern to a structurally adequate wall, floor, ceiling, or vehicle surface using hardware appropriate for the mounting substrate and load. Consult applicable local codes and the manufacturer documentation for torque and connection requirements.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length: 30 feet per reel
• Drive Type: Spring driven
• Base Material: Steel (one-piece, no-weld)
• Swivel Material: Machined solid brass
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 66 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MPL-430-430
