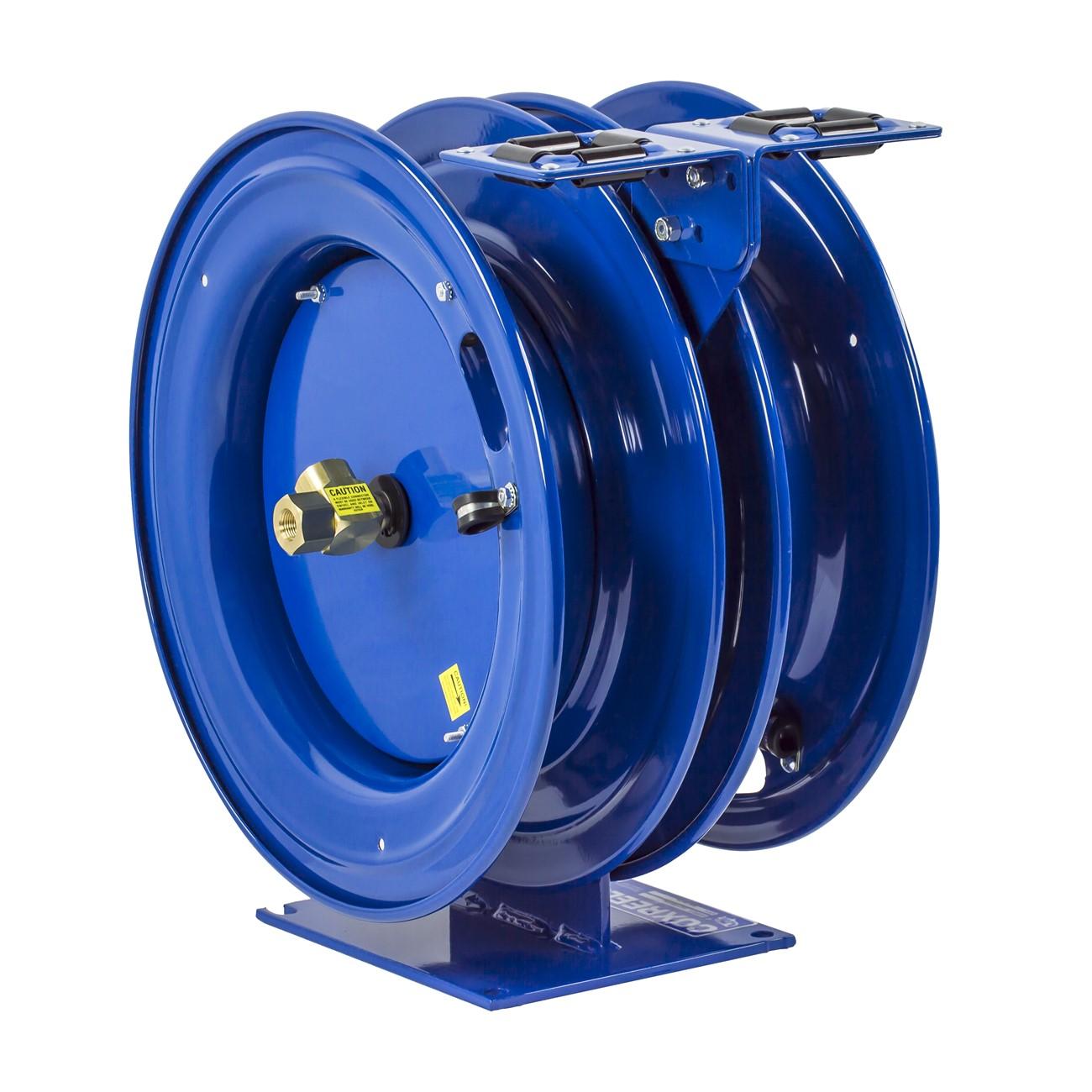

Coxreels C-MPL-425-425 Dual Spring Hose Reel 1/2 in 25 Ft

Product Description

The COXREELS C-MPL-425-425 is a dual-reel, spring-driven combination hose reel designed to deliver two fluid sources from a single compact mounting assembly. Built for trade and industrial environments where space is limited but dual-line access is required, this unit houses two independently operating reels on one pedestal base. The spring-driven retraction mechanism uses a precision coil spring that is factory-tuned to the application for consistent rewind performance over the life of the reel. At 64 pounds, the assembly is built for permanent installation in shop, fleet, or facility settings. Licensed plumbers, HVAC technicians, and industrial service professionals are the primary installers of this unit.

The C-MPL-425-425 is suited for applications where two separate fluid or air lines must be routed from a single station. Common install scenarios include automotive service bays, industrial maintenance facilities, fleet service centers, and agricultural equipment shops. The 1/2 inch internal diameter hose path supports standard fluid and compressed air delivery, and the 25 foot hose length covers typical service bay reach requirements. The compact two-reel configuration makes this unit practical where wall space or overhead mounting footprint is constrained. Each reel operates independently, allowing simultaneous or separate use of both lines.

Key Features

• Dual spring-driven reels in one assembly — each reel operates independently for flexible dual-line service
• Two external fluid path machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece 1/4 inch steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish provides chip resistance and rust inhibition; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-install combination spring-driven hose reel for dual-line fluid and compressed air service applications. Also available in air hose and electrical cord combination configurations within the C Series lineup.

Installation Notes

Installation is typically performed by licensed industrial mechanics, plumbers, or HVAC service technicians familiar with fluid line and compressed air system connections. Shut off and depressurize all supply lines before mounting or connecting hoses to the reel. Verify that the mounting surface — wall, floor, ceiling, or vehicle — can support the combined weight of the unit and loaded hose lines. Consult applicable OSHA and local mechanical codes for compressed air and fluid line installation requirements in commercial and industrial facilities.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 13/16 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Configuration: Dual combination reel, single mounting base
• Base Material: 1/4 inch solid steel, no-weld construction
• Swivel Material: Machined solid brass, full-flow NPT
• Finish: CPC powder coat, chip and rust resistant
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 64 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MPL-425-425
