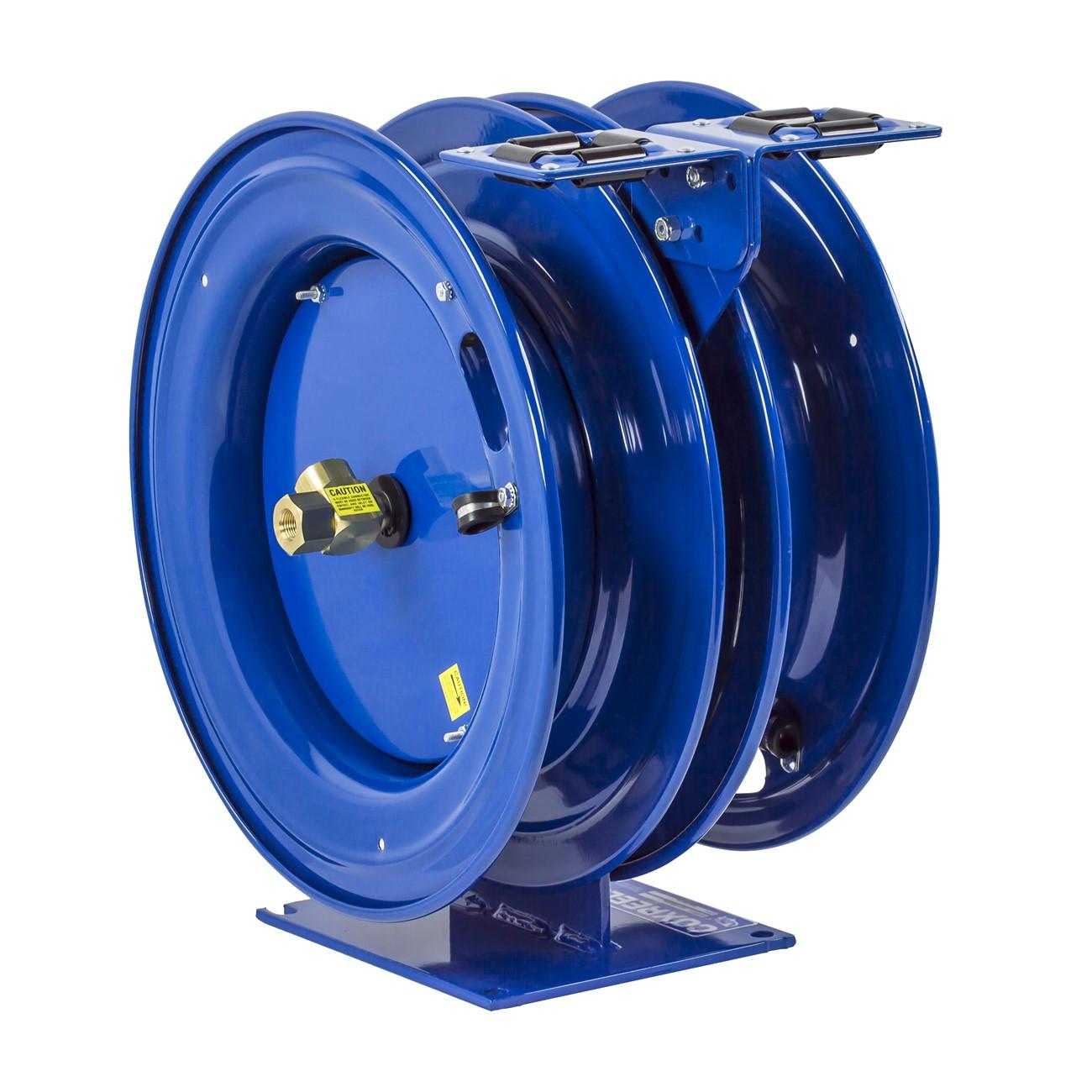

Coxreels C-MPL-335-335 Dual Spring Driven Hose Reel 3/8 in 35 Ft

Product Description

The COXREELS C-MPL-335-335 is a C Series combination spring-driven hose reel that mounts two independent reels on a single compact assembly. Designed for applications where two fluid or air sources are required in tight spaces, this unit uses a precision coil spring motor factory-tuned to the application for consistent retraction performance and long service life. The machined solid brass swivel maintains full-flow NPT connections at both ports. At 68 pounds, the unit is built for stationary trade installations where dual-hose access is essential. Licensed plumbers, HVAC technicians, and industrial service professionals are the primary installers of this equipment.

The C-MPL-335-335 suits commercial and industrial service bays, maintenance facilities, fleet shops, and job sites where two hose connections must be accessed from a single mounting point. Each reel operates independently, making it practical for simultaneous use of two fluid or compressed-air lines. The unit accepts a 3/8 inch ID hose and is rated for 35 feet per reel. It is also available in air hose and electrical cord combination configurations, broadening its use across mixed-service environments.

Key Features

• Dual independent spring-driven reels mounted on a single steel base for compact dual-hose access
• Machined solid brass 90-degree full-flow NPT swivel with external fluid path allows hose installation and seal maintenance without removing the reel from its mount
• Enclosed lubricated cartridge-style spring motor is removable for safe field maintenance without disassembling the full assembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual-reel solution for industrial and commercial service environments requiring two independent hose connections from a single mounting base; also available in air hose and electrical cord combination configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed-air or fluid distribution systems. Shut off all fluid and air supply lines and depressurize the system before beginning any connection or mounting work. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting surfaces — confirm that the mounting structure can support the combined weight of the reel and loaded hose. Follow applicable facility and equipment codes when routing supply lines to the swivel inlet.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Length per Reel: 35 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Base Material: One-piece solid steel
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 68 pounds
• Finish: CPC powder coat
• UPC: 674255712287

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MPL-335-335
