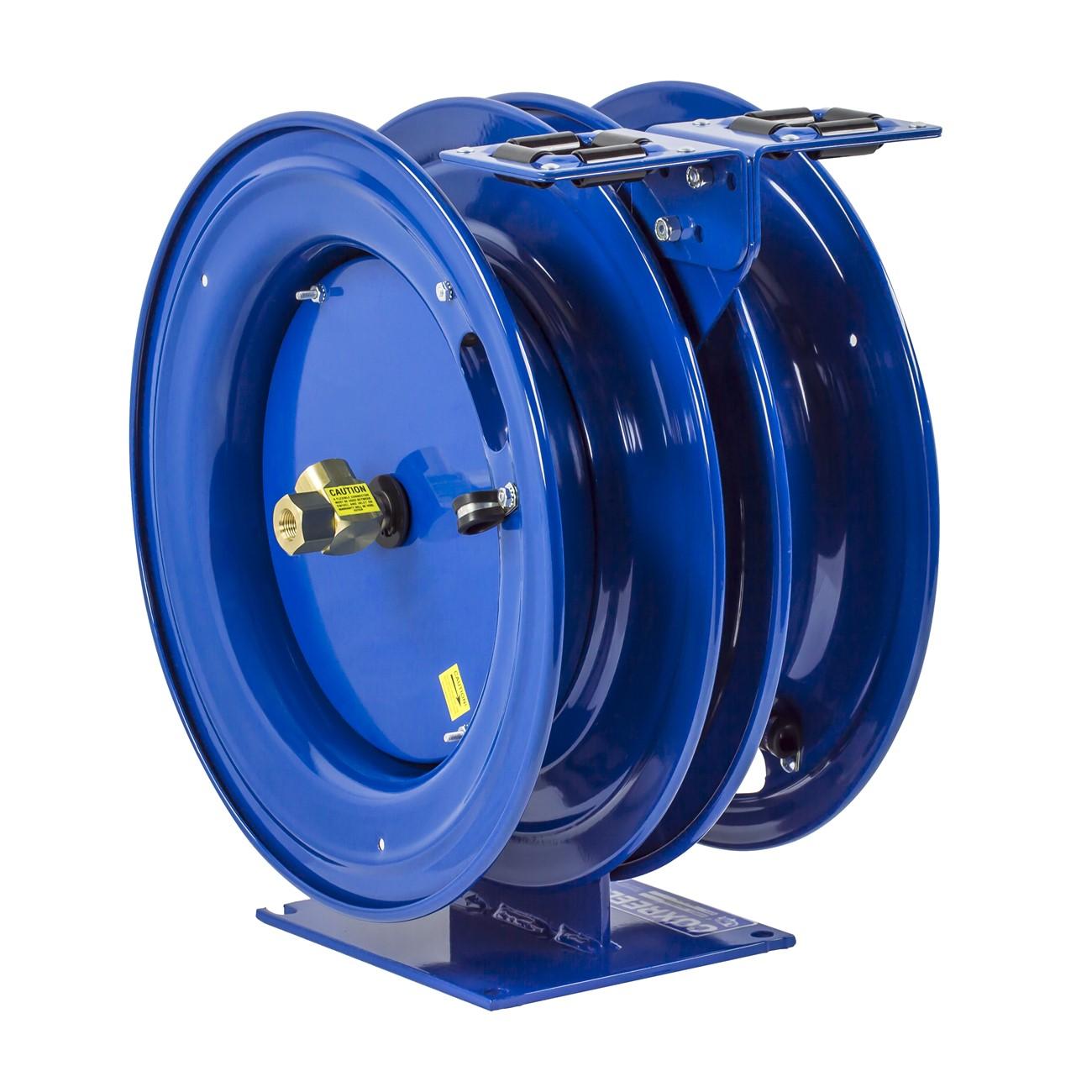

Coxreels C-MPL-325-325 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-MPL-325-325 is a dual combination spring-driven hose reel that combines two independent reels into a single compact assembly. Built for trade professionals who need two fluid sources in tight quarters, it features a solid one-piece steel base with a single mounting pattern for stability. The unit includes a machined solid brass 90-degree full-flow NPT swivel on each reel for direct external fluid path access and fast hose installation without removing the reel from its mount. Heavy-duty CNC robotically spun and ribbed discs with rolled edges add structural strength and protect both the hose and the operator. At 66 pounds, this is a robust assembly suited for demanding shop or field installations.

The C-MPL-325-325 is designed for applications requiring two simultaneous fluid sources — such as dual air lines, dual liquid delivery, or air-and-fluid combinations — in environments where space is limited. The compact dual-reel configuration is well suited for service bays, maintenance shops, fleet vehicles, and industrial work areas. Each reel operates independently, allowing separate hose management without interference. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of job site configurations.

Key Features

• Two independent spring-driven reels in one compact single-base assembly
• Machined solid brass 90-degree full-flow NPT swivel with external fluid path for easy seal maintenance and hose installation without dismounting the reel
• Enclosed cartridge-style motor with precision coil spring factory-tuned for long service life and safe field maintenance
• CNC robotically spun and ribbed discs with rolled edges for added strength, durability, and hose protection
• Solid one-piece 1/4-inch steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish rated for chip resistance and rust inhibition; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for professional trade use with 3/8 inch ID hose; also available in air hose and electrical cord combination configurations within the C Series product line.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and depressurize the supply line before connecting or disconnecting hoses or servicing the swivel. Secure the mounting base to a surface rated for the combined weight of the unit and loaded hose. Consult applicable OSHA and local codes for overhead or vehicle-mounted reel installations.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 11/16 inches
• Hose Length: 25 feet
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 66 pounds
• Base Material: Steel
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• Drive Type: Spring Driven
• Number of Reels: 2
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MPL-325-325
