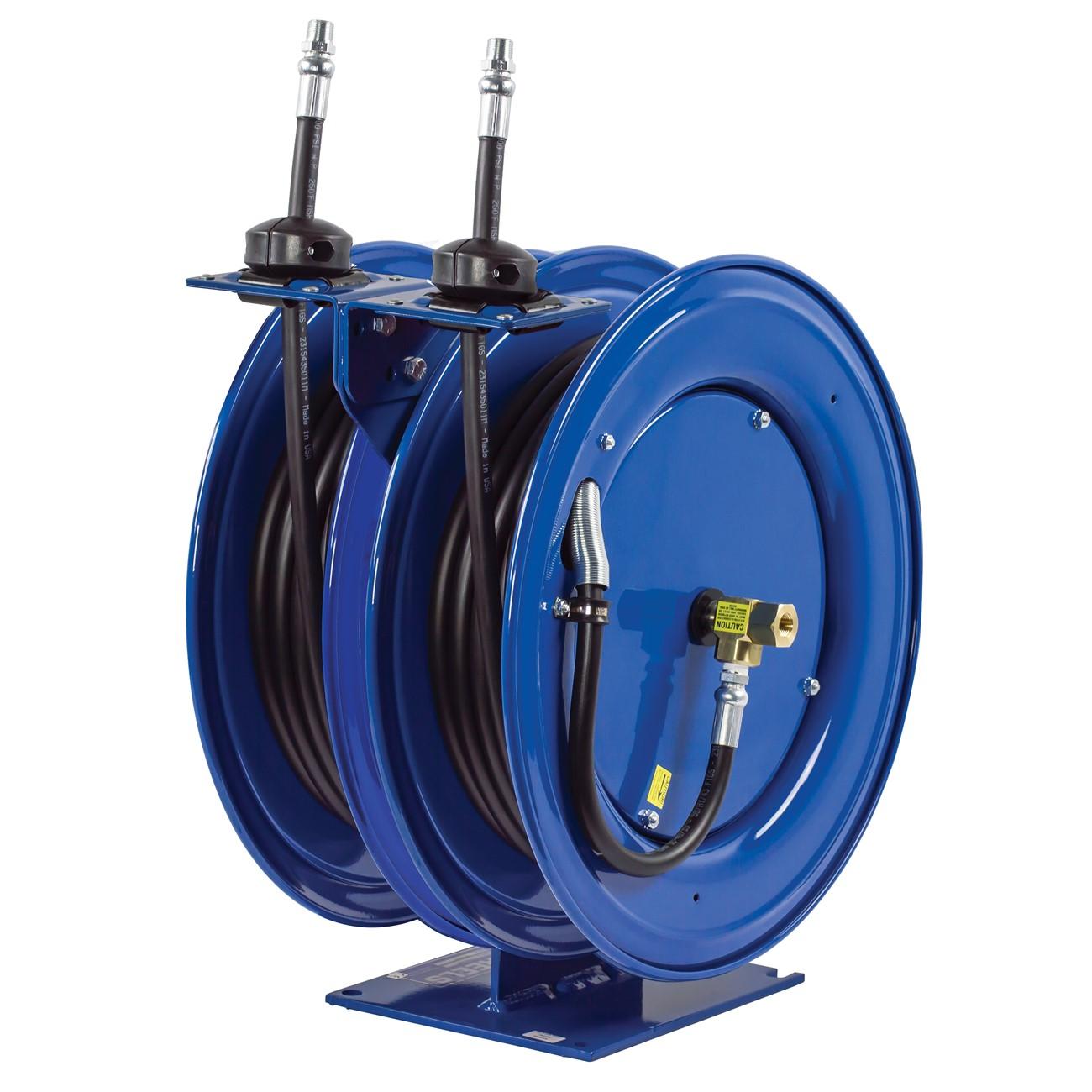

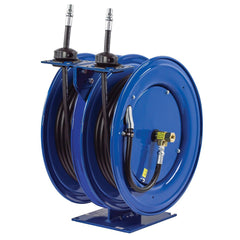

Coxreels C-MP-430-430 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-MP-430-430 is a C Series combination spring-driven hose reel that integrates two independent reels into one compact assembly. Designed for applications where two fluid sources are required and mounting space is limited, this unit features a single steel base that supports both reels while allowing each to operate independently. The 1/2 inch inner diameter hose path accommodates up to 30 feet of hose per reel. A machined solid brass 90-degree full-flow NPT swivel provides an external two-path fluid connection, making seal maintenance straightforward without removing the reel from its mount. Licensed HVAC techs, plumbers, and industrial service professionals will find this reel well-suited to demanding dual-supply service calls.

This dual hose reel is built for commercial and industrial environments where two media sources must be deployed simultaneously from a single mounting footprint. Typical applications include fluid transfer, compressed air delivery, and similar two-line service work in shops, service vehicles, and facilities. The single mounting base simplifies installation on walls, floors, ceilings, or vehicles using the multi-position guide arm. The C-MP-430-430 is also available in air hose and electrical cord combination configurations, broadening its use across service trades.

Key Features

• Dual independent hose reels in one compact assembly share a single mounting base and pattern
• External two-path brass 90-degree full-flow NPT swivel allows seal service without dismounting the reel
• Enclosed cartridge-style motor is fully removable for maintenance; precision coil spring is factory-tuned to the application
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with no-weld support post for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for commercial and industrial two-line fluid or air supply applications. Also available in air hose and electrical cord combination configurations within the C Series lineup.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or compressed air systems. Shut off and depressurize all supply lines before mounting or servicing the reel. The multi-position guide arm must be secured to a structural surface capable of supporting the assembled weight of the unit and loaded hose. Consult applicable facility safety codes and the manufacturer documentation before routing hose connections to the swivel inlet.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length: 30 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Solid one-piece steel
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 84 pounds
• UPC: 674255712263

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MP-430-430
