Coxreels C-MP-425-425 Dual Spring Driven Hose Reel 1/2 in

Product Description

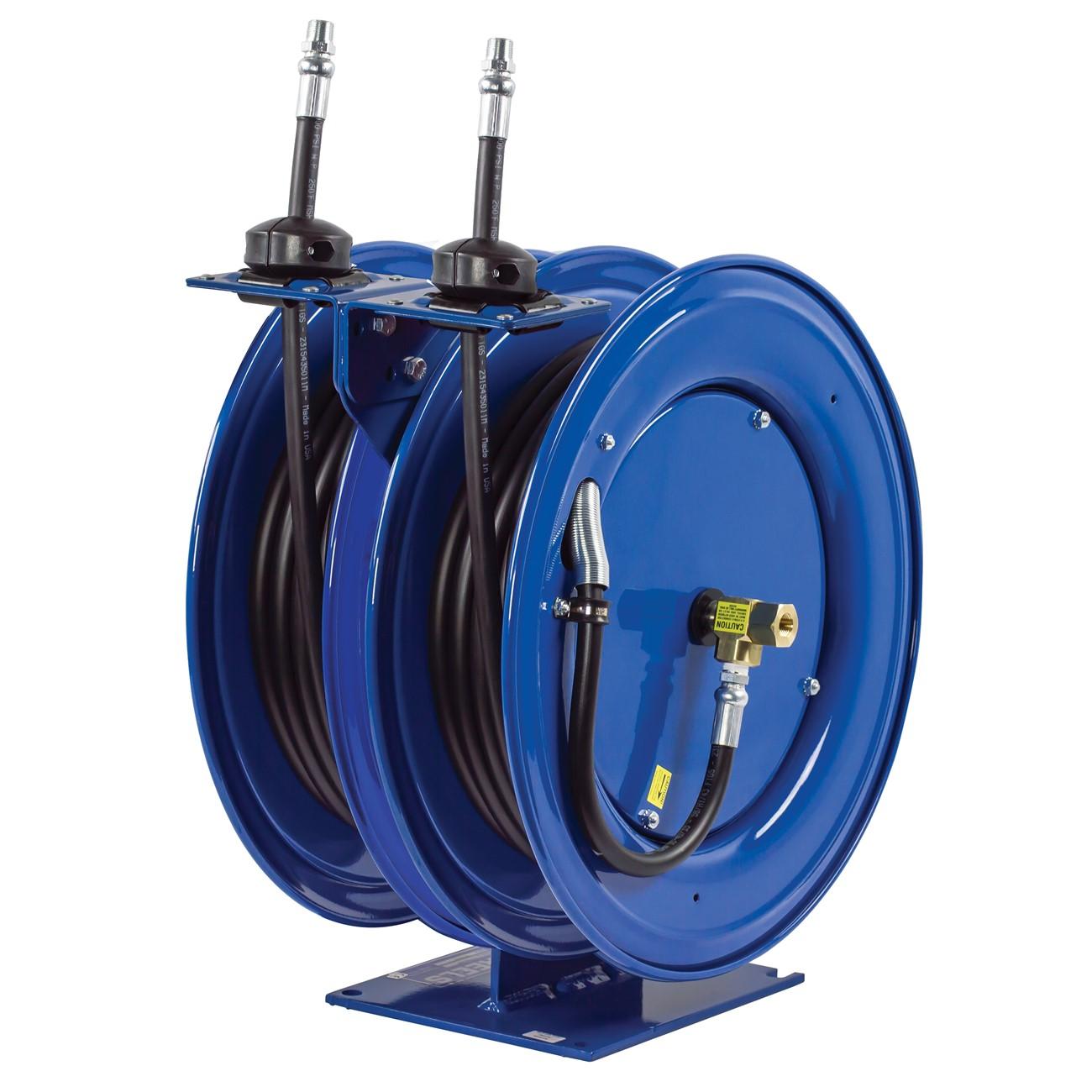

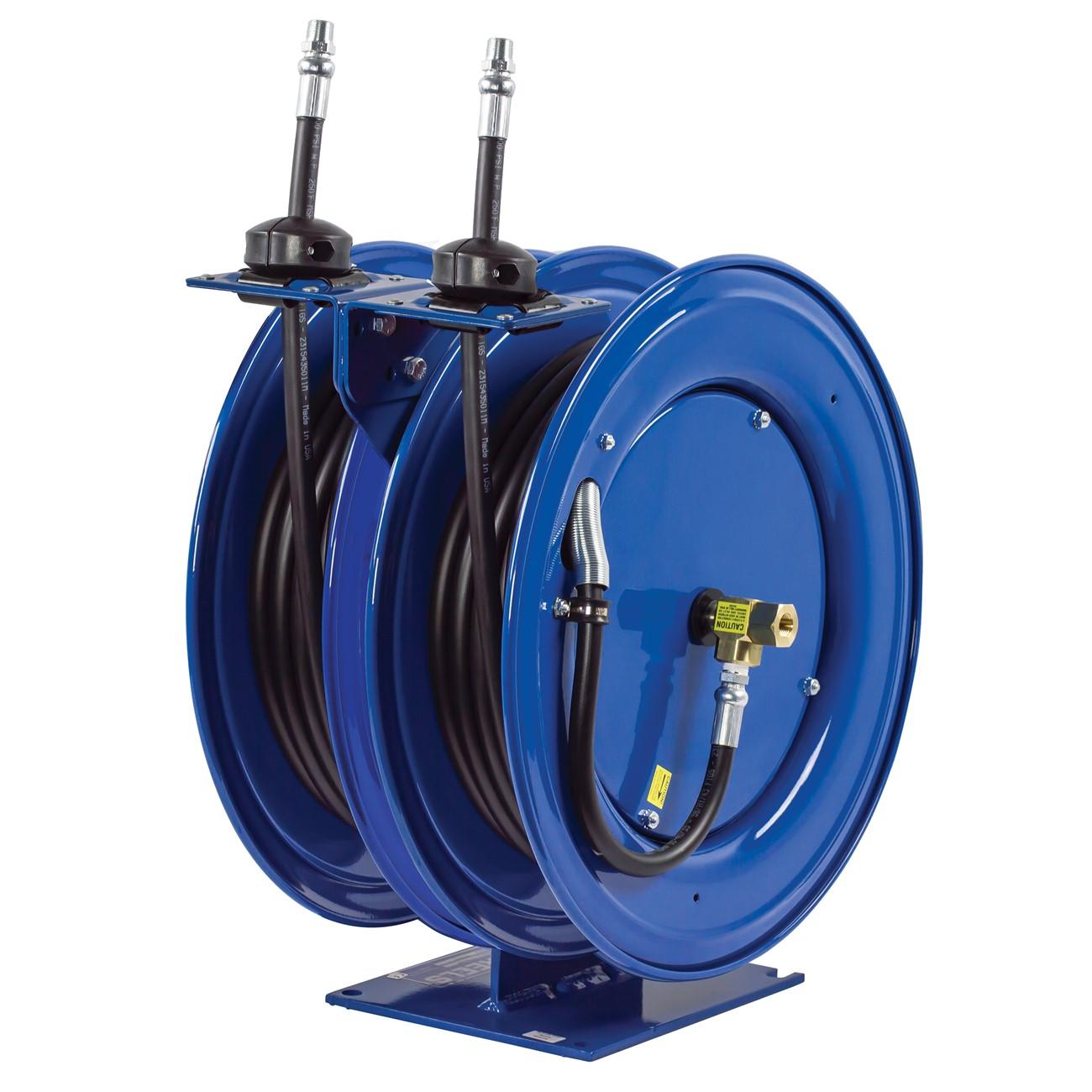

The COXREELS C-MP-425-425 is a dual combination spring-driven hose reel designed to deliver two fluid sources from a single compact assembly. Built on the C Series platform, this unit combines two independent reels on one mounting base, making it well suited for applications where space is limited but dual supply lines are required. The reel features a machined solid brass 90-degree full-flow NPT swivel with an external fluid path, CNC robotically spun ribbed steel discs with rolled edges, and a chip-resistant CPC powder coat finish. It accepts hose with a 1/2-inch inner diameter and accommodates 25 feet of hose. At 78 pounds, the assembly is a fixed-station unit intended for wall, floor, ceiling, or vehicle mounting.

This reel is intended for trade and industrial environments where two fluid or air sources must be accessible from a single mounting point. Typical applications include automotive service bays, maintenance facilities, and fleet service vehicles where air, water, or fluid lines are run simultaneously. The compact dual-reel design allows each reel to operate independently while sharing one pedestal, reducing the footprint compared to two separate reel installations. The multi-position guide arm adapts to a variety of mounting orientations without requiring additional hardware changes.

Key Features

• Dual combination design mounts two independent hose reels on a single steel pedestal base
• External dual fluid path swivel uses machined solid brass construction with 90-degree full-flow NPT connection for in-place seal maintenance without removing the reel
• Lubricated enclosed cartridge-style spring motor is removable for maintenance; precision coil spring is factory tuned to application
• CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• Adjustable solid rubber hose stop, permanently lubricated precision bearings, and CPC powder coat finish for corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct-fit unit for dual hose reel applications requiring a 1/2-inch ID hose in combination spring-driven configurations. Also available in air hose and electrical cord combination configurations within the C Series line.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or compressed air distribution systems. Shut off all supply lines and depressurize the system before mounting or servicing the reel. Secure the pedestal base to a structurally sound surface using appropriately rated fasteners for the mounting orientation. Confirm that the supply fitting and swivel connection are compatible with the intended fluid type and operating pressure before placing the system in service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Solid one-piece steel
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 78 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MP-425-425
