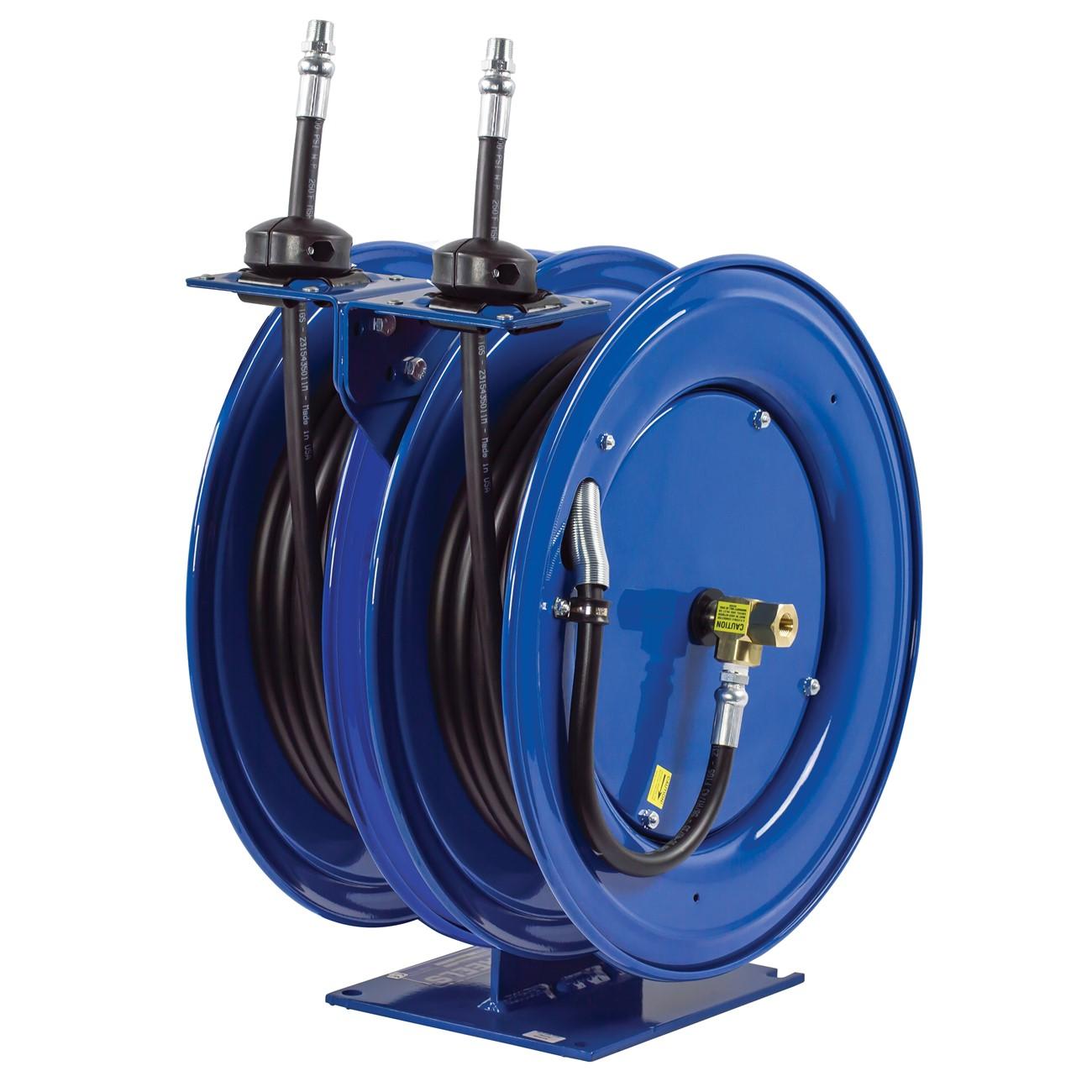

Coxreels C-MP-335-335 Dual Spring Driven Hose Reel 3/8 in

Product Description

The COXREELS C-MP-335-335 is a C Series combination spring-driven hose reel that integrates two independent reels into a single compact assembly. Designed for applications where two fluid or air sources must be delivered from one mounting point, this dual reel unit operates each side independently while sharing a single solid steel base. The spring-driven retraction mechanism uses a precision coil spring that is factory-tuned to the application. Hose ID measures 3/8 inches, OD measures 11/16 inches, and each reel accommodates 35 feet of hose. At 86 pounds, the assembly is a fixed-station unit intended for permanent or semi-permanent installation by maintenance technicians and trade professionals.

This dual combination reel is well suited for industrial, fleet maintenance, and shop environments where space is limited but two simultaneous supply lines are required. Typical installations include automotive service bays, manufacturing facilities, and utility vehicles where air, fluid, or mixed-service hose management is critical. The compact two-reel footprint reduces wall or floor space compared to mounting two separate reels, and the multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations.

Key Features

• Two independent spring-driven reels in one assembly, each operating separately from a shared single steel base
• External dual fluid path with machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• Removable lubricated cartridge-style motor with precision coil spring factory-tuned for application-specific performance and long service life
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Sturdy 1/4 inch solid one-piece steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm adjustable for wall, floor, ceiling, and vehicle mounting; CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for industrial and trade applications requiring two independent hose supply lines from a single mounting assembly. Also available in air hose and electrical cord combination configurations within the C Series lineup.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid and compressed-air plumbing systems. Shut off all fluid and air supply pressure before mounting or servicing the reel. The multi-position guide arm and single-base mounting pattern allow flexible positioning, but the mounting surface must be rated to support the assembly weight of 86 pounds plus the loaded hose. Follow all applicable facility safety codes and manufacturer torque guidance for NPT swivel fittings during hose connection.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length (per reel): 35 feet
• Drive Type: Spring driven
• Swivel Type: Machined solid brass 90-degree full-flow NPT, external dual fluid path
• Base Material: Solid one-piece steel, 1/4 inch thickness, no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 86 pounds
• UOM: Each
• UPC: 674255712249

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MP-335-335
