Coxreels C-MP-325-325 Dual Hose Reel 3/8 in 25 Ft

Product Description

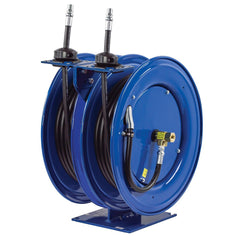

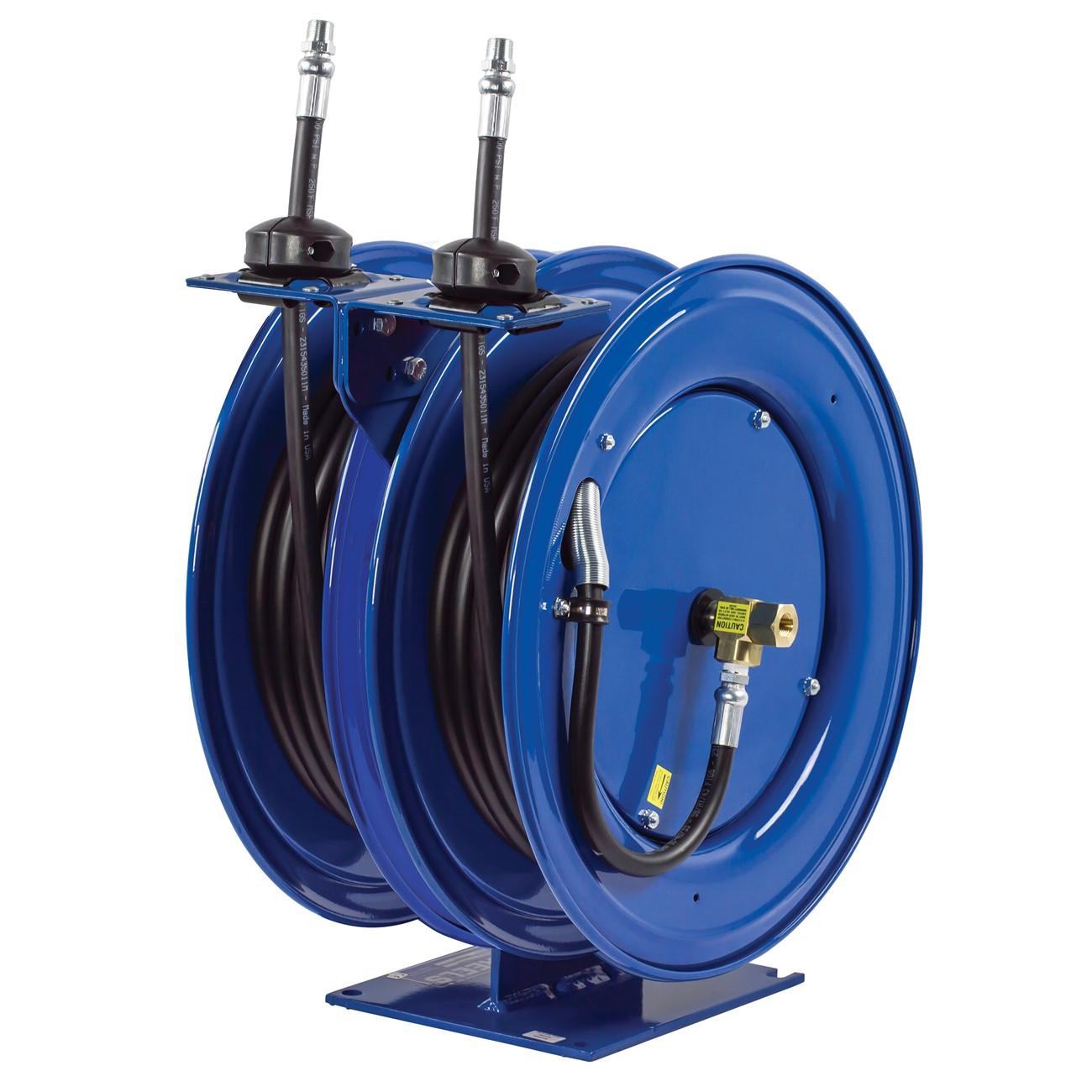

The COXREELS C-MP-325-325 is a C Series combination spring driven dual hose reel that mounts two independent reels on a single compact assembly. Designed for applications where two fluid sources are required in tight spaces, this unit features a machined solid brass 90-degree full-flow NPT swivel with an external fluid path on each reel for straightforward seal maintenance. The hose capacity is 25 feet at 3/8 inch ID and 11/16 inch OD per reel. Constructed with heavy duty CNC robotically spun and ribbed steel discs with rolled edges, this reel is built for durability and operator safety. Licensed HVAC, plumbing, and mechanical contractors install this reel in commercial and industrial service environments.

The C-MP-325-325 suits applications where two hose sources must operate from one mounting point and floor space is limited. The single mounting base accepts wall, floor, ceiling, and vehicle mounting positions via the multi-position guide arm. This makes it well suited for service trucks, shop floors, and maintenance bays where dual compressed air, fluid, or similar media lines are routed simultaneously. Each reel operates independently, so one hose can be deployed without affecting the other.

Key Features

• Two independent spring driven reels on one compact single-base assembly for dual hose applications
• External fluid path machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Enclosed lubricated cartridge-style motor is removable for maintenance; precision coil spring factory tuned to application
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish provides chip resistance and rust inhibition; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed as a direct-fit C Series combination dual hose reel for applications requiring two independent hose sources from one mounting assembly; also available in air hose and electrical cord combination configurations within the C Series.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid system connections. Shut off and depressurize all fluid lines before connecting or servicing the swivel and hose fittings. Secure the mounting base to a surface rated for the combined loaded weight of the assembly using hardware appropriate to the mounting surface material. Consult local mechanical and safety codes for requirements governing fluid line installations in your jurisdiction.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length (per reel): 25 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Base Material: Solid one-piece steel, 1/4 inches thick
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 80 pounds
• UPC: 674255712232

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-MP-325-325
