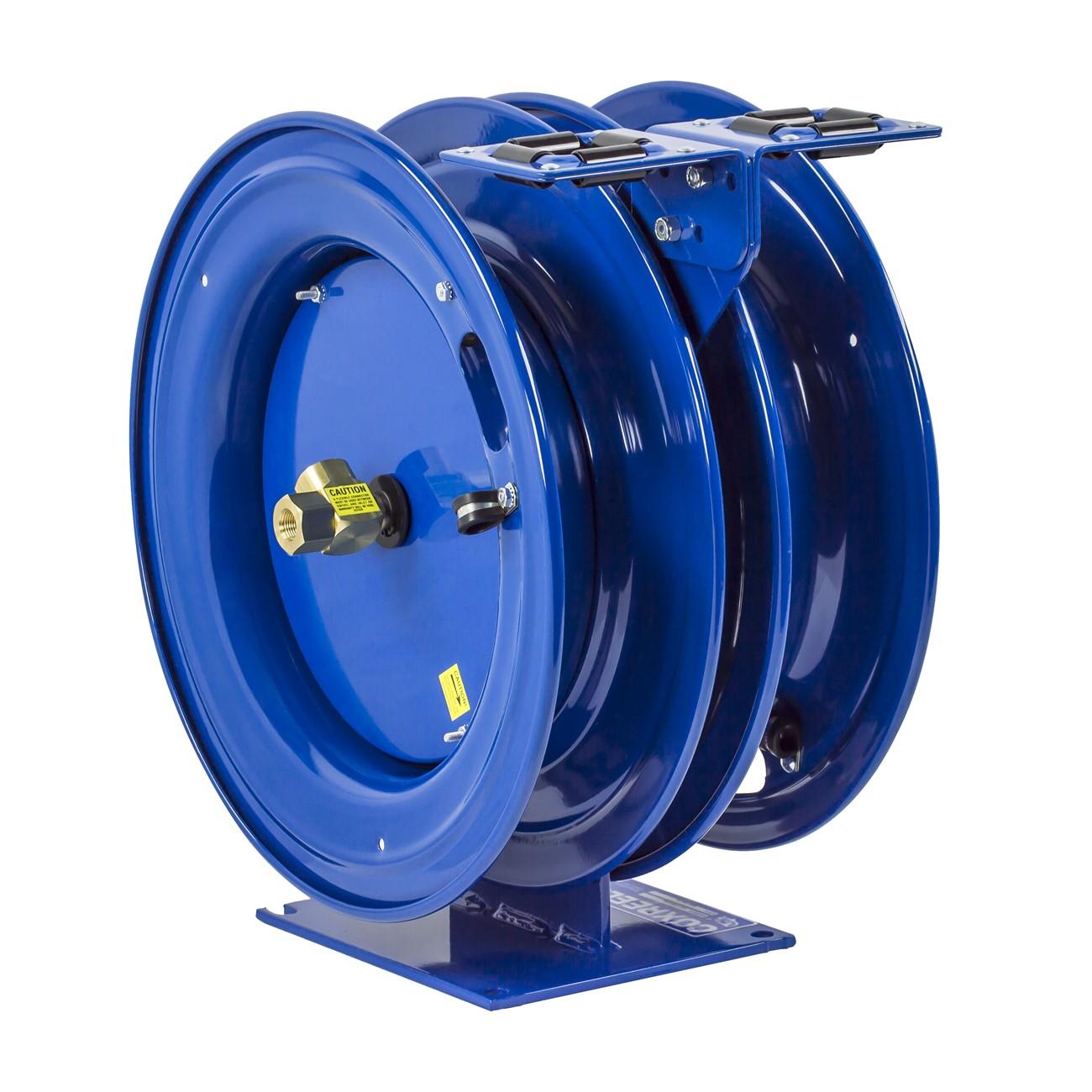

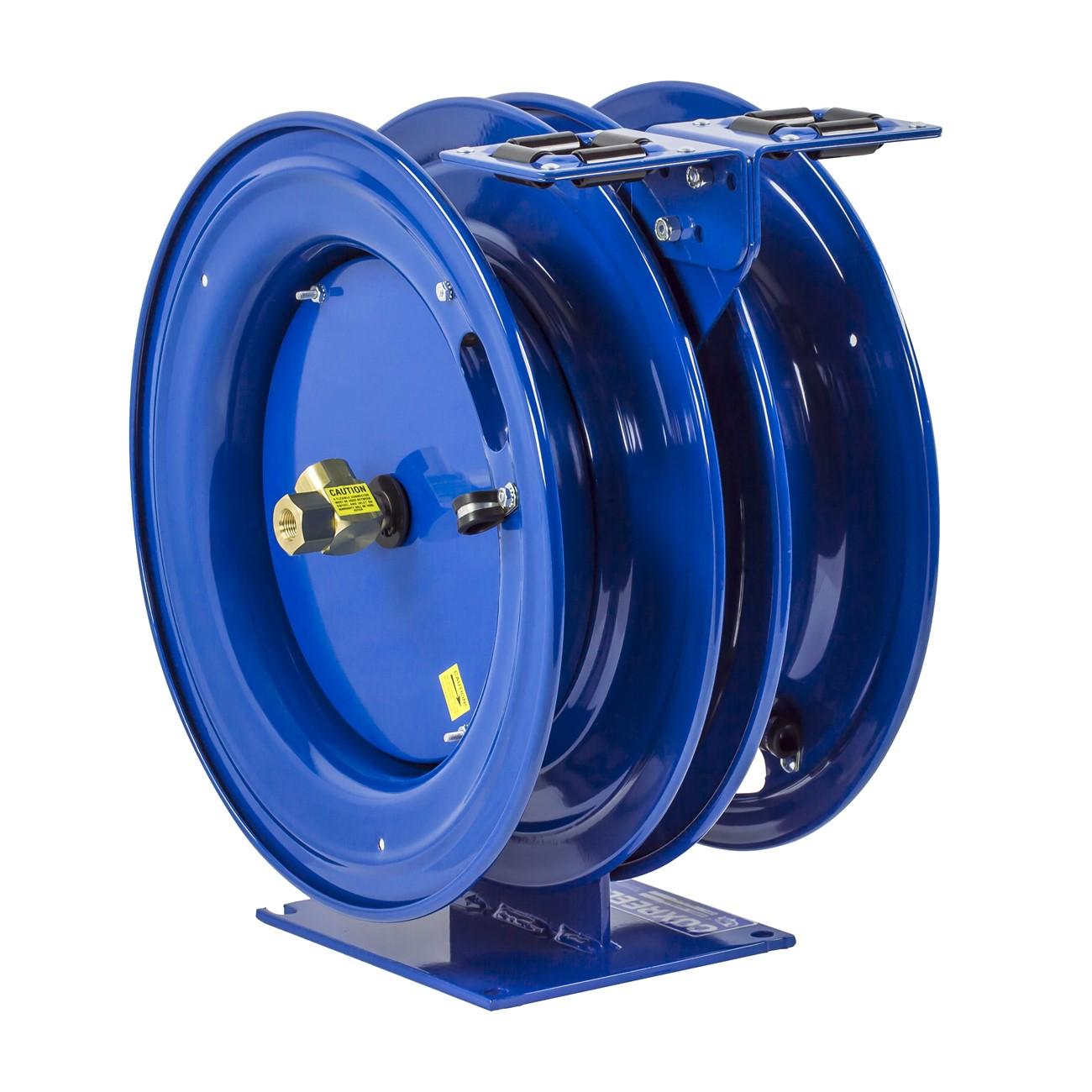

Coxreels C-LPL-425-425 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-LPL-425-425 is a C Series combination spring-driven dual hose reel designed to deliver two fluid sources from a single compact assembly. Built for trade professionals who need two hose connections in tight-quarters applications, this reel pairs two independent spring-driven reels on one solid steel mounting base. The unit features a 1/2 inch inner diameter hose path and accommodates 25 feet of hose per reel. It weighs 60 pounds and measures 18.75 inches long, 14.25 inches wide, and 20.5 inches tall. A licensed technician or qualified tradesperson handles installation in demanding shop, fleet, or facility environments.

This reel is suited for industrial, commercial, and fleet maintenance applications where two separate fluid or air sources must be accessed from the same workstation. The single-base design conserves floor or wall space while supporting dual independent hose operation. It is well suited for lube bays, vehicle service facilities, and industrial maintenance environments where space efficiency and workflow continuity are priorities. Each reel operates independently, so one can be in use while the other retracts.

Key Features

• Dual-reel combination assembly on a single mounting base — each reel operates independently
• External fluid path swivel machined from solid brass with full-flow NPT connections for easy seal maintenance without removing the reel from its mount
• Enclosed cartridge-style spring motor is removable for maintenance; precision coil spring factory-tuned for application-matched performance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for industrial, commercial, and fleet maintenance systems requiring two independent hose connections from a single mounting footprint.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling and hose reel mounting requirements. Shut off and depressurize all fluid supply lines before connecting or servicing this reel. Verify that the mounting surface can support the combined weight of the reel and loaded hose. Follow applicable facility and local codes for fluid line connections and overhead or wall-mounted equipment.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Length (per reel): 25 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Base Material: Steel
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 60 pounds
• UPC: 674255712218

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LPL-425-425
