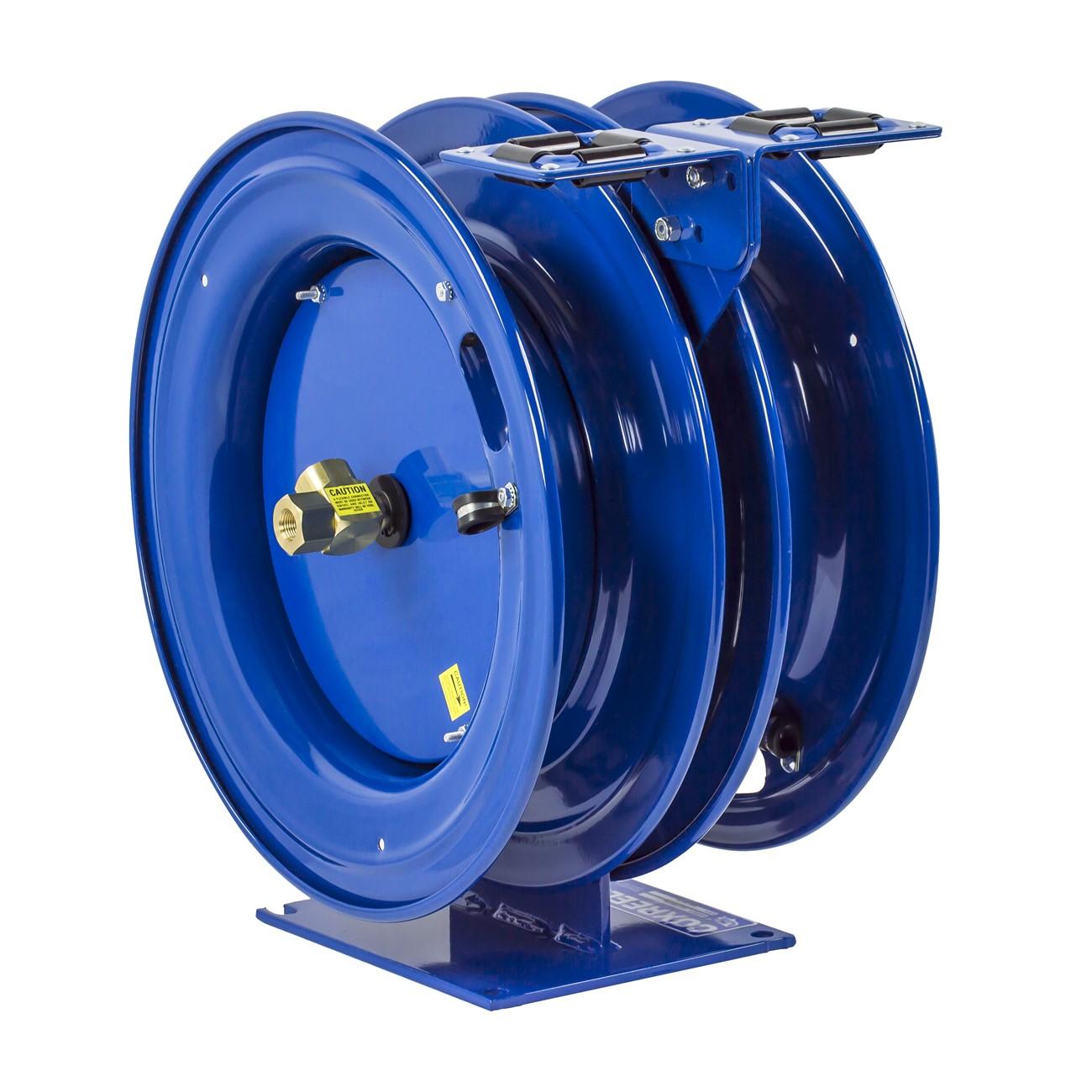

Coxreels C-LPL-350-350 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-LPL-350-350 is a dual-reel, spring-driven combination hose reel assembly designed for trade professionals who need two fluid sources from a single compact mounting footprint. Built on the C Series platform, this unit houses two independently operating reels on one steel base, making it well suited for tight workspaces where running separate mounts is not practical. The enclosed cartridge-style spring motor is factory-tuned and precision-matched to the application for consistent retraction performance over a long service life. A two-path external fluid swivel machined from solid brass provides full-flow NPT connections and is accessible without removing the reel from its mount.

This combination reel is commonly installed in automotive service bays, fleet maintenance facilities, industrial shops, and vehicle-mounted service units where two hose lines must be managed simultaneously. The assembly suits applications involving air, light oil, water, or other compatible fluids delivered through 3/8 inch ID hose. Each reel operates independently, so one line can be deployed or retracted without affecting the other. Licensed service technicians and shop mechanics are the primary installers of this type of equipment.

Key Features

• Two independently operating spring-driven reels on a single compact steel base with one mounting pattern
• Machined solid brass two-path external fluid swivel with full-flow NPT ports — serviceable without dismounting the reel
• Enclosed, lubricated cartridge motor is removable for maintenance without disassembling the full unit
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm adjustable for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination reel for industrial and commercial service environments requiring two independent hose lines from a single mounting base. Also available in air hose and electrical cord combination configurations within the C Series.

Installation Notes

Installation is typically performed by qualified service technicians or maintenance professionals familiar with fluid distribution systems. Shut off all fluid supply lines and relieve pressure in the system before mounting or connecting hoses. Secure the base to a structural surface capable of supporting the assembled weight of the reel plus loaded hose. Consult applicable local codes and the manufacturer documentation for mounting hardware requirements and recommended hose ratings.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Base Material: Steel (1/4 inch expanded pedestal, single piece, no-weld construction)
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 64 pounds
• UOM: Each
• UPC: 674255712157

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LPL-350-350
