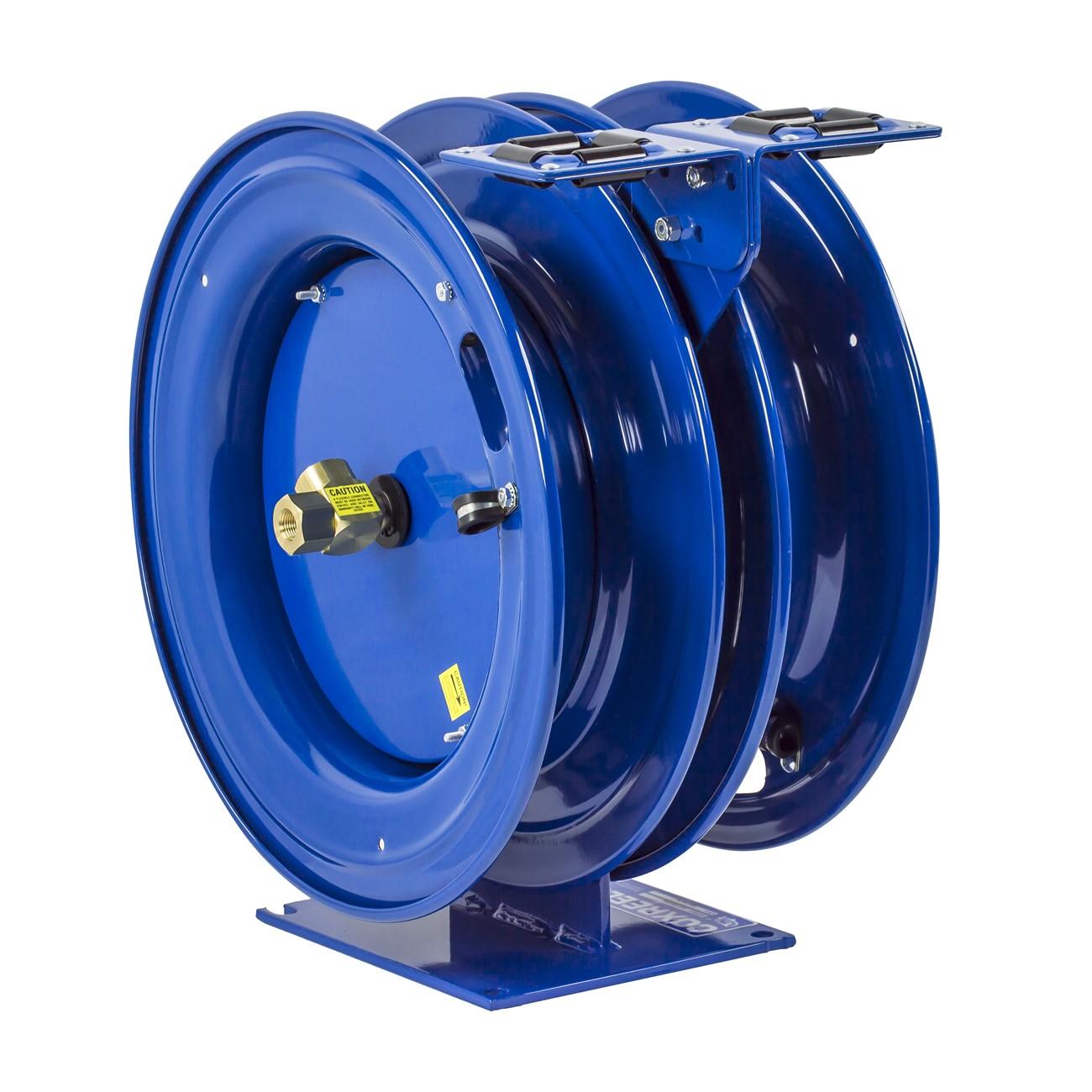

Coxreels C-LPL-335-335 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-LPL-335-335 is a dual combination spring-driven hose reel assembly that integrates two independent hose reels into one compact, single-mount unit. Designed for trade professionals who need to run two fluid sources from a single location without sacrificing floor or wall space, this C Series reel features a 3/8 inch inner diameter hose path and accommodates 35 feet of hose per reel. Each reel operates independently using a precision coil spring motor factory-tuned to the application. The assembly ships as a single unit weighing 60 pounds and mounts on one base pattern, making it well suited for service bays, equipment rooms, and commercial vehicle installations.

The C-LPL-335-335 fits residential and commercial service environments where two hose drops are required in a confined space. Typical applications include dual-fluid service bays, lube shops, and industrial maintenance areas where air, water, oil, or other compatible media must be dispensed from adjacent points. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of layout configurations. Each reel handles its assigned line independently, eliminating the need for two separate mounting footprints.

Key Features

• Two-reel combination assembly on a single mounting base, each reel operates independently
• External dual fluid path with machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for safe field maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chipping and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings
• Solid one-piece steel base with support post, no-weld construction for maximum stability

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for trade and industrial service applications requiring two independent hose reels on a single mounting assembly.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid distribution systems and applicable codes. Shut off all fluid supply lines and relieve system pressure before connecting or disconnecting hose lines. Verify that the mounting surface and fastener pattern can support the assembly weight of 60 pounds plus the weight of loaded hose under tension. The multi-position guide arm should be secured to the chosen mounting orientation before placing reels into service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Length Per Reel: 35 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Base Material: Solid one-piece steel
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 60 pounds
• UOM: Each
• UPC: 674255712140

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LPL-335-335
