Coxreels C-LPL-325-325 Dual Hose Reel 3/8 in 25 Ft

Product Description

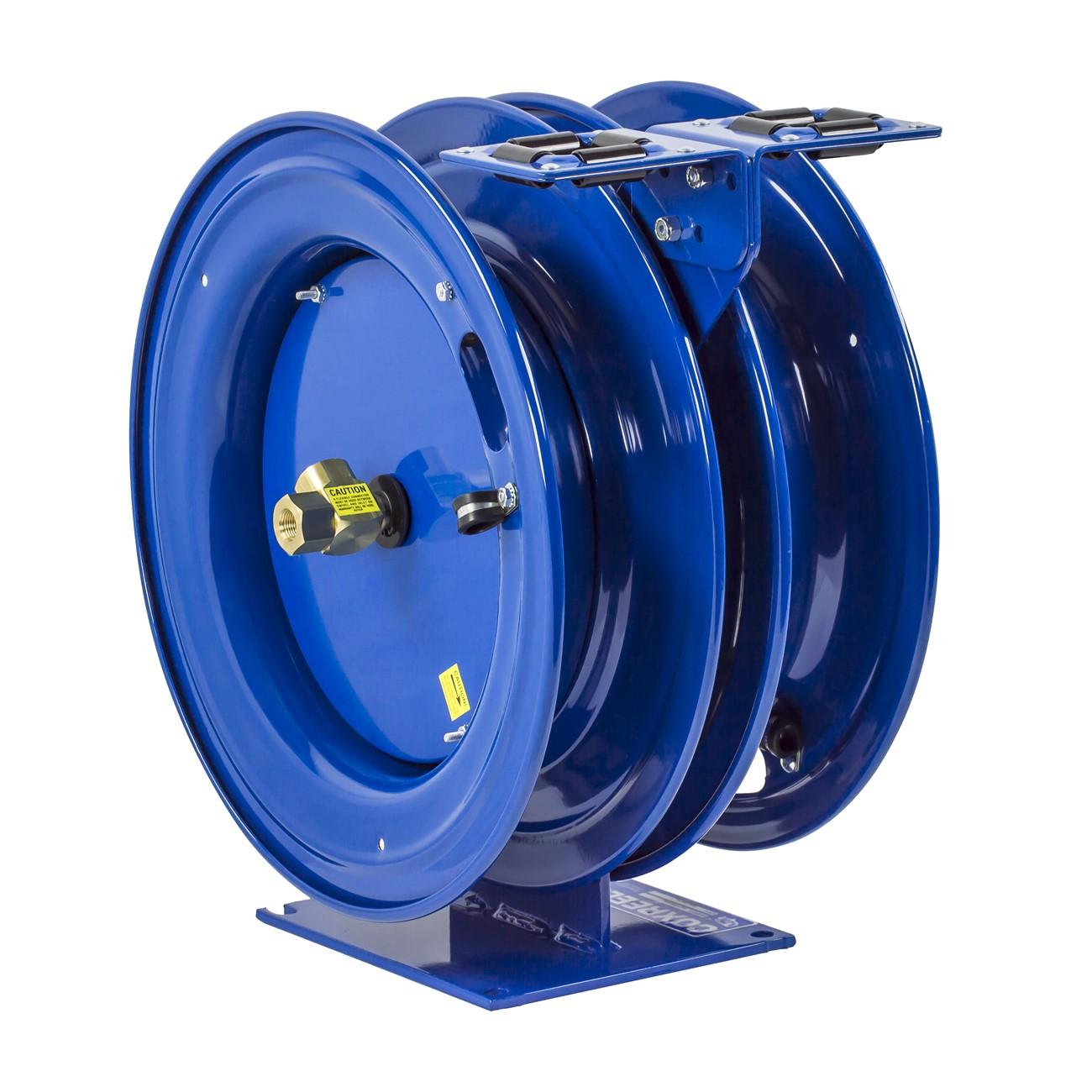

The COXREELS C-LPL-325-325 is a C Series combination spring driven dual hose reel that integrates two independent hose reels into a single compact assembly. Designed for applications where two fluid sources are required in tight spaces, this unit uses a single mounting base for stability and simplified installation. The spring driven retraction motor is precision-tuned at the factory and enclosed in a removable cartridge for straightforward field maintenance. Each reel operates independently, making this assembly well suited for trade professionals who need dual-line access without doubling the footprint.

This combination hose reel is built for industrial and commercial service environments where space efficiency and dual-source fluid delivery are priorities. Typical applications include automotive service bays, manufacturing facilities, fleet maintenance operations, and mobile service vehicles. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of job site setups.

Key Features

• Two-in-one design integrates dual hose reels on a single mounting base with independent operation for each reel
• Enclosed cartridge-style spring motor is pre-lubricated, removable without dismounting the reel, and factory-tuned for extended service life
• Machined solid brass 90-degree full-flow NPT swivel with external dual fluid path allows hose installation and seal maintenance without removing the reel from its mount
• Heavy duty CNC robotically spun and ribbed discs with rolled edges provide strength, hose protection, and operator safety
• Solid one-piece 1/4 inch steel base with no-weld expanded pedestal design for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS C Series combination hose reel line, accommodating 3/8 inch inner diameter hose up to 25 feet in length. Also available in air hose and electrical cord combination configurations within the same series.

Installation Notes

Installation is typically performed by a qualified millwright, fleet technician, or mechanical contractor. Power down or depressurize all fluid lines before mounting or servicing this reel. Ensure the mounting surface can support the loaded weight of the reel and hose, and follow applicable OSHA and local facility codes for overhead or vehicle-mounted installations. Use appropriately rated NPT fittings matched to the fluid type and operating pressure of the application.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Base Material: One-piece steel, 1/4 inch
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 60 pounds
• UPC: 674255712119

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LPL-325-325
