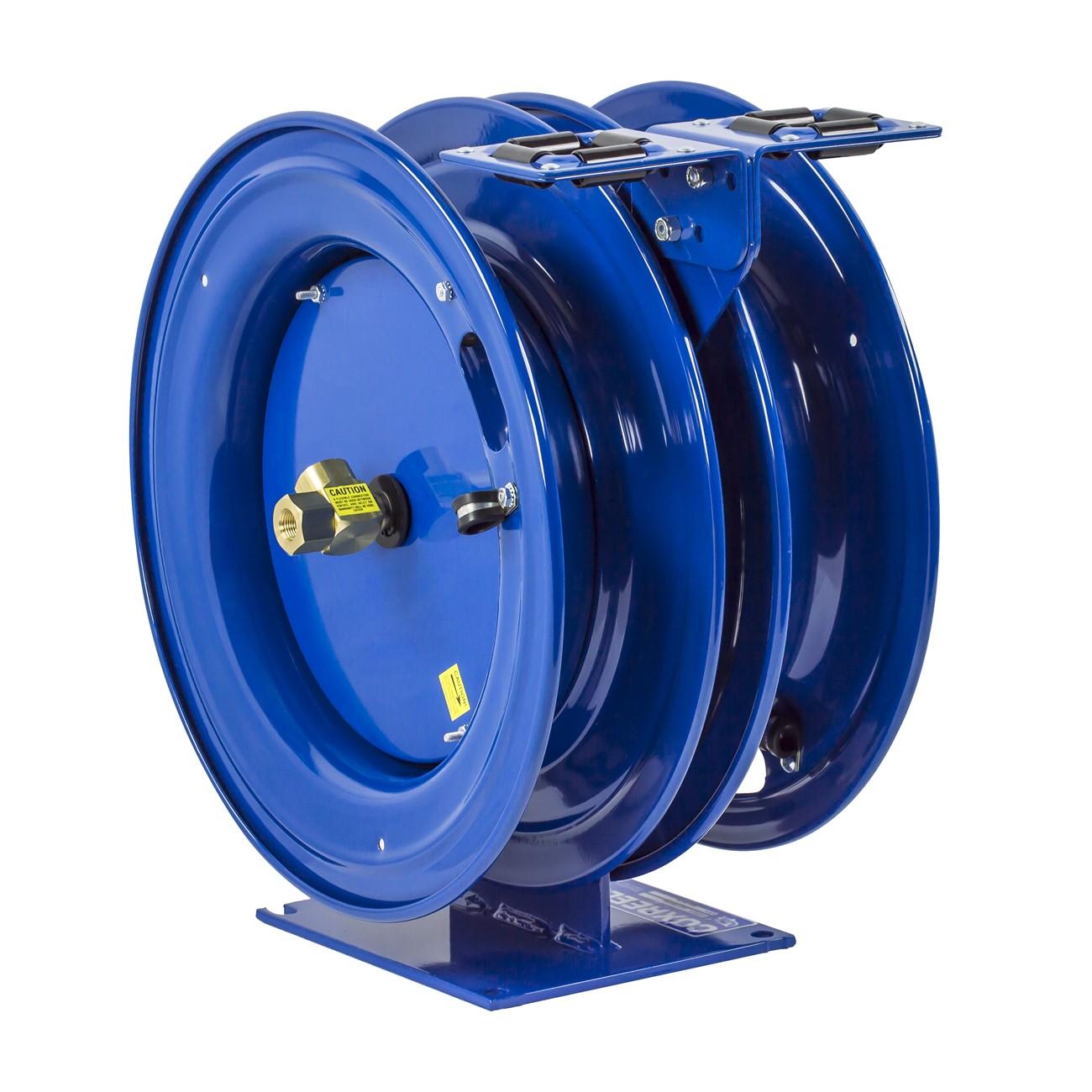

Coxreels C-LPL-135-135 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-LPL-135-135 is a C Series combination spring-driven hose reel that integrates two independent reels into a single compact assembly. Designed for applications where two fluid or air sources are required but space is limited, this unit features a shared single-mounting base that provides stability while keeping the footprint minimal. The spring-driven retraction mechanism uses a precision coil spring that is factory tuned and matched to the application for consistent performance and long service life. A two-path external fluid swivel with machined solid brass 90-degree full-flow NPT fittings allows for straightforward seal maintenance and hose installation without removing the reel from its mount. Licensed trades and industrial service technicians rely on this design for demanding dual-hose service points.

The C-LPL-135-135 suits residential and light commercial service environments where two simultaneous fluid or air connections are needed from one mounting location. Common install scenarios include service bays, equipment rooms, and fleet maintenance facilities where wall, floor, ceiling, or vehicle mounting may be required. The multi-position guide arm accommodates all four mounting orientations, making this reel adaptable across a variety of work environments. Each reel in the assembly operates independently, so technicians can manage two separate lines without interference.

Key Features

• Dual-reel combination in one assembly — two independent reels sharing a single solid steel mounting base with no welds for maximum stability
• Two-path external fluid swivel with machined solid brass 90-degree full-flow NPT connection for easy seal service without dismounting the reel
• Enclosed cartridge-style spring motor is fully lubricated and removable for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit option for dual-hose spring-driven reel applications requiring a 1/4 inch ID hose path up to 35 feet in length. This series is also available in air hose and electrical cord combination configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid distribution systems. Depressurize and isolate all supply lines before mounting or connecting hoses to the reel. Mounting hardware must be appropriate for the surface type and rated to support the assembled weight of the unit and hose. Refer to applicable facility codes and manufacturer guidelines for proper swivel torque and hose routing clearances.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 35 feet
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Base Material: Solid one-piece steel
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 60 pounds
• UPC: 674255712096

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LPL-135-135
