Coxreels C-LPL-125-125 Dual Spring Driven Hose Reel 25 Ft

Product Description

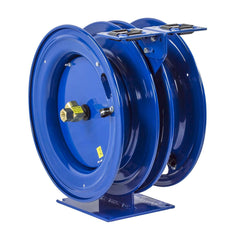

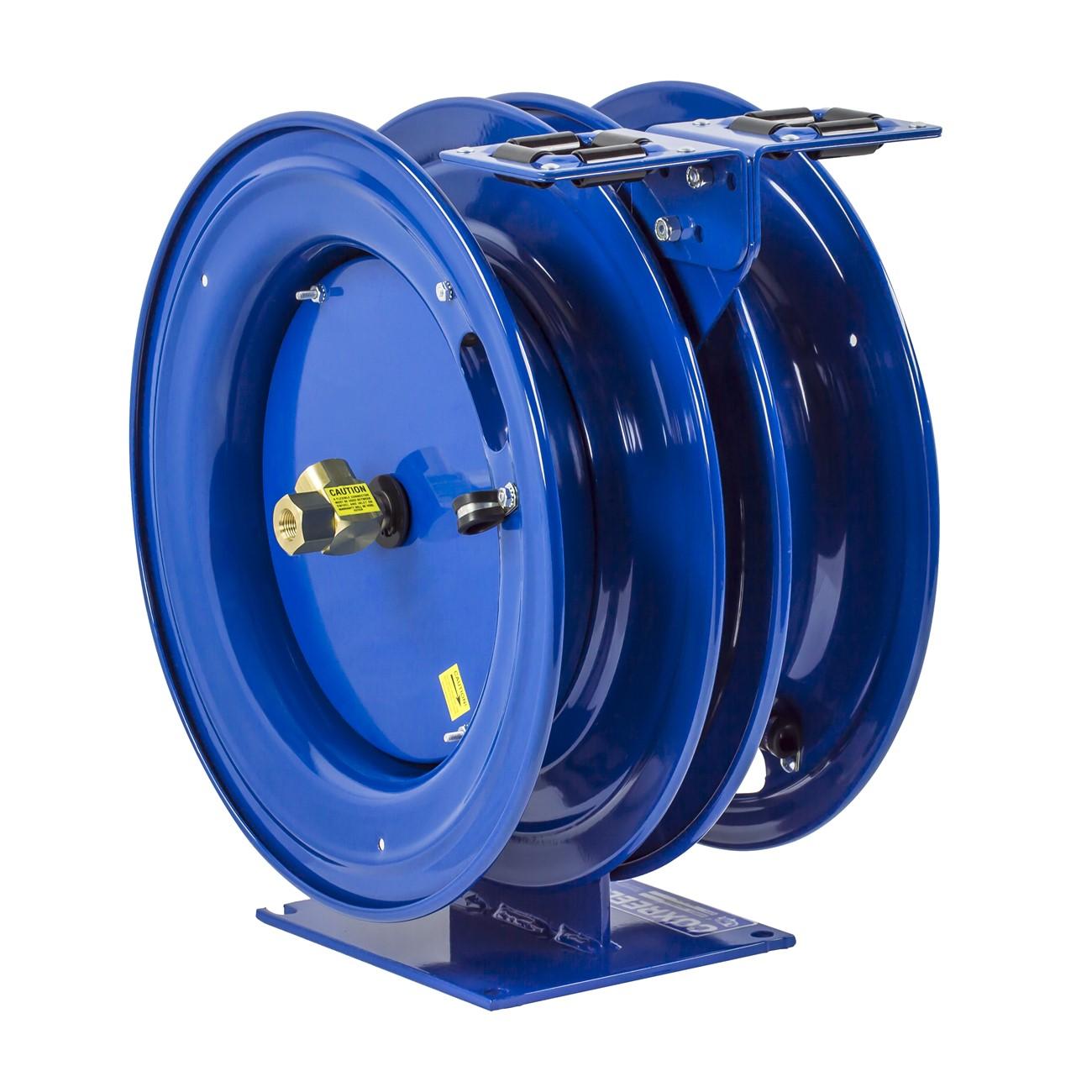

The COXREELS C-LPL-125-125 is a C Series combination spring-driven hose reel designed to function as two independent reels in a single compact assembly. Each reel operates on its own spring-driven cartridge motor and shares one mounting base, making this unit well-suited for applications where dual fluid sources are required in tight spaces. The unit features a machined solid brass 90-degree full-flow NPT swivel with an external fluid path on each reel, supporting straightforward seal maintenance without removing the reel from its mount. At 60 pounds, the assembly is built around CNC robotically spun and ribbed steel discs with rolled edges for operator safety and long-term durability. Licensed HVAC, plumbing, and mechanical service technicians will find this reel appropriate for professional shop and field installations.

The C-LPL-125-125 is intended for applications that require two hose sources from a single mounting footprint, such as dual-fluid service bays, maintenance shops, fleet service vehicles, and industrial work cells where space is limited. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, providing flexibility across a range of install scenarios. The single expanded pedestal base uses a solid one-piece steel construction with no welds, offering a stable platform in high-use environments. This series is also available in air hose and electrical cord combinations for mixed-source applications.

Key Features

• Dual independent spring-driven reels share a single compact mounting base for two-source applications
• External fluid path brass 90-degree full-flow NPT swivel on each reel allows seal service without dismounting
• Enclosed lubricated cartridge motor is removable for safe maintenance; precision coil spring factory-tuned per application
• CNC robotically spun ribbed discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish provides chip resistance and rust inhibition; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style dual combination hose reel for professional service environments requiring two independent hose sources from a single mounting assembly.

Installation Notes

Installation should be performed by a qualified mechanic or industrial service technician familiar with fluid delivery systems and appropriate mounting hardware. Shut off and depressurize all fluid sources before connecting or servicing hoses on either reel. Verify that the mounting surface is capable of supporting the combined weight of the unit and loaded hoses. Consult applicable OSHA and local mechanical codes for compressed-air or fluid-line installation requirements in your jurisdiction.

Technical Specifications

• Hose Inside Diameter: 0.25 inches
• Hose Outside Diameter: 0.5 inches
• Hose Length: 25 ft
• Drive Type: Spring driven
• Swivel Material: Machined solid brass
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: Single piece steel, no weld
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 60 pounds
• UPC: 674255712089

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LPL-125-125
