Coxreels C-LP-425-425 Dual Spring Driven Hose Reel

Product Description

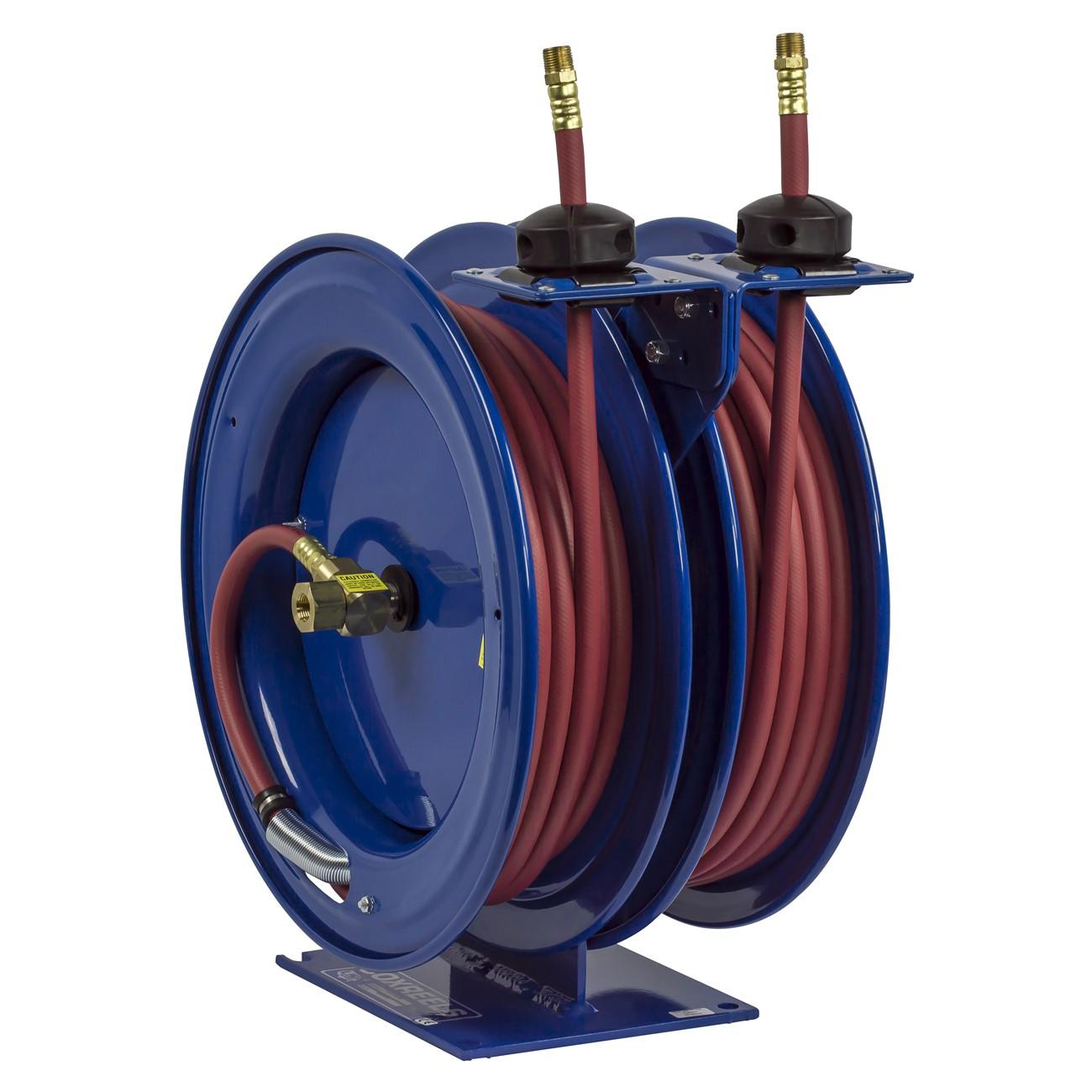

The COXREELS C-LP-425-425 is a dual-circuit, spring-driven combination hose reel built for trades and industrial applications where two fluid sources are needed in a confined space. The assembly combines two independent reels on a single steel mounting base, allowing each reel to operate separately without requiring additional mounting footprint. The reel features a 1/2 inch inner diameter hose path, accepts hose up to 25 feet in length, and is constructed with heavy-duty steel throughout. A CPC powder coat finish resists chipping and rust for long service life in demanding environments. Licensed contractors and service technicians working in mechanical rooms, service bays, or fleet vehicles are the primary installers.

This combination reel is suited for applications where two pressurized fluid lines must be managed simultaneously and space is limited. Typical uses include delivering two separate fluid media, such as dual air lines or dual liquid circuits, from a single compact station. The single-base design reduces wall or floor space requirements compared to mounting two individual reels. The C-LP-425-425 is also available in air hose and electrical cord combination configurations, making it adaptable to a range of service scenarios in commercial and light industrial settings.

Key Features

• Two independent reels on one compact steel base — each operates separately for dual-source delivery
• External fluid path swivel machined from solid brass with full-flow NPT connections for easy seal maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for safe field maintenance; precision coil spring is factory tuned for application-matched performance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• 1/4 inch steel single-piece pedestal base with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit unit for dual-circuit spring-driven hose reel applications in commercial and light industrial service installations.

Installation Notes

Installation is typically performed by licensed mechanical contractors or experienced service technicians. Shut off all fluid supply lines and depressurize the system fully before mounting or connecting hose reel plumbing. Secure the steel base to a structural surface capable of supporting the reel weight and hose load. Consult applicable local mechanical codes and the manufacturer installation guide for swivel torque and mounting fastener requirements.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Number of Reels: 2 (combination assembly)
• Swivel Material: Solid brass
• Base Material: Steel
• Base Thickness: 1/4 inch
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 70 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LP-425-425
