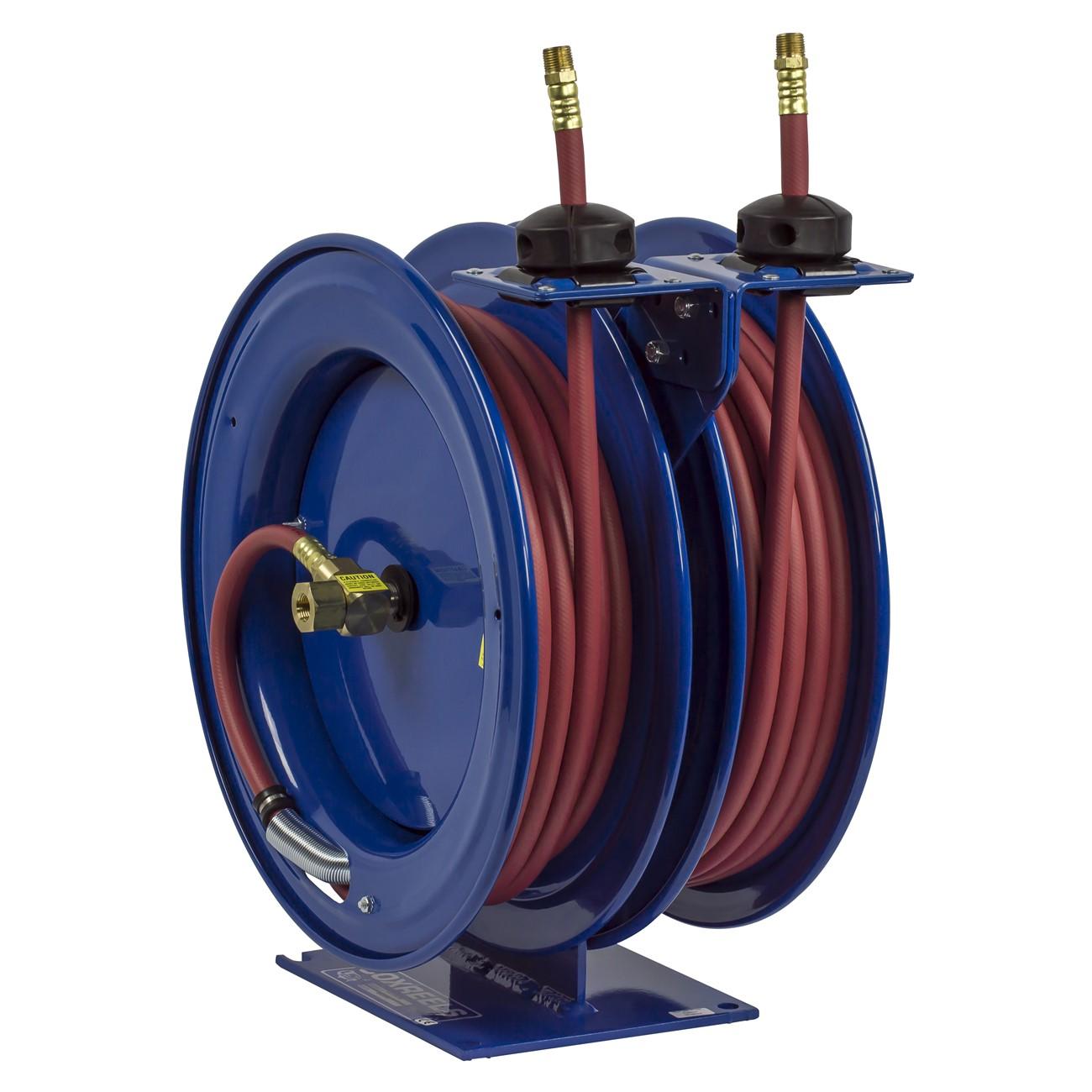

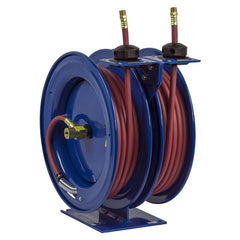

Coxreels C-LP-350-350 Dual Hose Reel 3/8 in 50 Ft Steel

Product Description

The COXREELS C-LP-350-350 is a C Series combination spring driven dual hose reel that integrates two independent reels into a single compact assembly. Designed for applications where two fluid or air sources are required in tight spaces, the unit features a solid one-piece steel base with a single mounting pattern for stability and simplified installation. Each reel operates independently and retracts automatically via a precision factory-tuned coil spring motor enclosed in a removable cartridge-style housing. The assembly weighs 78 pounds and measures 18.75 inches long by 14.25 inches wide by 20.5 inches tall, making it a substantial but space-efficient solution for dual-hose service points.

The C-LP-350-350 is suited for industrial, commercial, and fleet service environments where two hose sources must be deployed from a single mounting location. Typical applications include service bays, maintenance shops, and mobile service vehicles. The reel accommodates 3/8 inch inner diameter hose with a 5/8 inch outer diameter, rated for 50 feet of hose per reel. The unit is also available in air hose and electrical cord combination configurations, making the C Series adaptable across a range of trade service scenarios.

Key Features

• Dual-reel combination assembly with a single mounting base — each reel operates independently
• Enclosed cartridge-style spring motor is removable for maintenance without specialty tools
• Two external fluid path machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual hose reel solution for industrial and commercial service applications requiring two independent hose sources from a single mounting assembly. Consult COXREELS C Series documentation for approved hose specifications and pressure ratings.

Installation Notes

Installation is typically performed by a qualified maintenance technician or service professional. Shut off all fluid or air supply lines and depressurize the system completely before mounting or servicing the reel. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting — confirm that the mounting surface is rated for the combined weight of the unit and loaded hose. Follow applicable facility or vehicle safety codes when routing hose and securing supply connections.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Length per Reel: 50 feet
• Drive Type: Spring driven
• Base Material: Steel
• Swivel Material: Machined solid brass
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 78 pounds
• Finish: CPC powder coat
• UPC: 674255712041

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LP-350-350
