Coxreels C-LP-335-335 Dual Hose Reel 3/8 in 25 Ft Steel

Product Description

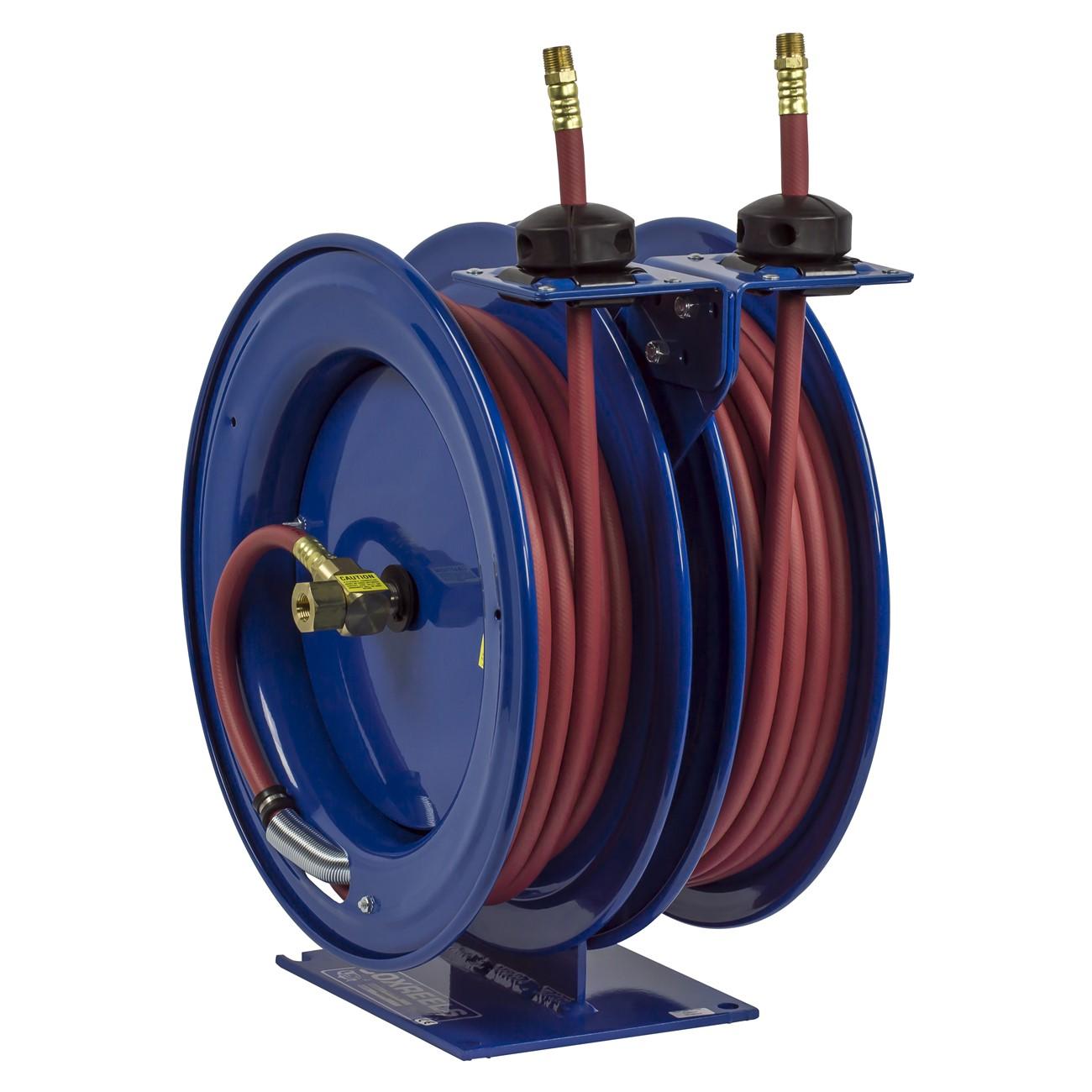

The COXREELS C-LP-335-335 is a C Series combination spring driven dual hose reel that mounts two independent reels on a single compact base assembly. Designed for applications where two fluid sources must be available in a confined space, each reel operates independently while sharing one mounting footprint. The unit features a 3/8 inch inner diameter hose path and accommodates 25 feet of hose per reel. Construction centers on heavy duty CNC robotically spun steel discs and a solid one-piece steel base with support post. Licensed tradespeople in industrial, fleet, and shop environments are the primary installers.

The C-LP-335-335 suits workshop, garage, fleet maintenance, and light industrial settings where two simultaneous fluid delivery lines are needed without doubling the mounting real estate. The combination design makes it well suited for scenarios pairing two air lines, two fluid lines, or an air and fluid source at a single service point. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, broadening the range of viable install locations.

Key Features

• Dual independent spring driven reels on one compact single-base assembly
• Two external fluid path brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Lubricated enclosed cartridge-style spring motor is removable for field maintenance; precision coil spring factory tuned for extended service life
• Heavy duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual hose reel for trade and industrial applications requiring two independent spring driven hose lines from a single mounting base; also available in air hose and electrical cord combination configurations within the C Series.

Installation Notes

Installation is typically performed by qualified mechanics, fleet technicians, or industrial maintenance personnel. Shut off and depressurize all fluid lines before mounting or connecting hoses to the reel assembly. The single-base pedestal design requires secure fastening to a wall, floor, ceiling, or vehicle surface rated for the combined load of the unit and filled hoses. Consult applicable OSHA and facility safety standards for hose reel mounting requirements in your environment.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Length (per reel): 25 feet
• Drive Type: Spring driven
• Material: Steel
• Base Design: Solid one-piece steel expanded pedestal, no weld
• Swivel Material: Machined solid brass
• Weight: 69 pounds
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• UPC: 674255712027

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LP-335-335
