Coxreels C-LP-325-325 Dual Spring Driven Hose Reel 25 Ft

Product Description

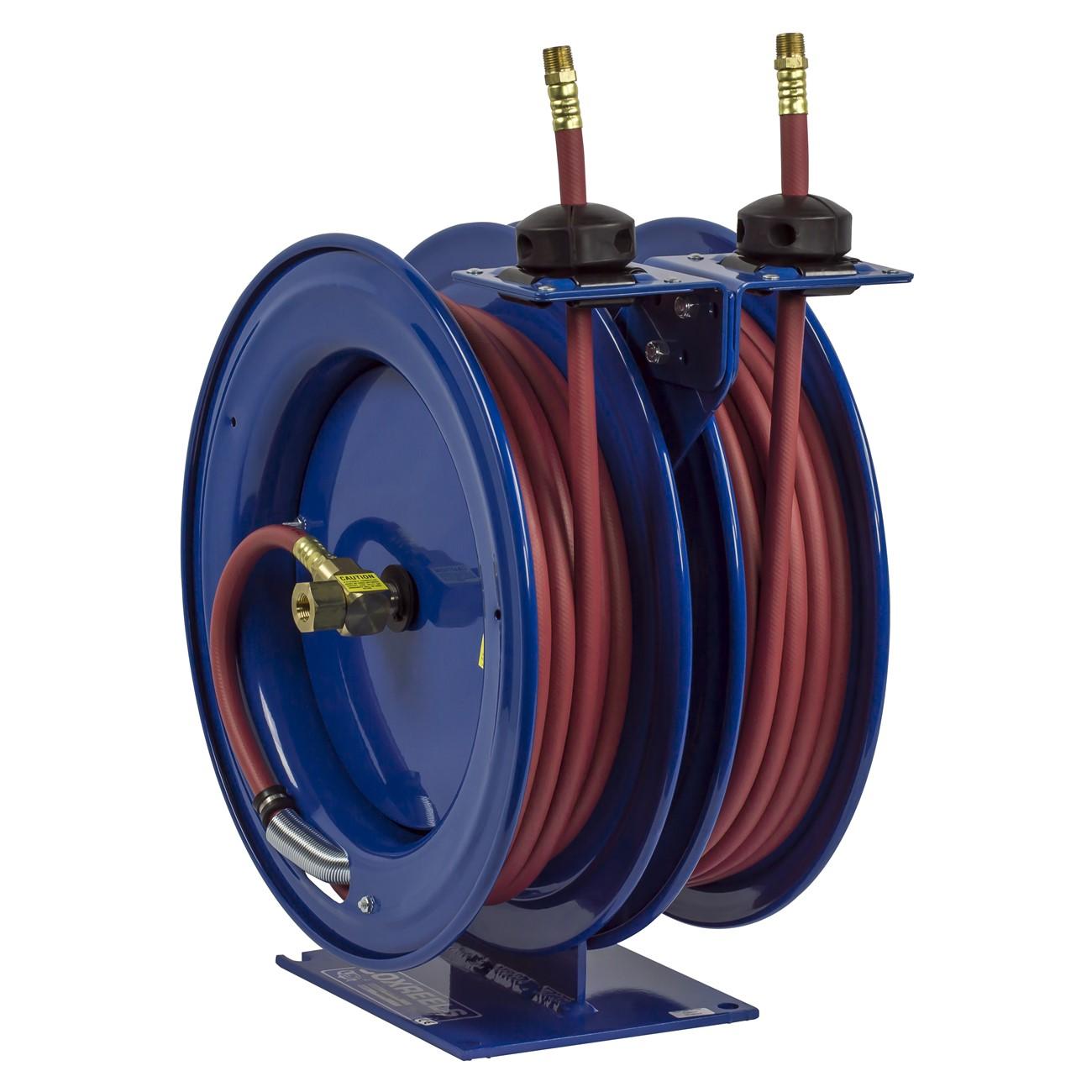

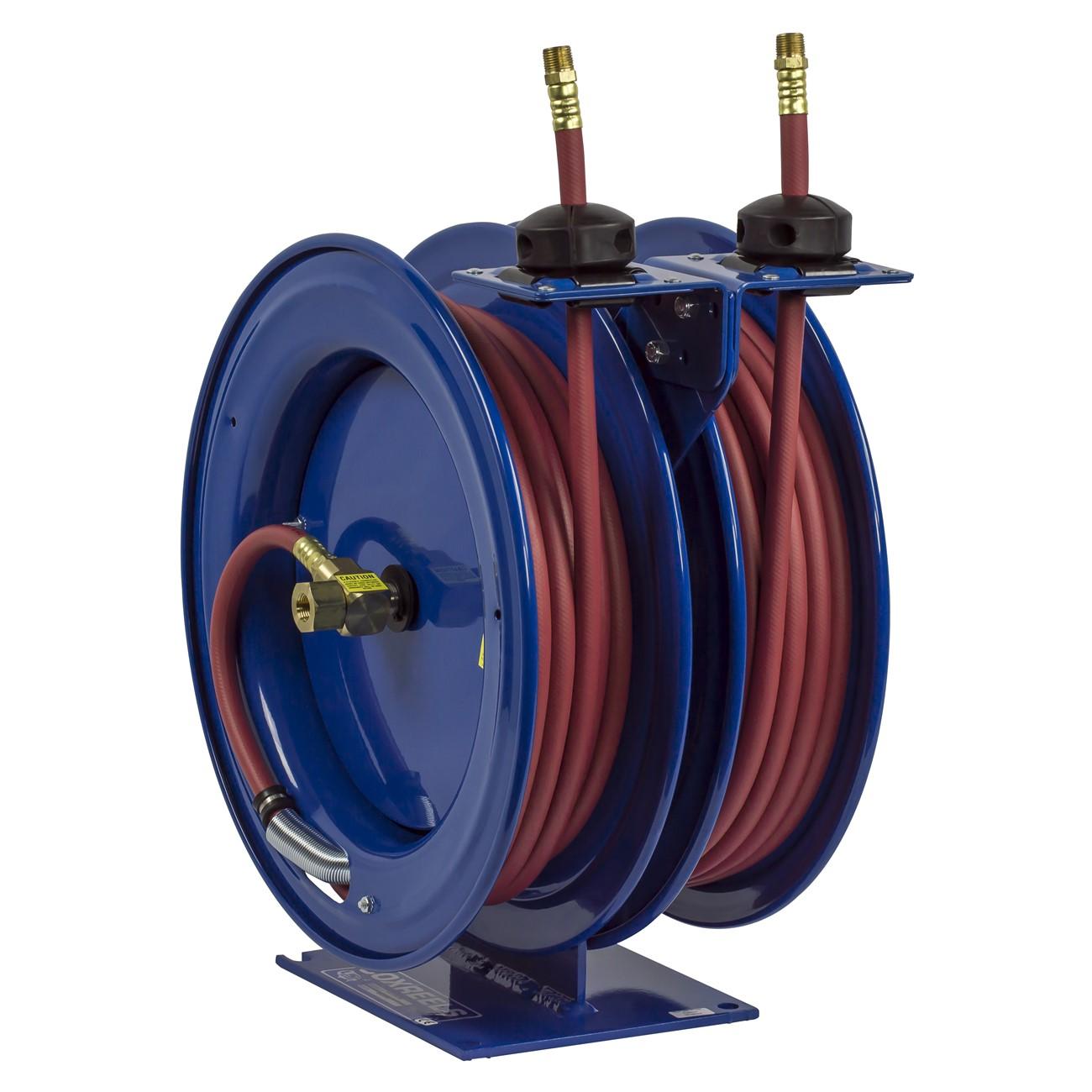

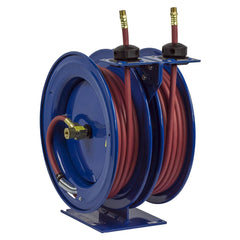

The COXREELS C-LP-325-325 is a C Series combination spring-driven hose reel designed as a dual-reel assembly in a single compact unit. It houses two independent spring-driven reels on one mounting base, allowing two fluid or air sources to be deployed from one installation point. The 3/8 inch inner diameter hose path and solid brass 90-degree full-flow NPT swivel support consistent flow with minimal pressure drop. At 67 pounds, the assembly is built from steel with CNC robotically spun and ribbed discs and a one-piece steel pedestal base. Plumbers, HVAC technicians, and industrial service professionals install this reel where space is limited but dual-source access is required.

The C-LP-325-325 is suited for commercial and industrial applications where two separate fluid or air lines must be routed from a single mounting location. Its compact footprint makes it a practical choice for service vehicles, shop floors, mechanical rooms, and maintenance bays. Each reel operates independently, so one line can be extended or retracted without affecting the other. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, adding installation flexibility across job sites and fixed facilities.

Key Features

• Dual-reel combination assembly: two independent spring-driven reels on a single mounting base
• Machined solid brass 90-degree full-flow NPT swivel with external fluid path for easy seal maintenance without removing the reel from its mount
• Lubricated enclosed cartridge-style spring motor is removable for safe field maintenance; precision coil spring factory-tuned for application
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece 1/4 inch steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for industrial, commercial, and vehicle-mounted fluid and air delivery systems requiring two independent hose sources from a single assembly.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or compressed air plumbing systems. Shut off all fluid and air supply lines and depressurize the system before mounting or connecting hoses. Verify that the mounting surface can support the combined weight of the reel and loaded hose before securing the base. Reference applicable local codes and manufacturer guidelines for NPT fitting torque and hose compatibility.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Length: 25 ft
• Construction Material: Steel
• Swivel Type: Solid brass 90-degree full-flow NPT
• Drive Type: Spring driven
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 67 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LP-325-325
