Coxreels C-LP-135-135 Dual Spring Hose Reel 1/4 in 35 Ft Steel

Product Description

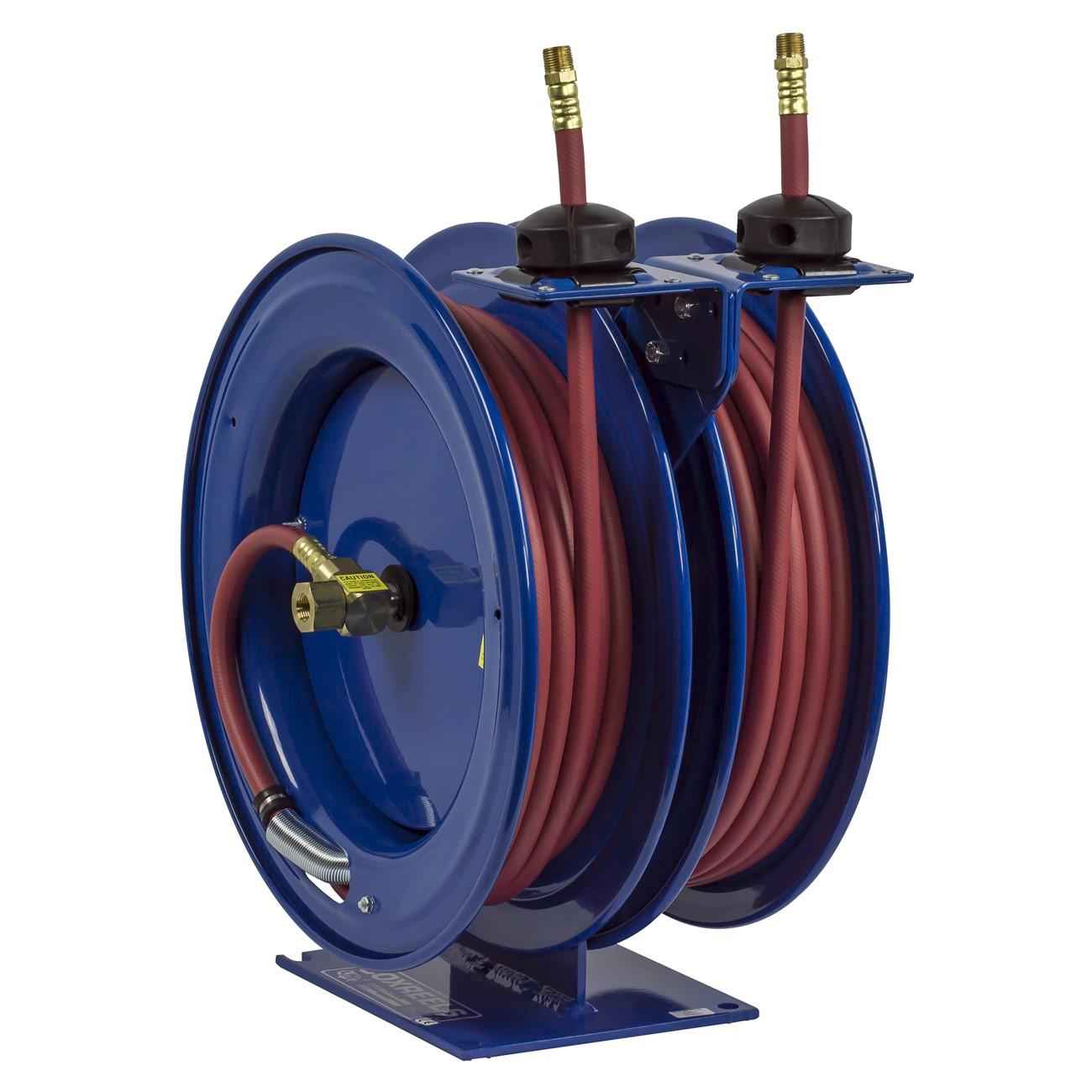

The COXREELS C-LP-135-135 is a C Series combination spring driven hose reel that integrates two independent hose reels into one compact, single-base assembly. Designed for applications where two fluid sources are required in tight spaces, this unit delivers reliable dual-hose management without requiring duplicate mounting hardware. The spring driven rewind mechanism uses a precision coil spring factory tuned for the specific application load, extending service life. A machined solid brass 90-degree full-flow NPT swivel with external fluid path allows seal maintenance and hose changes without removing the reel from its mount. At 67 pounds, the unit is built for fixed installation in demanding shop, fleet, or industrial service environments.

The C-LP-135-135 suits applications where two separate fluid lines must be managed from a single mounting point and where floor space or wall space is limited. Typical installations include service bays, maintenance shops, fleet service facilities, and mobile service vehicles. Each reel in the dual assembly operates independently, allowing technicians to deploy one or both hoses as the job demands. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable to a wide range of fixed and mobile service setups.

Key Features

• Dual hose reel combination in one compact assembly with a single mounting base and one mounting pattern
• External fluid path brass 90-degree full-flow NPT swivel allows seal maintenance and hose replacement without dismounting the reel
• Enclosed cartridge-style spring motor is removable for safe maintenance; precision coil spring is factory tuned to application
• Heavy duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as a dual combination spring driven hose reel for use with two independent fluid supply lines; also available in air hose and electrical cord combination configurations within the C Series line.

Installation Notes

Installation is typically performed by a qualified technician or millwright familiar with compressed fluid systems and reel mounting hardware. Shut off and depressurize all fluid supply lines before connecting or servicing the swivel or hose fittings. The single expanded pedestal base requires secure anchoring to a structural surface appropriate for the combined weight of the unit and loaded hoses. Consult applicable facility codes and manufacturer guidelines for mounting fastener sizing and surface load ratings.

Technical Specifications

• Hose Inner Diameter: 1/4 inches
• Hose Length: 35 feet
• Drive Type: Spring driven
• Disc Material: Steel
• Base Material: Steel
• Swivel Material: Machined solid brass
• Swivel Type: 90-degree full-flow NPT external fluid path
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 67 pounds
• UPC: 674255711969

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LP-135-135
