Coxreels C-LP-125-125 Dual Spring Driven Hose Reel Steel

Product Description

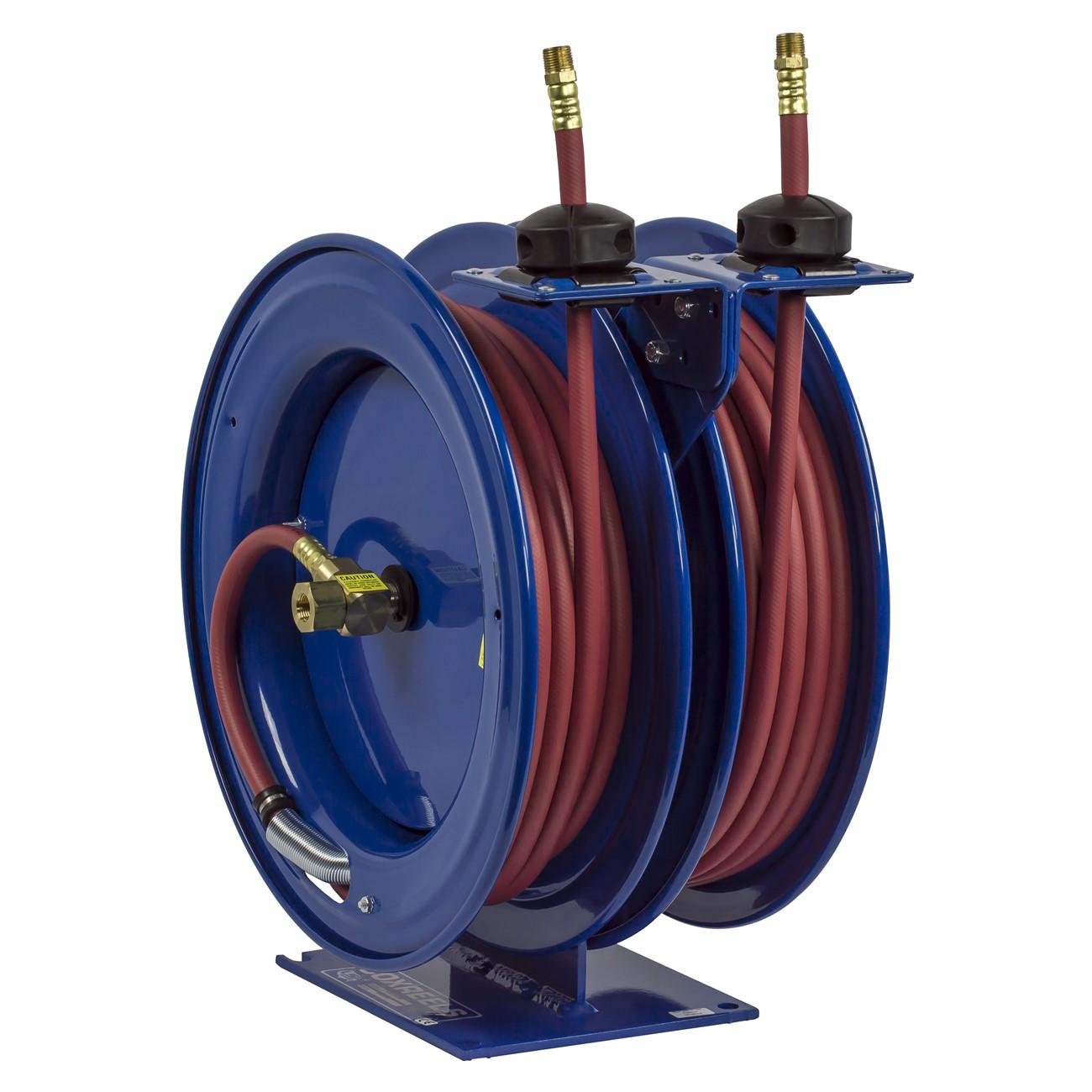

The COXREELS C-LP-125-125 is a C Series combination spring-driven hose reel that houses two independent reels in a single compact assembly. Designed for applications where two fluid sources are required in a space-constrained environment, this unit features a 1/4 inch ID hose path and accommodates 25 feet of hose per reel. The dual-reel design mounts on one shared steel base, reducing footprint without sacrificing function. Each reel operates independently through its own cartridge-style spring motor. Licensed plumbers, HVAC technicians, and industrial service contractors are the primary installers of this type of equipment in shop, fleet, and service bay environments.

The C-LP-125-125 is suited for professional service environments where two separate fluid or air sources must be delivered from a single mounting point. Typical installations include automotive service bays, industrial maintenance facilities, fleet service garages, and similar commercial or light industrial settings. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable to a wide range of layout requirements.

Key Features

• Dual-reel combination assembly — two independent reels on one compact mounting base with a single mounting pattern
• Machined solid brass 90-degree full-flow NPT swivel with external fluid path for simple seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for field maintenance; precision coil spring factory-tuned for long service life
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, hose protection, and operator safety
• Sturdy one-piece steel base with support post, no-weld construction, and multi-position guide arm adjustable for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for professional trade and industrial service applications requiring two independent hose sources from a single mounting assembly. This series is also available in air hose and electrical cord combinations.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid distribution systems. Shut off and depressurize the supply line before connecting or disconnecting hose reels. Secure the mounting base to a structurally sound surface capable of supporting the reel weight plus hose and fluid load. Refer to applicable facility codes and manufacturer instructions for mounting hardware and connection requirements.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Hose Outside Diameter: 1/2 inch
• Hose Length: 25 feet per reel
• Reel Configuration: Dual combination, two independent spring-driven reels
• Drive Type: Spring driven
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 66 pounds
• UPC: 674255711945

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LP-125-125
