Coxreels C-L350L-5016L-X Combination Air Electric Hose Reel

Product Description

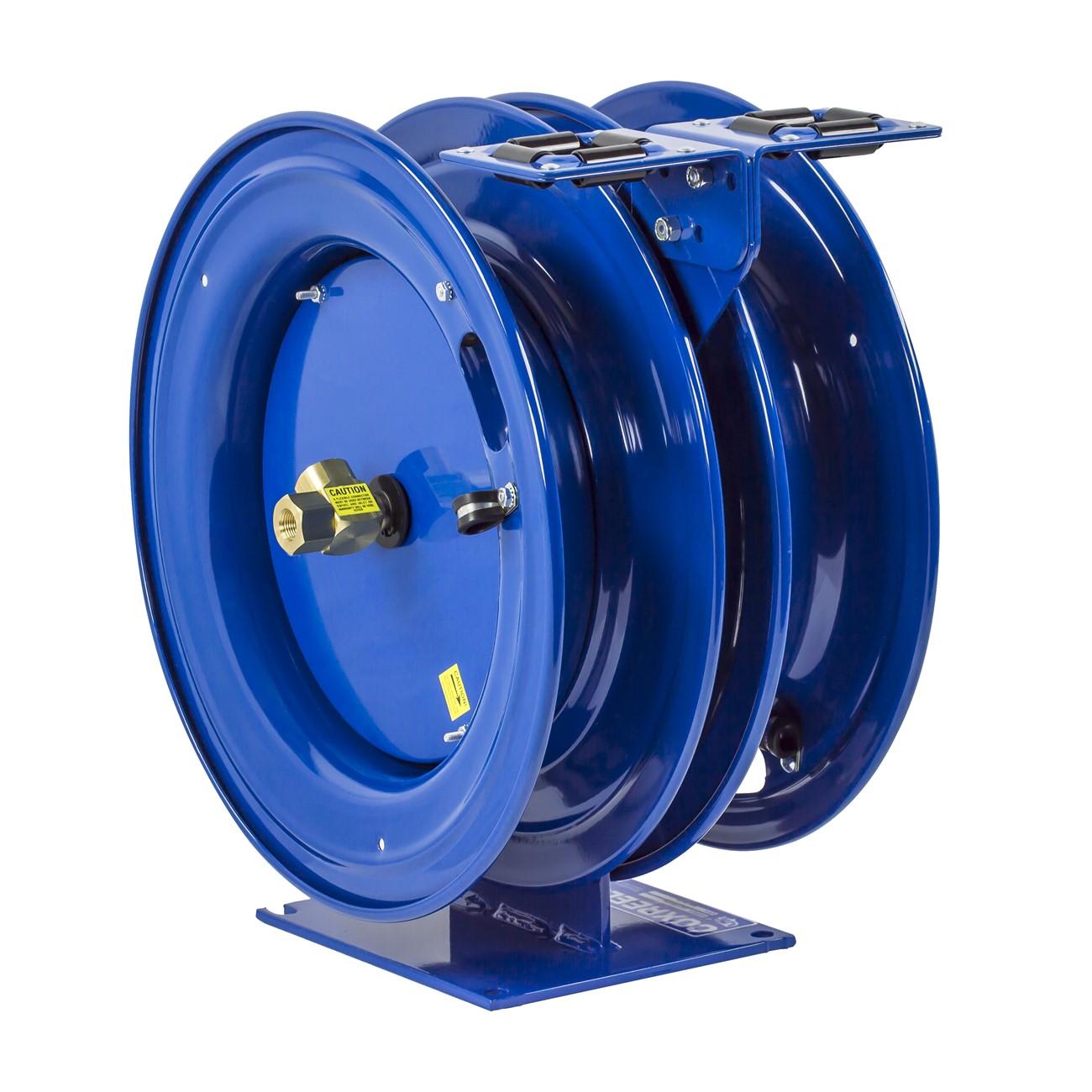

The COXREELS C-L350L-5016L-X is a C Series combination spring-driven hose reel that integrates two reels into one compact assembly. It handles both an air hose and an electrical cord from a single mounting base, making it well suited for service bays, fleet maintenance shops, and industrial work areas where two sources are required and floor space is limited. The unit features a 3/8 inch inner diameter and 5/8 inch outer diameter hose path, weighs 71 pounds, and is built around a sturdy one-piece steel base. Licensed contractors and shop technicians install this reel in fixed or vehicle-mount configurations.

This reel is designed for use in commercial and industrial environments where simultaneous air and electrical delivery is required from one station. Typical applications include automotive service facilities, manufacturing floors, and utility vehicles. The dual-reel design allows each reel to operate independently while sharing a single pedestal mount, reducing the footprint compared to two separate assemblies. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of facility layouts.

Key Features

• Dual-reel combination design delivers air and electrical supply from one compact, single-base assembly
• Two external fluid path zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is removable for maintenance; precision coil spring is factory tuned to the application
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for air and electrical cord combination applications on fixed shop equipment and service vehicles.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air plumbing and low-voltage electrical wiring. Shut off the air supply and de-energize the electrical circuit before mounting or servicing the reel. Secure the one-piece steel base to a surface rated for the assembly weight using appropriate hardware. Consult applicable OSHA, NEC, and local codes when routing electrical cord through the reel assembly.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 71 pounds
• Base Material: Steel
• Drive Type: Spring-driven
• UPC: 674255726338

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350L-5016L-X
