Coxreels C-L350L-5012L-X Combo Air Electric Hose Reel

Product Description

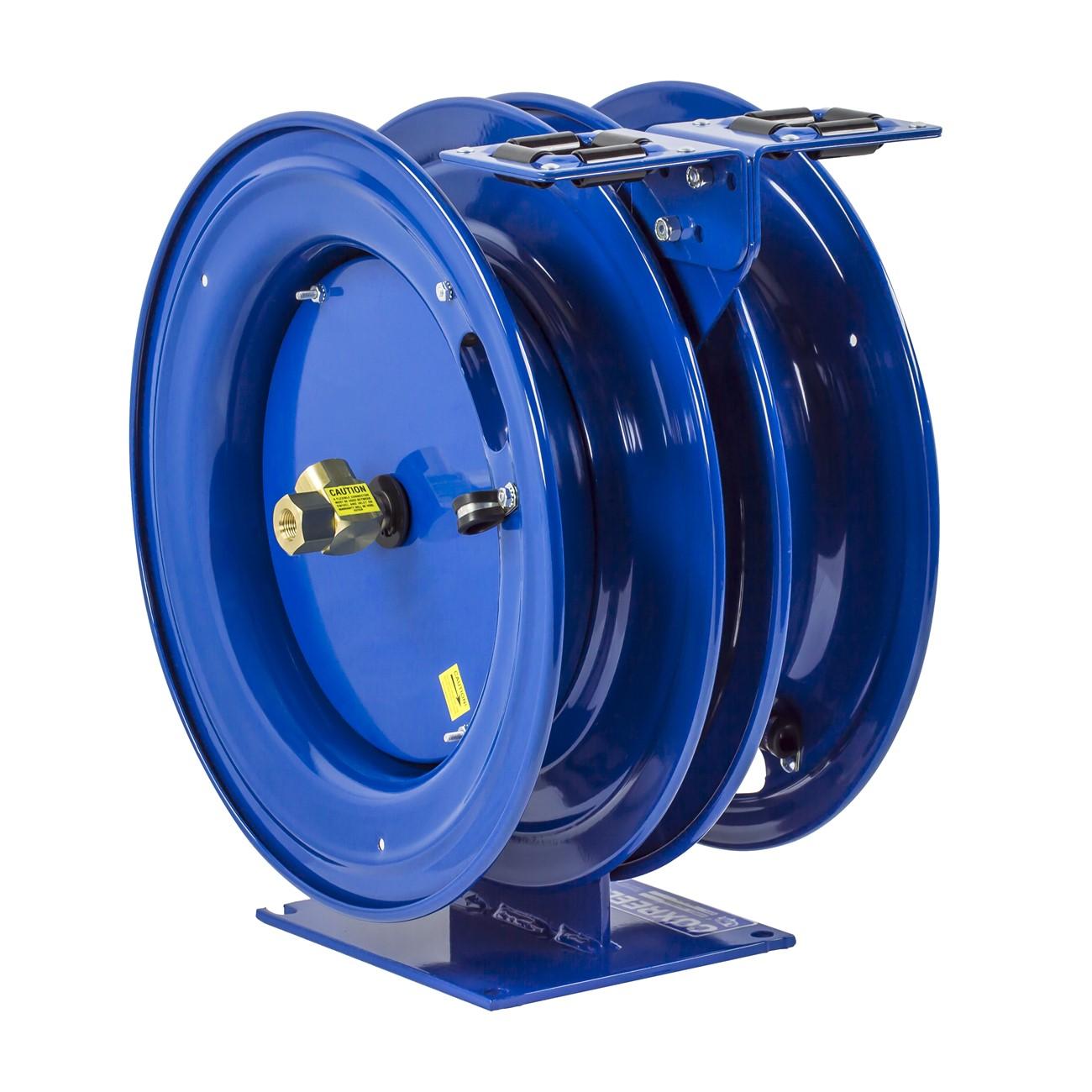

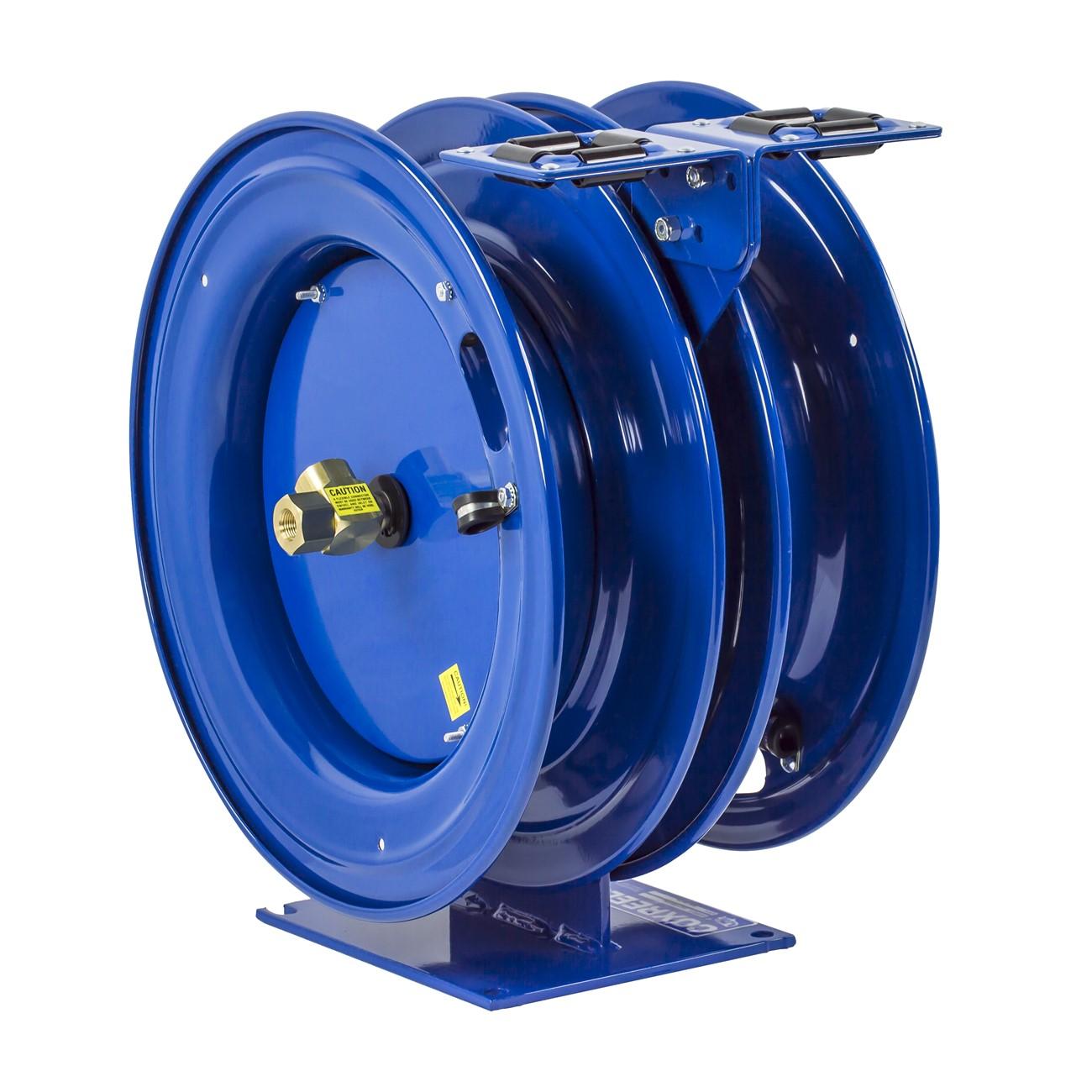

The COXREELS C-L350L-5012L-X is a C Series combination spring-driven hose reel that integrates an air hose reel and an electrical cord reel into a single compact assembly. Designed for trade environments where two supply sources are required but space is limited, this unit mounts on one shared pedestal base, reducing the footprint and simplifying the mounting pattern. The hose reel accepts 3/8 inch ID and 5/8 inch OD hose. A cartridge-style motor with a precision coil spring handles retraction, and all external components carry a CPC powder coat finish for chip and rust resistance. Licensed mechanics, industrial maintenance techs, and shop service personnel are the primary installers.

This combination reel is suited for automotive service bays, industrial maintenance shops, fleet service facilities, and similar environments where simultaneous air and electrical supply at a single station is needed. Each reel in the assembly operates independently, so air and electrical functions are controlled separately. The single-base design keeps both reels stable on wall, floor, ceiling, or vehicle-mount configurations using the multi-position guide arm.

Key Features

• Combination assembly pairs an air hose reel and an electrical cord reel on one shared steel base
• Machined solid brass 90-degree full-flow NPT swivel for straightforward seal maintenance and hose installation
• Enclosed, lubricated cartridge-style motor is removable for routine maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit unit for air and electric combination hose reel applications in the COXREELS C Series product line.

Installation Notes

Installation is typically performed by qualified mechanical or industrial maintenance technicians. Disconnect and lock out all air supply and electrical power before mounting or servicing the reel. Verify that the mounting surface and hardware are rated to support the assembled weight of 71 pounds. Electrical connections to the cord reel should comply with applicable NEC requirements for the circuit voltage and amperage being served.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Weight: 71 pounds
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Drive Type: Spring-driven
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255726376

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350L-5012L-X
