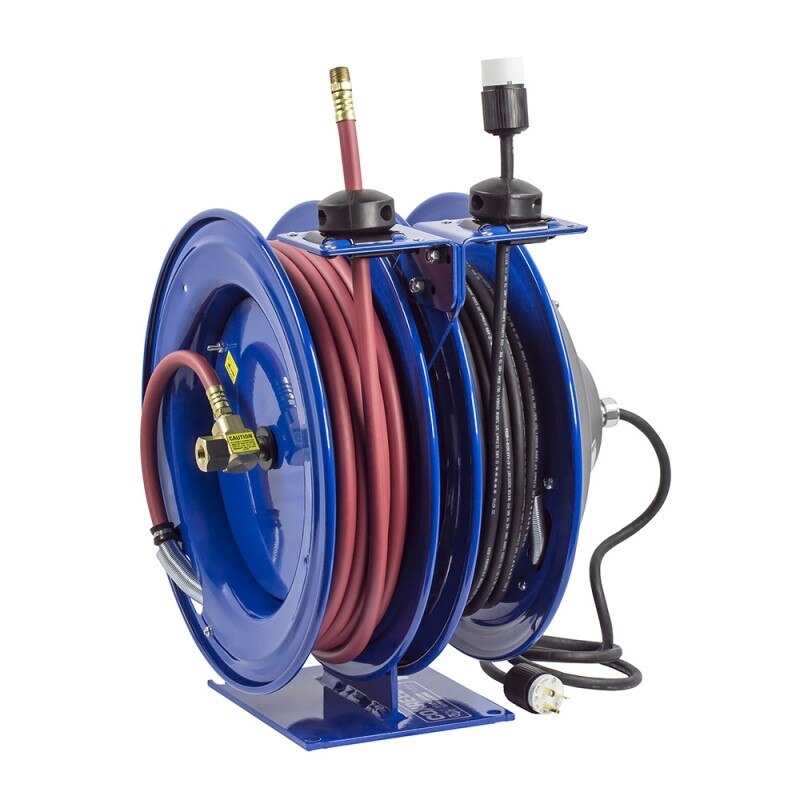

Coxreels C-L350-5016-X Combo Air Electric Hose Reel

Product Description

The COXREELS C-L350-5016-X is a C Series combination spring-driven hose reel that integrates two reels into one compact, single-base assembly. It delivers both an air hose and an electrical cord from a shared mounting footprint, making it the right solution for service bays, maintenance facilities, and mobile service vehicles where space is limited. The unit features a precision coil spring motor factory-tuned to the application, CNC robotically spun steel discs with rolled edges, and a solid one-piece 1/4-inch steel pedestal base. Each reel in the assembly operates independently. Licensed technicians and trade contractors in automotive, industrial, and facility maintenance roles are the primary installers of this unit.

The C-L350-5016-X suits applications where simultaneous access to compressed air and electrical power is required from a single mounting point. Typical installations include commercial garages, fleet service operations, manufacturing floors, and mobile work trucks. The 3/8-inch ID hose outlet and combination air-plus-electric configuration make this reel well matched to pneumatic tool use paired with corded equipment. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations, accommodating a wide range of shop layouts.

Key Features

• Combination two-reel assembly in one compact unit — air hose and electrical cord, each reel operates independently
• Precision cartridge-style coil spring motor, lubricated and enclosed for safe field maintenance and long service life
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece 1/4-inch steel pedestal base with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish for chip resistance and rust inhibition; includes 5-foot lead cable, grounding plug, adjustable solid rubber hose stop, and permanently lubricated precision bearing
• Machined solid brass 90-degree full-flow NPT swivel with external slip ring cover for accessible routine maintenance

Compatibility

Designed as an OEM-style spring-driven combination hose reel for commercial and industrial air-plus-electric applications requiring a dual-reel, single-mount assembly.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air systems and low-voltage electrical wiring. Shut off the compressed air supply and de-energize the electrical circuit before mounting or servicing the reel. Secure the mounting base to a structural surface capable of supporting the assembly weight under full load. Refer to applicable NEC guidelines for the electrical cord outlet and grounding requirements.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Base Material: Steel
• Drive Type: Spring driven
• Reel Configuration: Combination air and electric, dual reel single base
• Lead Cable Length: 5 feet
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 78 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350-5016-X
