Coxreels C-L350-5016-E Combo Air Electric Hose Reel

Product Description

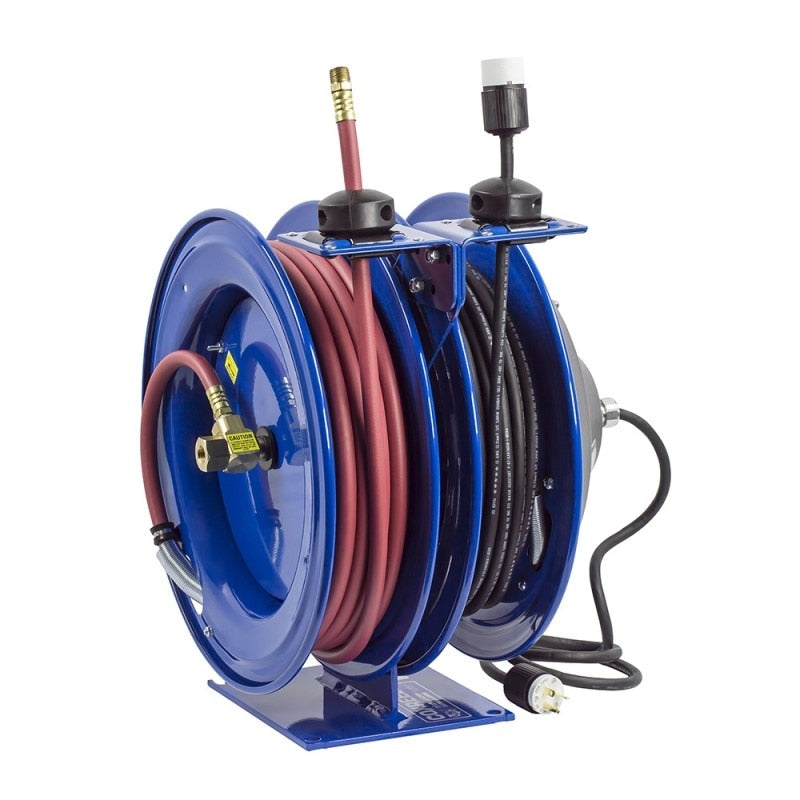

The COXREELS C-L350-5016-E is a spring-driven combination hose reel from the C Series, pairing an air hose reel and an electrical cord reel in a single compact assembly. The unit features a solid one-piece steel base with a no-weld expanded pedestal design, CNC robotically spun and ribbed steel discs with rolled edges, and a cartridge-style spring motor that is factory tuned and fully enclosed for easy removal and maintenance. The 3/8-inch ID, 5/8-inch OD hose path handles compressed air supply, while the integrated electrical section includes a 5-foot lead cable with grounding plug and an incandescent caged drop light with tool tap plug. Licensed HVAC technicians, mechanics, and industrial service professionals are the typical installers.

This combination reel is built for shop, fleet, and industrial service environments where two utility sources — compressed air and electrical power — are required simultaneously and floor space is limited. The single mounting base accepts wall, floor, ceiling, and vehicle mounting positions via the multi-position guide arm, making it adaptable to fixed service bays or mobile service vehicles. Each reel operates independently within the shared assembly.

Key Features

• Dual-function assembly combines air hose reel and electrical cord reel on one mounting base
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Enclosed cartridge-style spring motor is removable for routine maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel with external slip ring access for simple seal service
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style combination air and electrical hose reel for use in compressed-air service applications requiring simultaneous electrical cord access in a single-mount assembly.

Installation Notes

Installation should be performed by a qualified mechanic or service technician familiar with compressed air systems and low-voltage electrical connections. Shut off and bleed the compressed air supply and disconnect electrical power at the source before mounting or servicing the unit. Secure the mounting base to a surface rated for the combined weight of the reel and loaded hose. Verify all NPT swivel fittings are properly sealed and that the grounding plug is connected per applicable NEC requirements before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Drive Type: Spring driven
• Base Material: Steel
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 79 pounds
• Lead Cable Length: 5 feet
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350-5016-E
