Coxreels C-L350-5016-A Combo Air Electric Hose Reel

Product Description

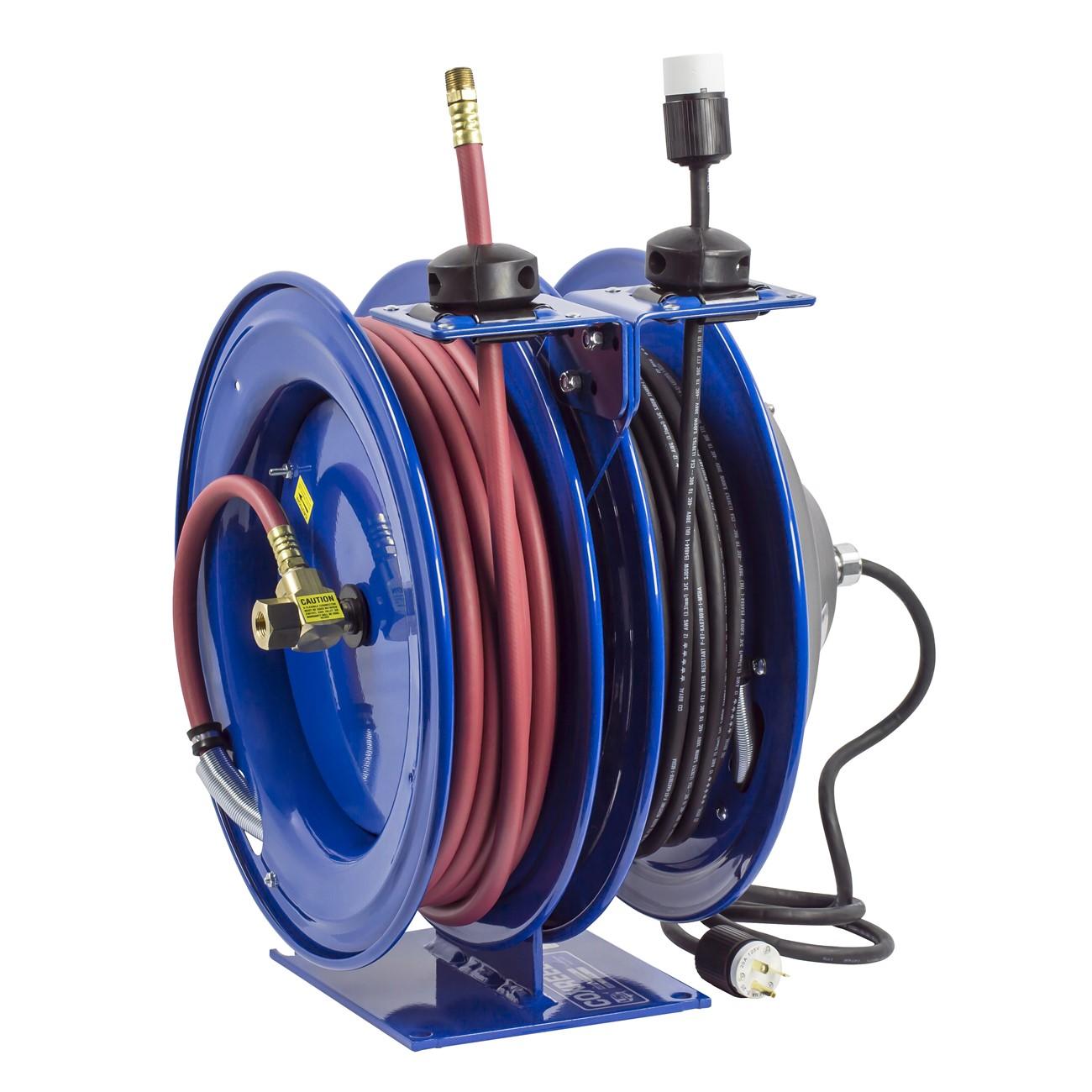

The COXREELS C-L350-5016-A is a spring-driven combination hose reel that integrates an air hose reel and an electrical cord reel into a single compact assembly. Built on a solid one-piece steel base, it is designed for shops, service bays, and mobile service vehicles where two supply sources are required but floor or wall space is limited. The unit features CNC robotically spun and ribbed steel discs, a cartridge-style spring motor, and a machined brass 90-degree full-flow NPT swivel. Each reel operates independently. The assembly weighs 79 pounds and measures 19.5 inches long, 18 inches wide, and 20 inches tall.

This combination reel is suited for commercial and industrial environments including automotive service shops, fleet maintenance facilities, manufacturing floors, and mobile service units. It handles applications where both compressed air and electrical power must be routed simultaneously from a central overhead, wall, or floor-mounted position. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of fixed and mobile installations.

Key Features

• Dual-function assembly combines air hose and electrical cord reels on a single mounting base, each operating independently
• Cartridge-style spring motor is factory-tuned, lubricated, and enclosed for easy removal and routine maintenance
• Machined solid brass 90-degree full-flow NPT swivel with external, accessible slip ring cover for simple seal maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece 1/4-inch steel base with no-weld pedestal design for maximum stability
• Includes 5-foot lead cable with grounding plug, single industrial receptacle, adjustable rubber hose stop, and CPC powder coat finish

Compatibility

Designed as an OEM-style spring-driven combination air and electric hose reel for industrial and commercial service environments requiring dual-supply delivery from a single mounting assembly.

Installation Notes

Installation is typically performed by a qualified electrician or mechanical technician familiar with compressed air distribution and low-voltage electrical cord management. Shut off the compressed air supply and de-energize the electrical circuit at the panel before mounting or connecting the reel. The multi-position guide arm must be secured to a structurally adequate surface rated for the combined weight of the unit and loaded hose. Installations involving permanent electrical connections should comply with applicable NEC requirements.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Drive Type: Spring driven
• Base Material: Steel
• Disc Construction: CNC spun ribbed steel with rolled edges
• Swivel Material: Solid brass
• Lead Cable Length: 5 feet
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 79 pounds
• Finish: CPC powder coat
• UPC: 674255726321

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350-5016-A
