Coxreels C-L350-5012-X Combination Air Electric Hose Reel

Product Description

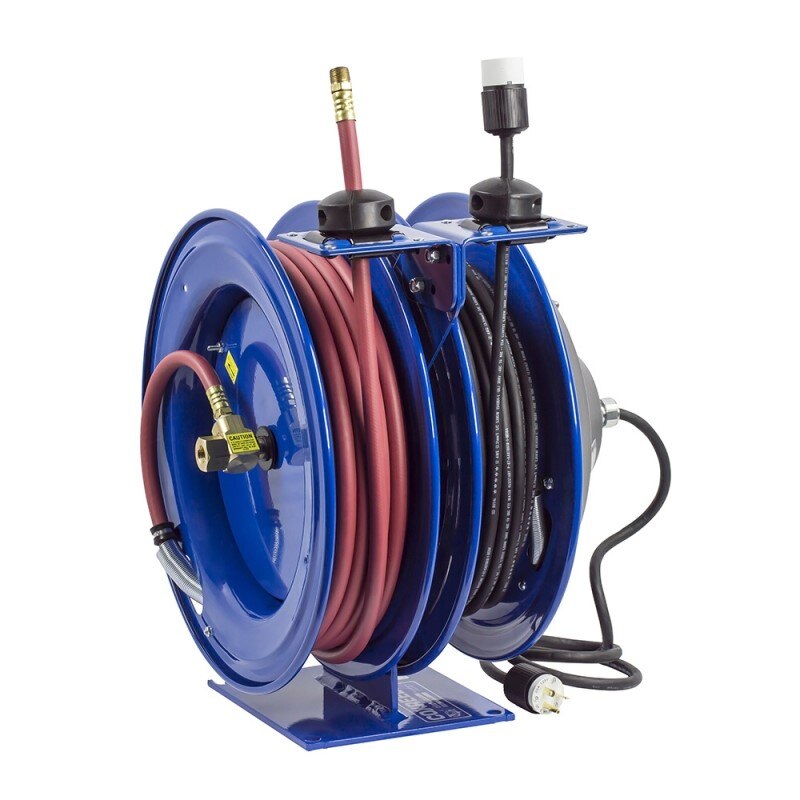

The COXREELS C-L350-5012-X is a combination spring-driven hose reel from the C Series, designed to deliver both an air hose and an electrical cord from a single compact assembly. Built for trade professionals who need two supply sources in tight spaces, it features a solid one-piece steel base with a single mounting pattern for maximum stability. The reel body is constructed with heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and hose protection. A lubricated and enclosed cartridge-style spring motor is factory-tuned to the application for consistent retraction performance and long service life. Licensed electricians and HVAC or pneumatic service technicians are the primary installers of this unit.

This reel is suited for commercial and industrial environments where compressed air and electrical power must be delivered simultaneously from one mounting location. Typical applications include automotive service bays, manufacturing floors, fleet maintenance facilities, and equipment service areas where overhead or wall space is limited. The multi-position guide arm allows mounting to walls, floors, ceilings, or vehicles, making it adaptable across a wide range of facility layouts. The compact dual-reel assembly allows each reel to operate independently.

Key Features

• Combination air hose and electrical cord delivery in a single compact two-reel assembly
• CNC robotically spun and ribbed steel discs with rolled edges for durability and hose protection
• Enclosed cartridge-style spring motor is removable for routine maintenance without full disassembly
• Solid one-piece steel base with no-weld pedestal design for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable rubber hose stop and 5-foot lead cable with grounding plug

Compatibility

Designed as an OEM-style replacement or direct-fit combination air and electric hose reel for commercial and industrial spring-driven reel applications requiring a 3/8 inch ID hose path.

Installation Notes

Installation should be performed by a qualified electrician and pneumatic systems technician, as this unit involves both electrical cord and compressed air connections. Disconnect power at the source and depressurize the air supply line before servicing or mounting. Secure the base to a structurally rated surface appropriate for the assembly weight and hose load. Follow applicable NEC guidelines for the electrical cord connection and grounding plug installation.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Base Material: Steel
• Drive Type: Spring driven
• Lead Cable Length: 5 feet
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 83 pounds
• UPC: 674255726406

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350-5012-X
