Coxreels C-L350-5012-F Combo Air Electric Hose Reel

Product Description

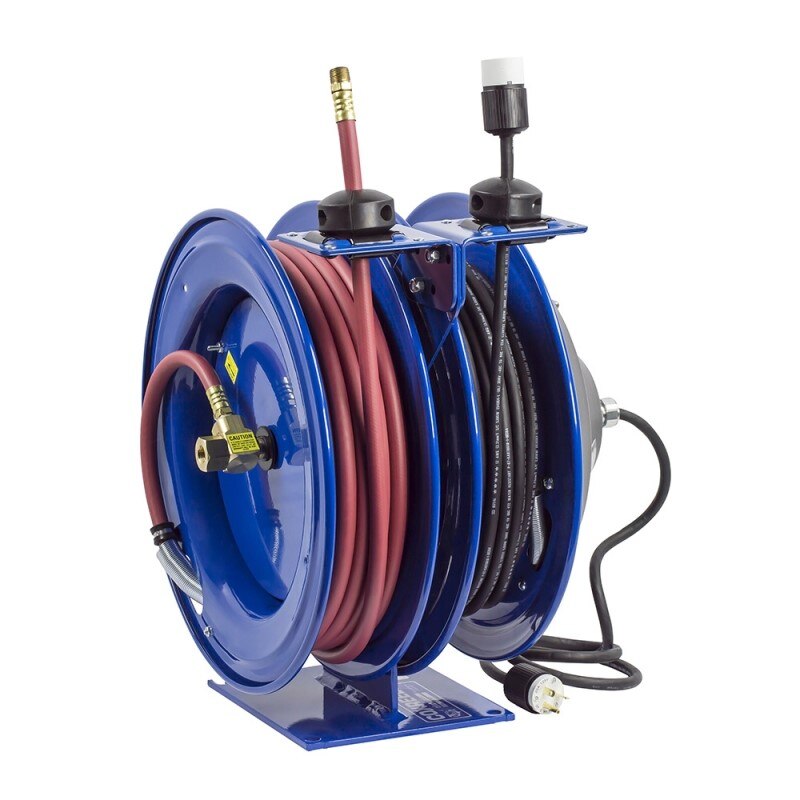

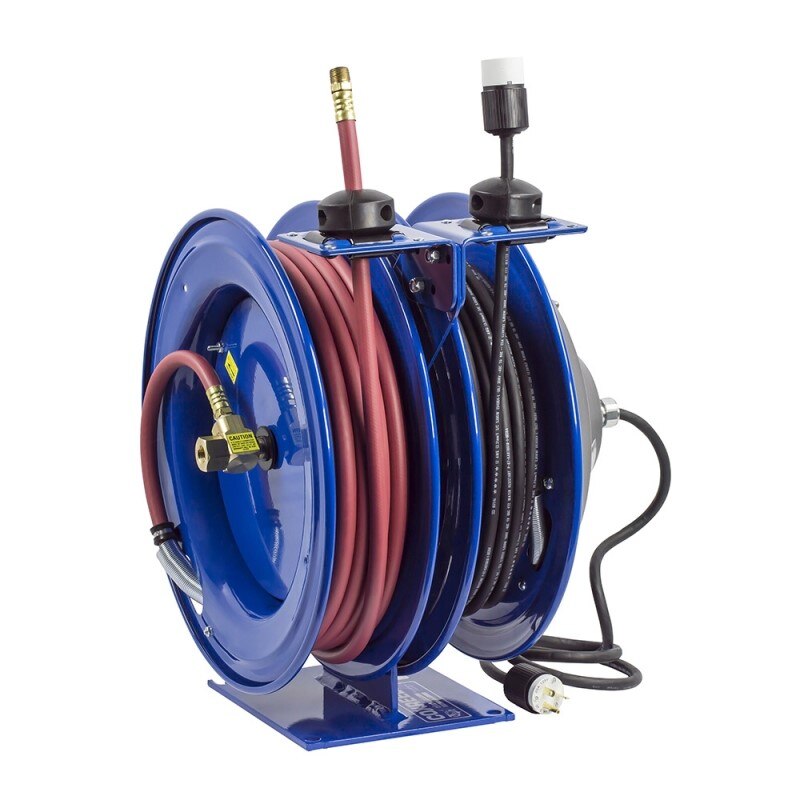

The COXREELS C-L350-5012-F is a spring-driven combination hose reel that integrates an air hose reel and an electrical cord reel into one compact, dual-reel assembly. Designed for trade environments where two supply sources are required and floor space is limited, it features a single solid steel pedestal base that provides a stable, one-pattern mounting footprint. The unit ships at 84 pounds and measures 19.5 inches long by 18 inches wide by 20 inches tall. Each reel operates independently, making it practical for air-and-electric tasks in automotive, industrial, and fleet service settings. Licensed electricians and mechanics are the typical installers for this type of combined unit.

The C-L350-5012-F is suited for fixed-station service bays, workshops, and vehicle-mounted applications where simultaneous air and electrical access is required. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations. The hose inlet is 3/8 inch ID with a 5/8 inch OD, making it compatible with standard shop air distribution systems. The unit includes a 5-foot lead cable with a grounding plug and a duplex GFCI metal industrial receptacle for electrical safety compliance in shop environments.

Key Features

• Dual-reel combination assembly: independent air hose reel and electrical cord reel on a single steel pedestal base
• Machined solid brass 90-degree full-flow NPT swivel with external, accessible heavy-gauge steel component cover for slip ring maintenance
• Enclosed, lubricated cartridge-style motor with precision coil spring factory-tuned for application-specific performance and long service life
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions
• Includes 5-foot lead cable, grounding plug, duplex GFCI metal industrial receptacle, adjustable solid rubber hose stop, and CPC powder coat finish

Compatibility

Designed as an OEM-style replacement or new-installation combination air and electric hose reel for fixed and vehicle-mounted service stations requiring simultaneous air and electrical supply from a single compact assembly.

Installation Notes

Installation of the electrical cord reel portion should be performed by a licensed electrician in accordance with applicable NEC requirements, particularly where GFCI protection and grounding are concerned. Shut off the compressed air supply and de-energize the electrical circuit before mounting or servicing either reel. The pedestal base requires secure anchoring to the mounting surface using fasteners appropriate for the substrate. Do not exceed the rated hose or cord capacity for either reel, and verify that the air supply pressure is within the rated range for the hose assembly in use.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Lead Cable Length: 5 feet
• Electrical Receptacle: Duplex GFCI metal industrial receptacle
• Base Material: Steel
• Finish: CPC powder coat
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 84 pounds
• UPC: 674255726390

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350-5012-F
