Coxreels C-L350-5012-B Air Electric Combo Hose Reel

Product Description

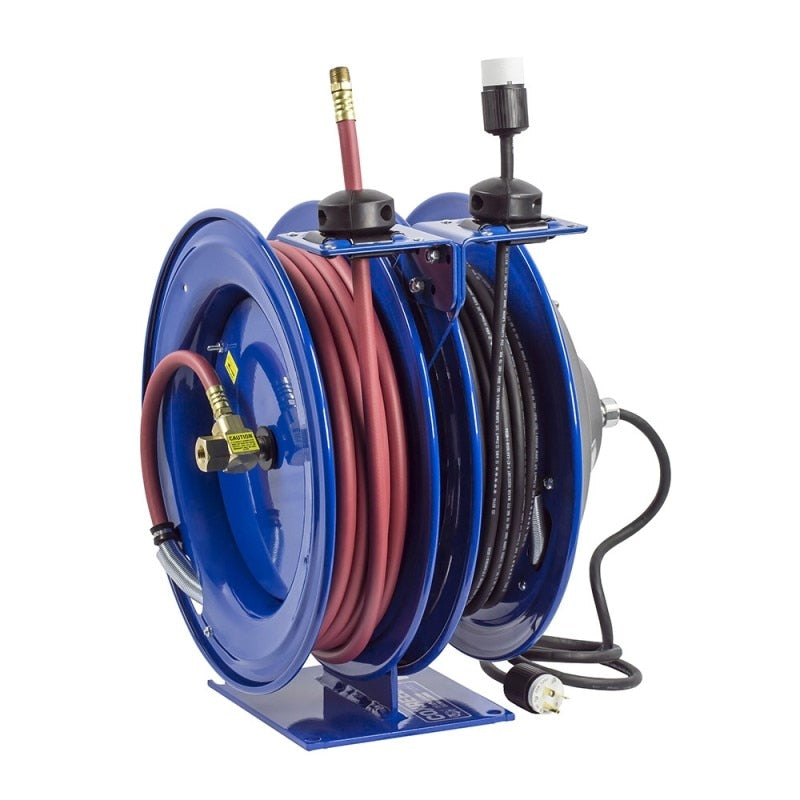

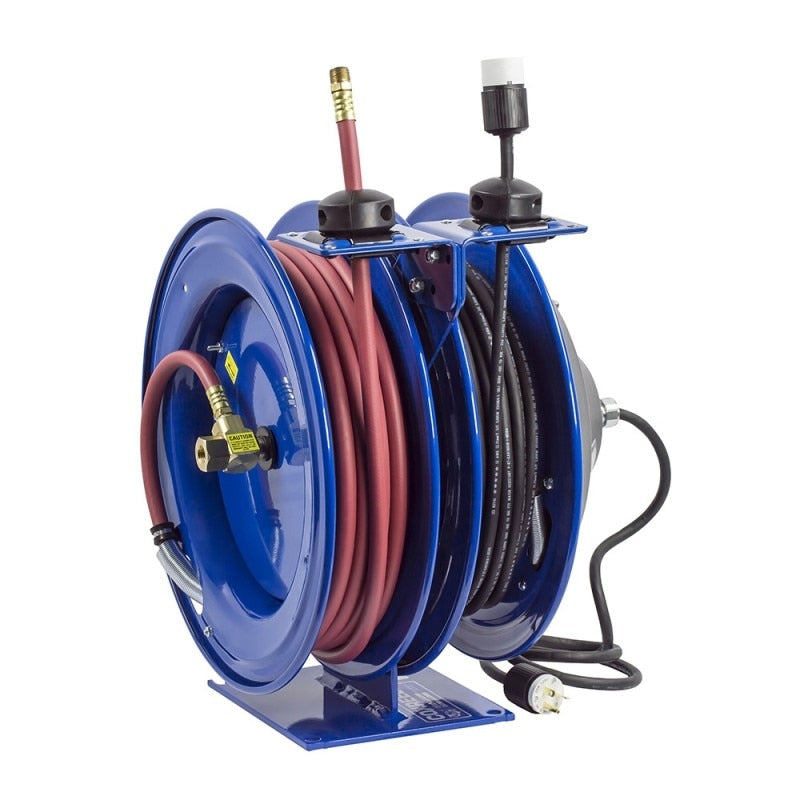

The COXREELS C-L350-5012-B is a combination spring-driven hose reel that integrates an air hose reel and an electrical cord reel into one compact assembly. Designed for trade environments where two supply sources are required but floor space is limited, this unit mounts on a single steel base with one mounting pattern for a stable, low-footprint installation. The hose inlet measures 3/8 inch ID and 5/8 inch OD. Each reel in the assembly operates independently, and the unit ships as a single piece weighing 85 pounds. Licensed mechanics, service technicians, and shop professionals working in garages, vehicle service bays, and industrial facilities are the primary installers.

This reel is suited for commercial and industrial shop environments where simultaneous air tool operation and electrical power delivery are needed from one mounting location. The combination air and electric configuration makes it practical for vehicle service bays, maintenance shops, and fleet facilities where overhead or wall-mounted reel assemblies reduce trip hazards and keep hoses and cords organized. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting to fit a wide range of install layouts.

Key Features

• Combination air hose and electrical cord reel in a single compact assembly — each reel operates independently
• Machined solid brass 90-degree full-flow NPT swivel with external slip ring access for routine seal and slip ring maintenance
• Lubricated, enclosed cartridge-style spring motor is fully removable for safe, convenient servicing; precision coil spring is factory-tuned to application
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Solid one-piece 1/4-inch steel base with support post — no-weld construction for maximum stability
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop, permanently lubricated precision bearings, 5-foot lead cable with grounding plug, and quad 4-plug industrial receptacle

Compatibility

Designed as an OEM-style replacement and standard fitment for combination air and electric hose reel applications in commercial shop and industrial service environments requiring a 3/8 inch ID air hose inlet.

Installation Notes

Installation should be performed by a qualified technician familiar with both compressed air plumbing and low-voltage electrical connections. Shut off and depressurize the air supply and disconnect electrical power at the source before beginning any connection work. The multi-position guide arm allows wall, floor, ceiling, or vehicle mounting — confirm that the mounting surface is rated to support the unit weight before fastening. Electrical cord connections must comply with applicable NEC requirements for the installation environment.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Weight: 85 pounds
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Base Material: Steel
• Finish: CPC powder coat
• Lead Cable Length: 5 feet
• Receptacle Type: Quad 4-plug industrial
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350-5012-B
