Coxreels C-L350-5012-A Combo Air Electric Hose Reel

Product Description

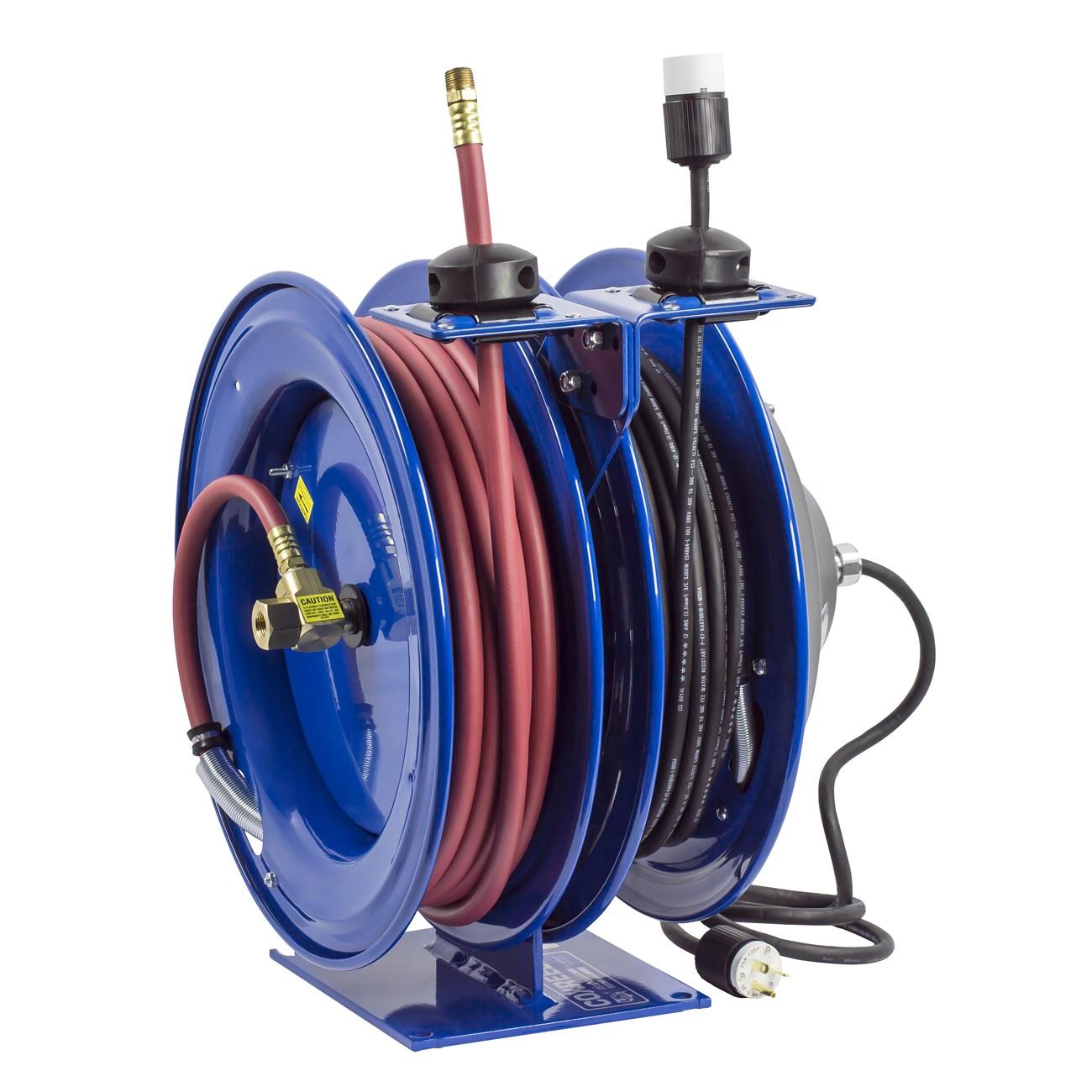

The COXREELS C-L350-5012-A is a spring-driven combination hose reel that integrates an air hose reel and an electrical cord reel into a single compact assembly. Built for trade professionals who need two supply sources in confined spaces, this unit mounts on one solid steel pedestal base, eliminating the need for separate mounting patterns. The hose inlet is 3/8 inch ID with a 5/8 inch OD, and the unit weighs 84 pounds. The reel features a CPC powder coat finish for chip and rust resistance. Each reel in the assembly operates independently, making this a practical solution for service bays, maintenance facilities, and mobile service vehicles.

This combination reel is suited for commercial and industrial applications where compressed air and electrical power must be delivered from the same workstation. Typical install scenarios include automotive service bays, fleet maintenance shops, industrial facilities, and service trucks where space is limited but dual-supply access is required. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, adding flexibility across a range of fixed and mobile environments. Licensed mechanics and maintenance technicians are the primary installers.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for field maintenance without full disassembly
• Brass 90-degree full-flow NPT swivel machined from solid stock for leak-resistant connections and easy hose installation
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with support post, no-weld construction, for maximum pedestal stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, and single industrial receptacle; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style combination air and electric hose reel for commercial and industrial service applications requiring dual-supply delivery from a single mounting base.

Installation Notes

Installation should be performed by a qualified technician familiar with both compressed air plumbing and low-voltage electrical wiring. Disconnect all air supply pressure and de-energize the electrical circuit before mounting or servicing the reel. Secure the base firmly to a structural surface capable of supporting the unit's 84-pound weight plus dynamic load. Follow applicable NEC requirements for the electrical cord reel portion of the assembly.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Drive Type: Spring-driven
• Base Material: Steel
• Finish: CPC powder coat
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 84 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-L350-5012-A
