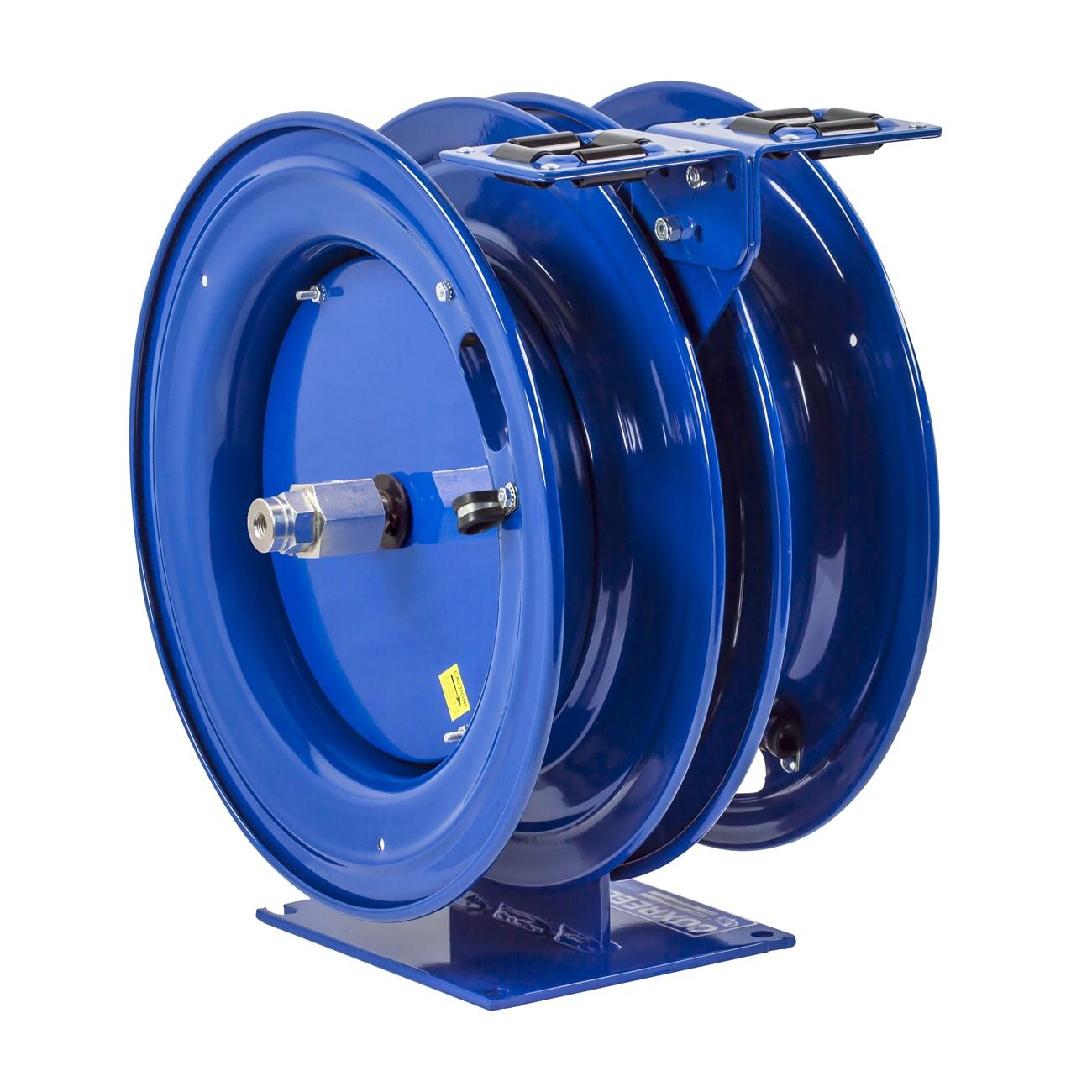

Coxreels C-HPL-330-330 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-HPL-330-330 is a C Series combination spring-driven hose reel that integrates two independent reels into a single compact assembly. Designed for applications where two fluid or air sources are required in a space-constrained environment, this dual reel mounts on one shared steel base for a stable, single-footprint installation. The spring-driven retraction mechanism uses a precision coil spring factory-tuned to the application for consistent performance and long service life. With a 3/8 inch inner diameter and 30-foot hose length per reel, it suits a range of pneumatic and fluid transfer tasks in professional service bays, maintenance facilities, and mobile service vehicles.

The C-HPL-330-330 is built for commercial and industrial environments where two separate lines must be deployed from one mounting point. Typical applications include automotive service shops, fleet maintenance bays, manufacturing floors, and vehicle-mounted service rigs. Both reels operate independently, allowing each line to be extended and retracted without interfering with the other. The single mounting pattern simplifies installation on walls, floors, ceilings, or vehicle surfaces. This model is also available in air hose and electrical cord combinations for mixed-media setups.

Key Features

• Two-reel combination assembly on a single steel base — each reel operates independently for dual-source applications
• External fluid path swivel machined from zinc-plated steel with 90-degree full-flow NPT connection — accessible for seal maintenance without removing the reel from its mount
• Enclosed cartridge-style spring motor is fully lubricated and removable for field maintenance; precision coil spring factory-matched to application
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Solid one-piece 1/4 inch steel base with support post — no weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting; CPC powder coat finish for chip and rust resistance

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel suitable for professional pneumatic and fluid transfer systems requiring two independent hose lines from a single mount point.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid line connections. Shut off and depressurize all supply lines before mounting or connecting hoses. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting — confirm that the mounting surface can support the assembled weight of 66 pounds plus hose load. Follow applicable facility or vehicle codes when routing fluid or air lines.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Length per Reel: 30 feet
• Drive Type: Spring driven
• Number of Reels: 2 (combination assembly)
• Base Material: Steel (1/4 inch, one-piece, no weld)
• Swivel Material: Zinc-plated machined steel
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 66 pounds
• UPC: 674255711938

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-HPL-330-330
