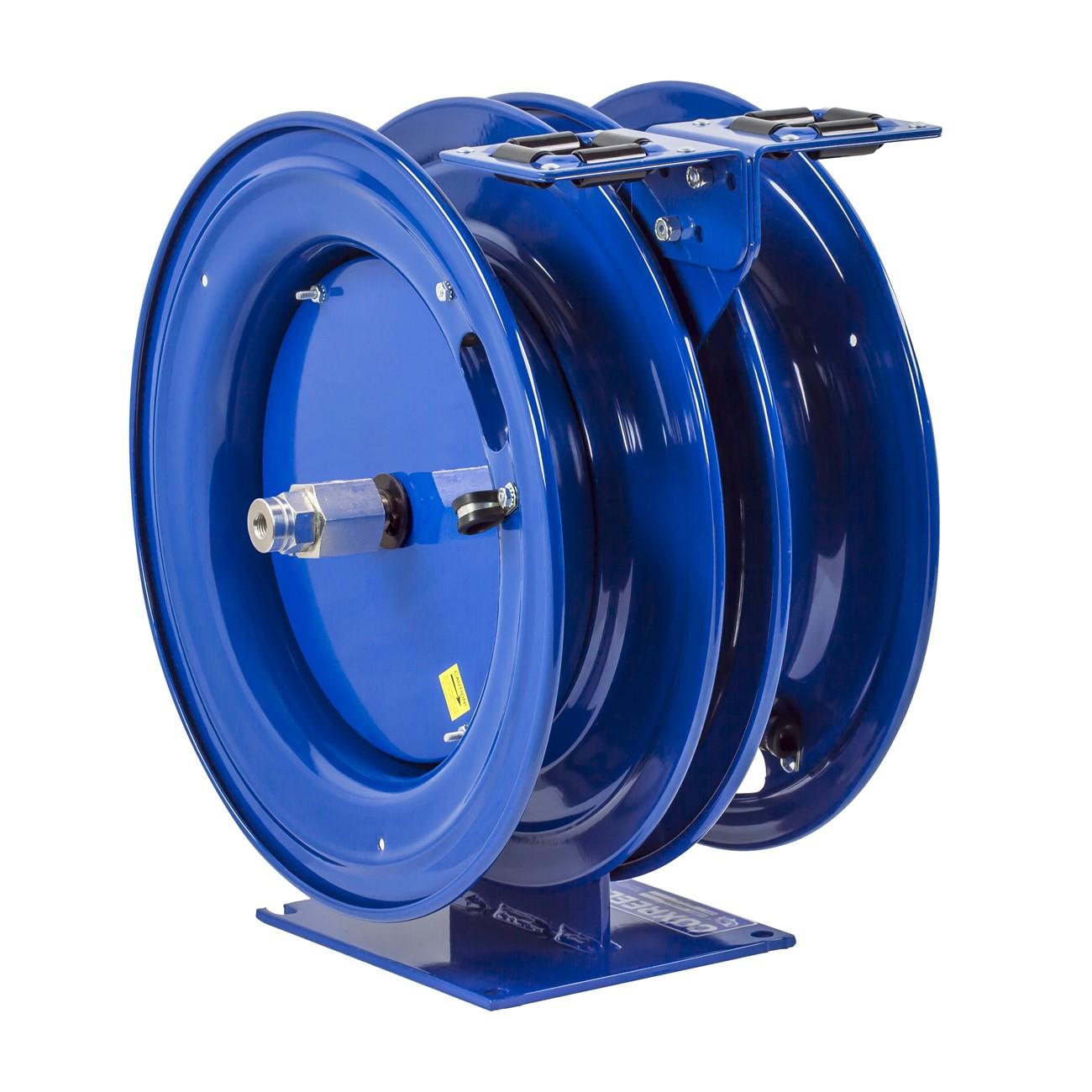

Coxreels C-HPL-325-325 Dual Spring Hose Reel 3/8 in 25 Ft

Product Description

The COXREELS C-HPL-325-325 is a C Series combination spring-driven hose reel that integrates two independent reels into a single compact assembly. Designed for applications where two fluid or air sources are required in tight spaces, it features a shared single mounting base that reduces footprint without sacrificing stability. Each reel operates independently and retracts via a precision coil spring motor factory-tuned to the application. The hose inlet ID is 3/8 inch with an 11/16 inch OD, and each reel accommodates 25 feet of hose. This unit is used by industrial maintenance technicians, fleet service professionals, and shop mechanics who need dual-source delivery without doubling their wall or floor mount requirements.

The C-HPL-325-325 fits stationary shop environments as well as vehicle-mounted service rigs where space is limited and dual fluid or air circuits must be accessible from a single station. The compact two-reel assembly is well suited for automotive service bays, manufacturing facilities, and mobile service units. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility in placement. Where two separate sources such as dual air lines or dual fluid circuits are needed simultaneously, this combination reel eliminates the need for two separate mounting locations.

Key Features

• Dual independent spring-driven reels on a single mounting base for two-source delivery in minimal footprint
• Two external fluid path machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is removable for maintenance; precision coil spring is factory-tuned and matched to application load
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Solid one-piece 1/4 inch steel base with no-weld pedestal design for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting; CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit option for dual-circuit spring-driven hose reel applications; also available in air hose and electrical cord combination configurations within the C Series.

Installation Notes

Installation is typically performed by industrial maintenance technicians or qualified shop equipment installers. Shut off and depressurize all fluid and air supply lines before mounting or connecting the reel. The multi-position guide arm should be secured to a structurally adequate surface capable of supporting the reel weight plus hose and fluid load. Follow applicable OSHA and facility safety codes for pressurized fluid and compressed air systems during installation and service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length per Reel: 25 feet
• Drive Type: Spring-driven
• Swivel Type: Two external fluid path, 90-degree full-flow NPT, zinc-plated steel
• Base Material: 1/4 inch solid steel, no-weld pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 64 pounds
• UPC: 674255711921

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-HPL-325-325
