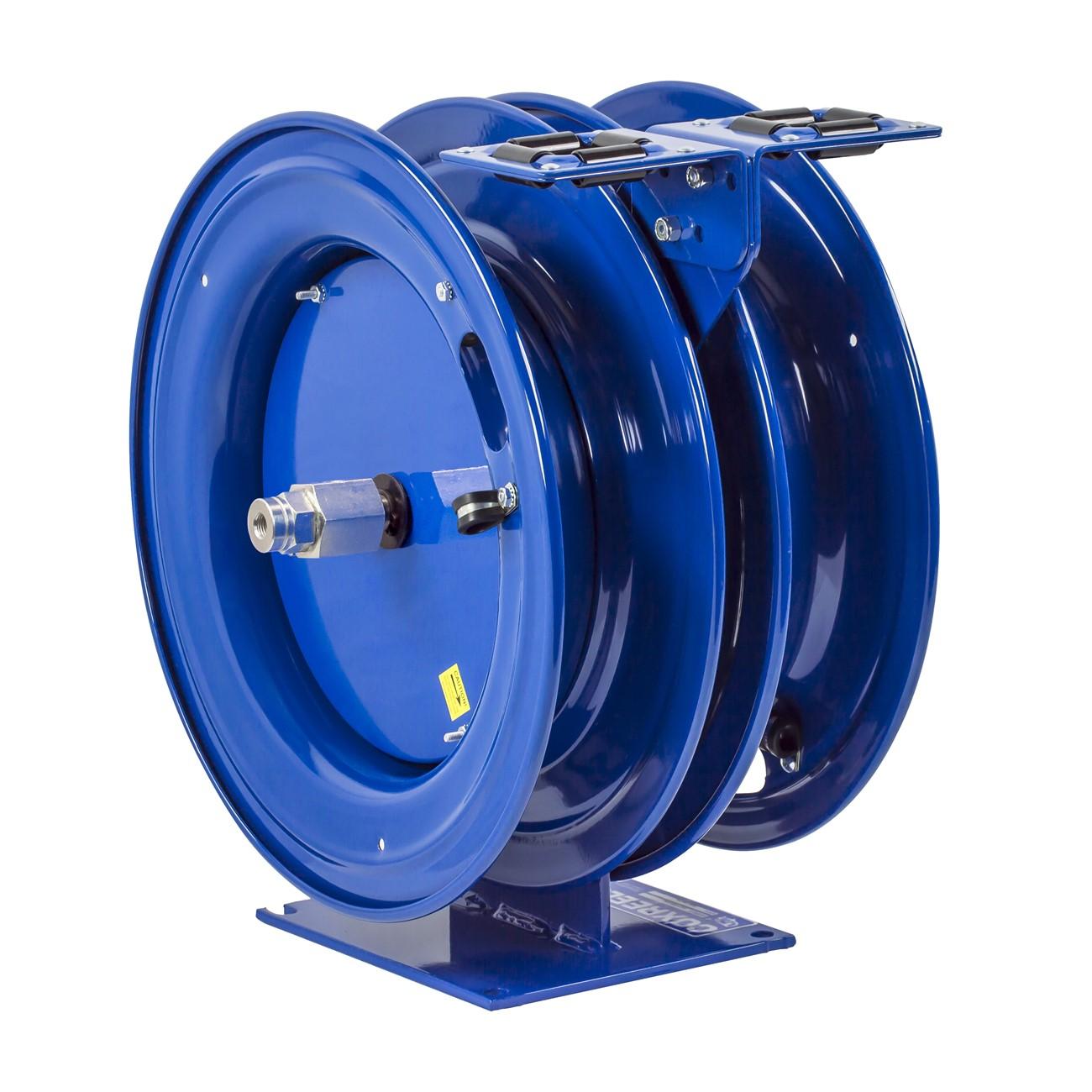

Coxreels C-HPL-135-135 Dual Hose Reel 1/4 Inch 35 Ft

Product Description

The COXREELS C-HPL-135-135 is a C Series combination spring driven dual hose reel designed to house two independent hose reels in a single compact assembly. Built for trade environments where two fluid or air sources are required but mounting space is limited, this unit features a solid one-piece steel base with a single mounting pattern that simplifies installation and adds stability. The dual-reel configuration allows each reel to operate independently while sharing one pedestal. Key specifications include a 1/4 inch ID hose capacity, 35 ft hose length per reel, and an overall assembly weight of 68 pounds. A licensed technician or industrial maintenance professional is the typical installer.

The C-HPL-135-135 is suited for automotive shops, manufacturing facilities, fleet maintenance bays, and any commercial or industrial setting where two simultaneous hose connections are needed in a space-constrained environment. The single base accommodates wall, floor, ceiling, and vehicle mounting positions through an adjustable multi-position guide arm. This series is also available in air hose and electrical cord combination configurations, broadening its use across service and maintenance applications.

Key Features

• Two-reel combination assembly on a single steel base — each reel operates independently for dual-source applications
• External fluid path zinc plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is removable for maintenance; precision coil spring is factory tuned and matched to the application
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish provides chip resistance and rust inhibition; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual hose reel replacement or new-install unit for industrial and commercial spring driven hose reel applications requiring a 1/4 inch ID hose path.

Installation Notes

Installation is typically performed by a qualified industrial maintenance technician or mechanical contractor. Depressurize and disconnect all fluid or air supply lines before mounting or servicing the reel assembly. Ensure the mounting surface and hardware are rated to support the assembled weight of 68 pounds plus the loaded hose. Consult applicable OSHA and local facility safety codes for compressed air and fluid handling equipment installations.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 35 ft per reel
• Configuration: Dual combination spring driven hose reel
• Swivel Type: External fluid path, zinc plated steel, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: Solid one-piece steel, no-weld expanded pedestal design
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 68 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-HPL-135-135
