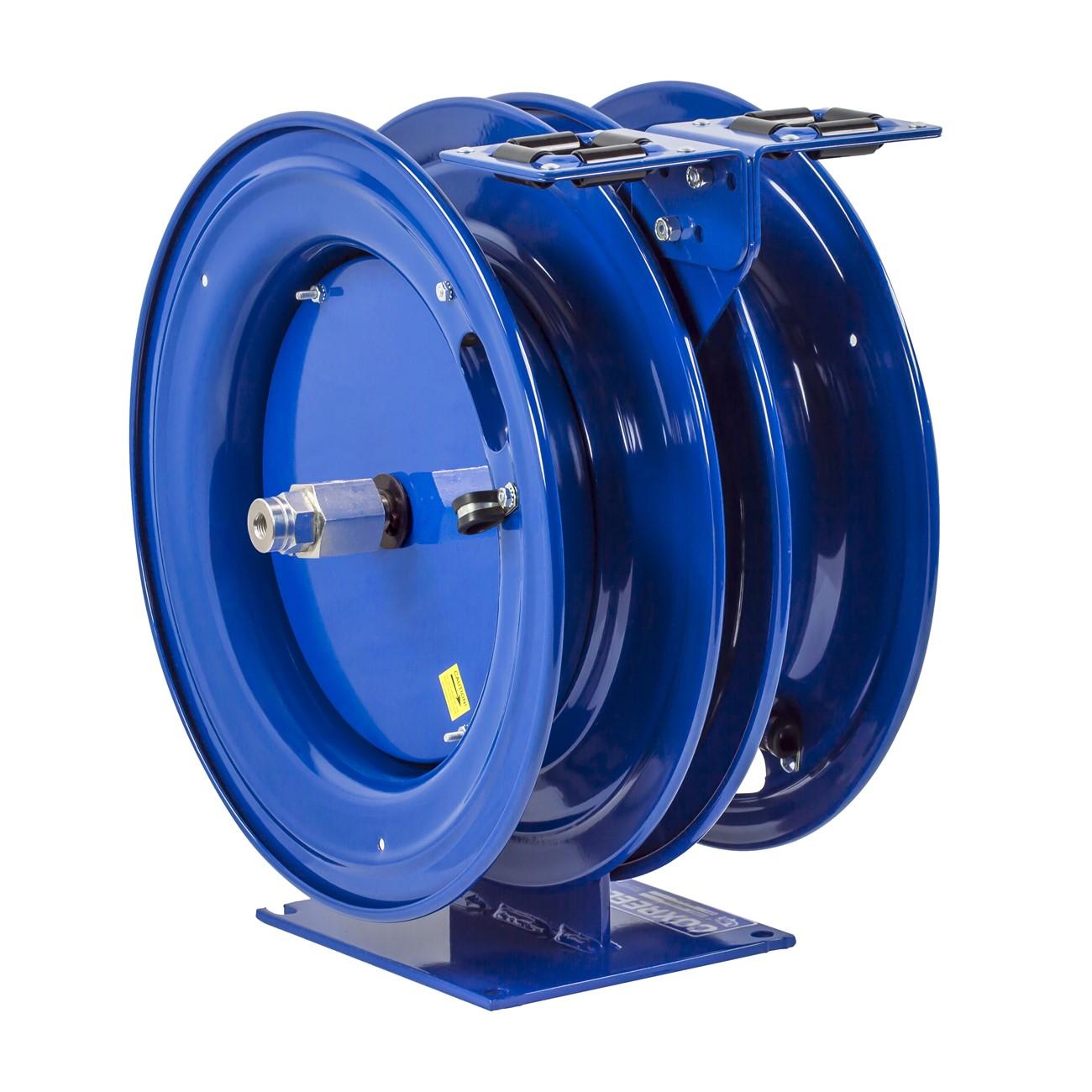

Coxreels C-HPL-125-125 Dual Hose Reel 1/4 in 25 Ft

Product Description

The COXREELS C-HPL-125-125 is a C Series combination spring-driven hose reel that houses two independent reels in a single compact assembly. Designed for trade professionals who need two fluid or air sources at one workstation, it eliminates the need for separate mounting hardware by using one shared pedestal base. The unit carries a 1/4 inch inner diameter hose path and accommodates 25 feet of hose per reel. The spring motor is factory-tuned to the application and enclosed in a cartridge-style housing, making field maintenance straightforward without pulling the reel from its mount.

This dual hose reel is suited for service bays, maintenance facilities, fleet shops, and industrial workstations where space is limited but two supply lines are required. Typical applications include simultaneous delivery of two fluid types, or pairing an air line with a secondary hose. The assembly mounts to wall, floor, ceiling, or vehicle surfaces, giving installers flexibility across a wide range of service environments. Each reel operates independently, so one side can be in use while the other remains retracted.

Key Features

• Two-reel combination assembly on a single mounting base for dual hose applications in tight spaces
• Cartridge-style spring motor is lubricated, enclosed, and removable for maintenance without dismounting the reel
• Two external fluid path machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit unit for dual hose reel applications requiring a 1/4 inch ID spring-driven combination reel; also available in air hose and electrical cord combination configurations within the C Series line.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid distribution systems. Shut off and depressurize all supply lines before mounting or connecting hoses to the reel. Secure the pedestal base to a structurally sound surface using fasteners appropriate for the mounting orientation and substrate. Verify all NPT swivel fittings are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 9/16 inch
• Hose Length per Reel: 25 feet
• Drive Type: Spring driven
• Swivel Type: Two external fluid path, zinc-plated steel, 90-degree full-flow NPT
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 66 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Base Material: Steel

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-HPL-125-125
