Coxreels C-HP-330-330 Dual Spring Driven Hose Reel 3/8 in

Product Description

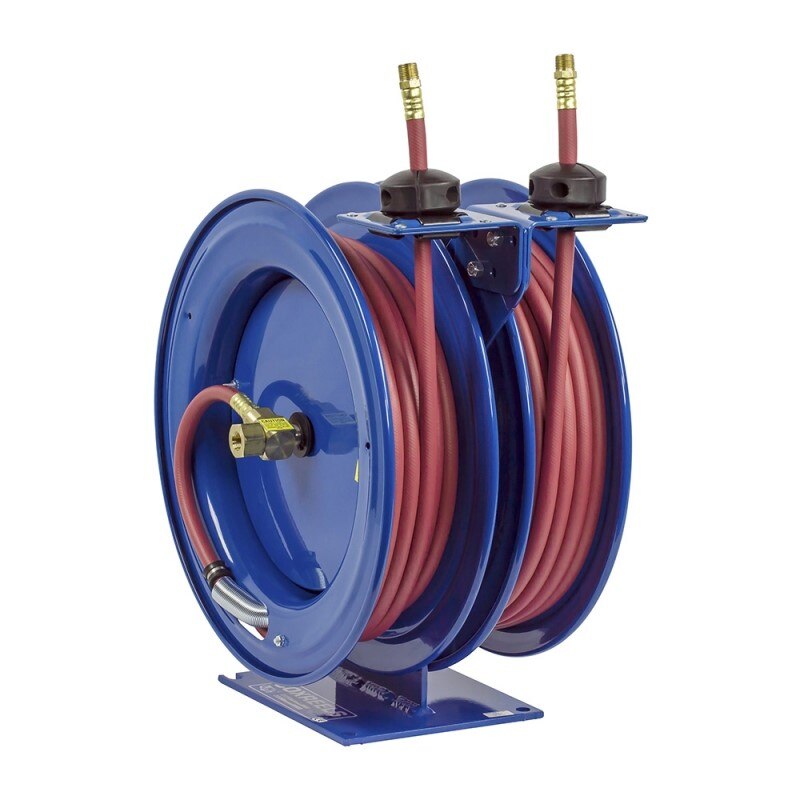

The COXREELS C-HP-330-330 is a C Series combination spring driven hose reel that integrates two independent reels into a single compact assembly. Designed for applications where two fluid sources are required in tight spaces, this unit features a 3/8 inch ID hose path and accommodates 30 feet of hose per reel. A shared single-piece steel mounting base provides stability and simplifies installation with one mounting pattern. Licensed trade professionals in industrial, automotive, and facility maintenance environments install this unit where dual-source fluid delivery is required without the footprint of two separate reels.

The C-HP-330-330 suits commercial and industrial settings where two independent hose lines must operate from a single mounting point. Typical applications include service bays, manufacturing floors, and fleet maintenance facilities where space is limited but dual fluid or air delivery is required. Each reel operates independently, allowing simultaneous or separate use of both lines. This series is also available in air hose and electrical cord combination configurations.

Key Features

• Dual-reel combination assembly on a single mounting base — each reel operates independently
• External fluid path zinc plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed cartridge-style spring motor is removable for maintenance; precision coil spring is factory tuned and matched to the application
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece 1/4 inch steel base with support post, no-weld construction, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style dual combination spring driven hose reel for industrial and commercial fluid delivery systems requiring two independent hose lines from a single mounting assembly.

Installation Notes

Installation is typically performed by licensed mechanics, industrial maintenance technicians, or plumbing professionals. Shut off all fluid supply lines and depressurize the system completely before mounting or connecting hoses. Use appropriate thread sealant on all NPT fittings per applicable codes. The multi-position guide arm should be secured in the correct orientation for the chosen mounting surface before final tightening.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length (per reel): 30 ft
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 82 pounds
• Base Material: Steel
• Finish: CPC powder coat
• Swivel Material: Zinc plated steel
• UOM: Each
• UPC: 674255711891

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-HP-330-330
