Coxreels C-HP-135-135 Dual Spring Hose Reel 1/4 in 35 Ft

Product Description

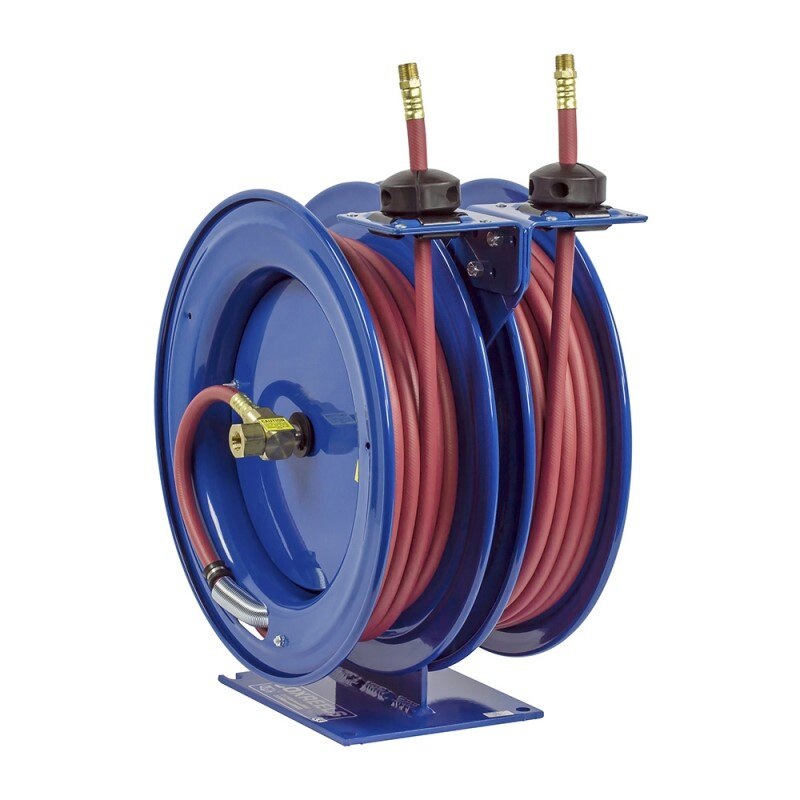

The COXREELS C-HP-135-135 is a dual-circuit, spring-driven combination hose reel designed for applications where two fluid sources are required in a space-constrained environment. Built on a single mounting base, this C Series unit houses two independent reels in one compact assembly. The CNC robotically spun and ribbed steel discs with rolled edges provide structural rigidity and protect hose integrity during repeated use. A cartridge-style spring motor is factory-tuned for the application, delivering consistent retraction force across the full hose length. Licensed contractors and fleet service technicians working in tight bays or mobile service vehicles will find the dual-reel format especially practical.

The C-HP-135-135 is suited for industrial and commercial service environments where two separate supply lines must be managed from a single mounting point. Typical installations include vehicle service bays, maintenance facilities, and mobile service rigs. Each reel in the assembly operates independently, so one line can be deployed or retracted without affecting the other. The unit accommodates 1/4 inch ID hose at 35 feet per reel and is also available in air hose and electrical cord combinations for mixed-service setups.

Key Features

• Dual independent reels on one compact single-base assembly for two-source applications
• Spring-driven cartridge motor is factory-tuned, lubricated, and fully enclosed for long service life and easy removal during maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Two external fluid path machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination hose reel for industrial and commercial fluid-delivery systems requiring two independent hose circuits from a single mounting base. Also available configured with air hose and electrical cord combinations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-delivery systems and the applicable plumbing or mechanical codes for the jurisdiction. Shut off and depressurize all supply lines before mounting or connecting hose to either circuit. The multi-position guide arm should be secured to the correct orientation for the mounting surface before final tightening. Verify that swivel inlet fittings are compatible with the existing supply line thread type and pressure rating before putting the reel into service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length per Reel: 35 ft
• Drive Type: Spring driven
• Configuration: Dual combination reel, single base
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Swivel Type: Two external fluid path, zinc-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 84 pounds
• UPC: 674255711877

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-HP-135-135
