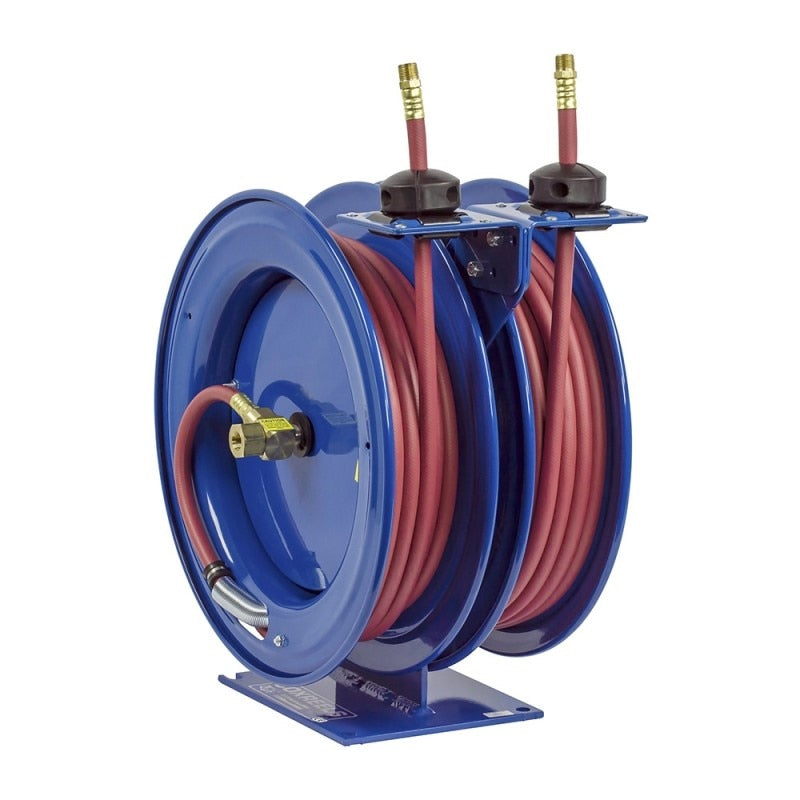

Coxreels C-HP-125-125 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-HP-125-125 is a C Series combination spring driven hose reel designed to function as two independent hose reels in a single compact assembly. It is built for applications where two fluid or air sources are required simultaneously and mounting space is limited. The unit features a single steel base with a support post, keeping the footprint small while delivering the structural stability needed in demanding service environments. The spring motor is a lubricated, enclosed cartridge design that is factory tuned for consistent retraction and long service life. Plumbing contractors, industrial maintenance technicians, and fleet service professionals install this reel where dual-line access is required at a fixed or vehicle-mounted station.

The C-HP-125-125 suits industrial and commercial applications where two separate hose lines must be routed from a single mounting point. Common install scenarios include service bays, maintenance facilities, mobile service vehicles, and industrial workstations. Each reel in the assembly operates independently, allowing simultaneous or separate use of both lines. The unit is compatible with wall, floor, ceiling, and vehicle mounting configurations via its multi-position guide arm. The C Series is also available in air hose and electrical cord combination configurations for mixed-media applications.

Key Features

• Dual-reel combination assembly on a single mounting base — each reel operates independently
• Enclosed cartridge-style spring motor is removable for maintenance without dismounting the reel
• Two external fluid path machined zinc plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS C Series combination spring driven hose reel lineup, suitable for dual-line air, fluid, or mixed-media service applications.

Installation Notes

Installation is typically performed by industrial maintenance technicians or plumbing professionals familiar with pressurized hose reel systems. Shut off all fluid or air supply lines and depressurize the system fully before connecting or servicing the reel. The multi-position guide arm should be secured to the mounting surface using fasteners appropriate for the substrate and load rating of the installation. Consult applicable local codes and the manufacturer guidelines when mounting to vehicles or overhead structures.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 9/16 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Material: Zinc plated steel
• Base Material: Steel
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 78 pounds
• UPC: 674255711860

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-HP-125-125
