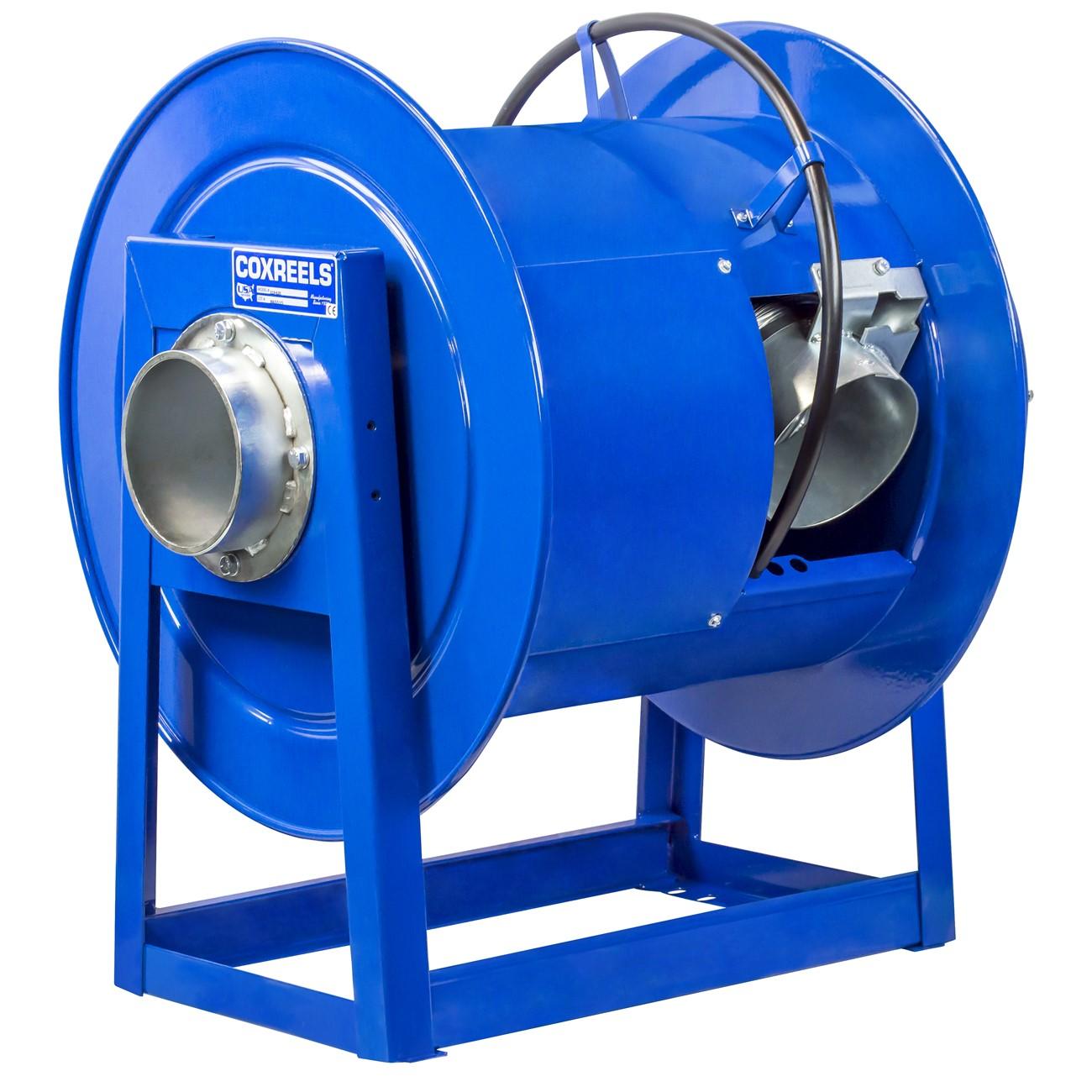

Coxreels 332-636 Spring Driven Exhaust Hose Reel 36 Ft

Product Description

The COXREELS 332-636 is a spring-driven exhaust hose reel from the 300 Series, designed to deliver reliable ventilation duct management in demanding shop and service environments. Built on an all-welded steel frame with no bolts, this reel accommodates hose up to 6 inches in internal diameter and handles 36 feet of exhaust ductwork. Internal ducting is included, so the unit arrives ready for installation. A precision coil spring motor, factory-tuned and matched to the application, drives smooth retraction and is enclosed in a lubricated cartridge housing for long service life. Licensed HVAC technicians and automotive exhaust technicians are the primary installers.

The 332-636 is suited for vehicle exhaust extraction, ventilation systems, and fume removal applications in commercial garages, service bays, and industrial facilities. Its 4 to 6 inch exhaust ductwork compatibility means a single reel fits across a range of duct sizes without custom fittings. The CPC powder coat finish resists chipping and rust, making it appropriate for high-cycle environments where corrosion resistance is a priority. Internal ducting is factory-installed, reducing field preparation time during setup.

Key Features

• All-welded steel frame with no bolts for structural rigidity and tip-over resistance
• Spring-driven cartridge motor that is lubricated, enclosed, and removable for maintenance
• Accommodates 4 to 6 inch exhaust ductwork across all models without per-reel fitting
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Easy access panel provides direct entry to the drum for routine service
• Chip-resistant, rust-inhibiting CPC powder coat finish with hose guide rail and internal ducting included

Compatibility

Designed as an OEM-style replacement or direct-fit reel for exhaust duct management systems requiring a 6 inch internal diameter, 36 ft spring-driven reel in commercial or industrial service bay installations.

Installation Notes

Installation should be performed by a qualified technician familiar with ventilation and exhaust extraction systems. Shut down and lock out all connected equipment before mounting or servicing the reel. Secure the unit to a structurally adequate overhead or wall mount point capable of supporting the reel weight plus hose load. Consult local mechanical and ventilation codes for duct connection requirements and clearance specifications.

Technical Specifications

• Hose Inside Diameter: 6 inches
• Hose Length: 36 ft
• Drive Type: Spring driven
• Frame Material: Steel
• Length: 45 inches
• Width: 26 inches
• Height: 34 inches
• Weight: 123 pounds
• Finish: CPC powder coat
• UPC: 674255844186

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 332-636
