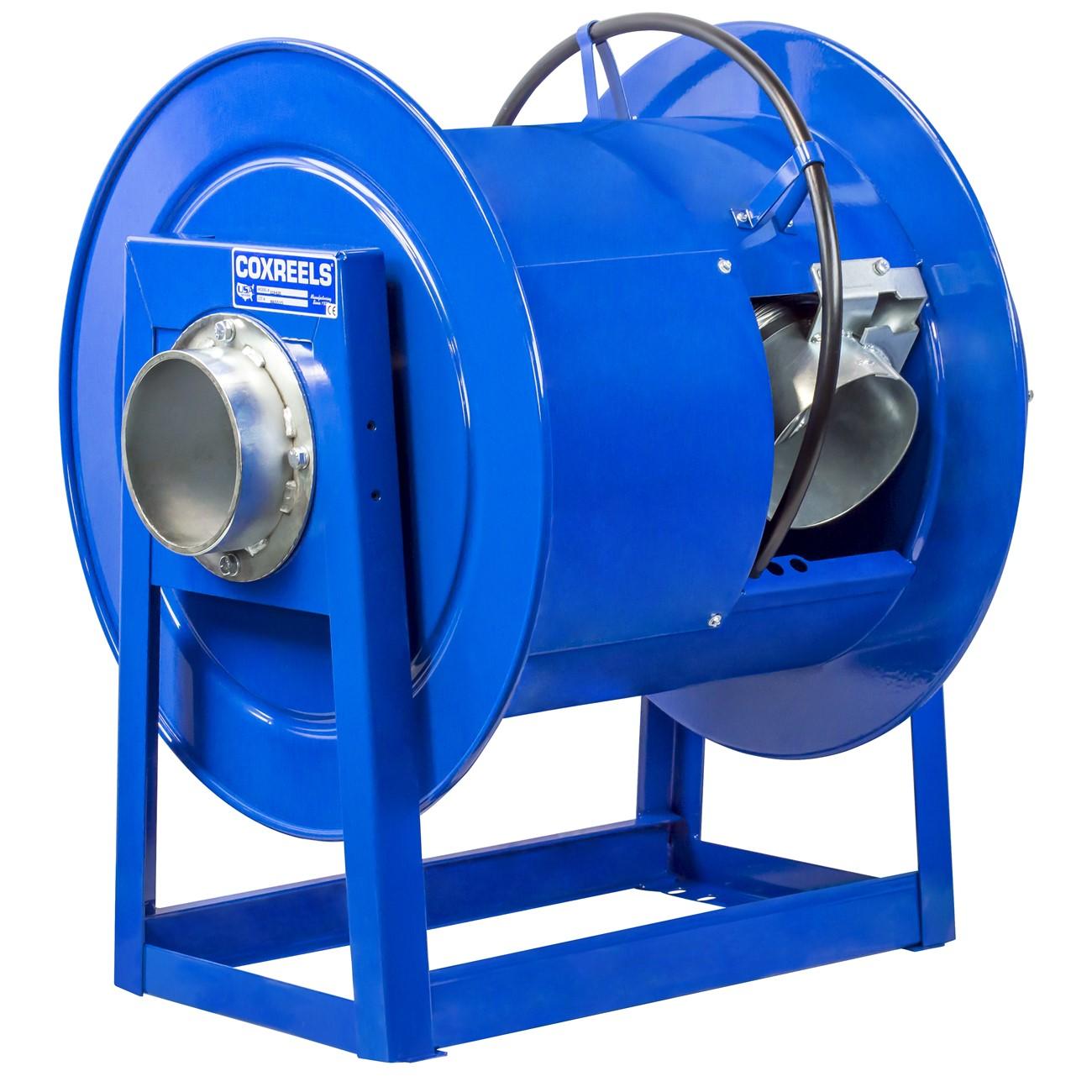

Coxreels 332-536 Spring Driven Exhaust Hose Reel 36 Ft

Product Description

The COXREELS 332-536 is a spring-driven exhaust hose reel from the 300 Series, built for ventilation applications that require reliable, repeated hose extension and retraction. The all-welded steel frame supports a 5-inch inner diameter drum capable of handling up to 36 feet of exhaust ductwork. A precision coil spring motor, factory-tuned and enclosed in a lubricated cartridge housing, drives retraction without electric power. Internal ducting is included, making the unit ready for installation without additional ductwork fitment. At 121 pounds, this is a heavy-duty unit intended for permanent mounting in automotive service bays, industrial facilities, and similar environments where exhaust extraction is required.

The 332-536 is suited for stationary exhaust extraction setups in commercial and industrial settings. It accommodates exhaust ductwork ranging from 4 to 6 inches in diameter across all models in the 300 Series, eliminating the need to size ductwork individually per reel. Typical installations include vehicle exhaust removal in enclosed service bays, emission testing stations, and industrial ventilation systems. Installation is performed by HVAC technicians or licensed mechanical contractors familiar with exhaust and ventilation system requirements.

Key Features

• Accepts 4 to 6 inch exhaust ductwork on all 300 Series models — no per-reel ductwork fitting required
• All-welded steel frame with no bolts for maximum strength, stability, and tip-over resistance
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Easy-access panel provides direct entry to the main drum for routine inspection and service
• CPC powder coat finish resists chips and rust; includes hose guide rail and internal ducting

Compatibility

Designed as an OEM-style replacement and direct-install exhaust hose reel compatible with 4 to 6 inch exhaust ductwork as stated by the manufacturer for the 300 Series platform.

Installation Notes

Installation should be performed by a licensed HVAC technician or mechanical contractor in accordance with applicable local mechanical codes and IFGC guidelines where relevant. Shut down and lock out any connected ventilation or exhaust system before mounting or servicing the reel. Verify that the mounting structure can support the reel weight of 121 pounds plus the loaded hose assembly. Do not modify the cartridge spring motor in the field — remove it as a complete unit for off-unit servicing.

Technical Specifications

• Hose Inner Diameter: 5 inches
• Hose Length: 36 feet
• Ductwork Compatibility: 4 to 6 inches
• Drive Type: Spring driven
• Frame Material: Welded steel
• Finish: CPC powder coat
• Weight: 121 pounds
• Length: 45 inches
• Width: 26 inches
• Height: 34 inches
• UPC: 674255844179

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 332-536
