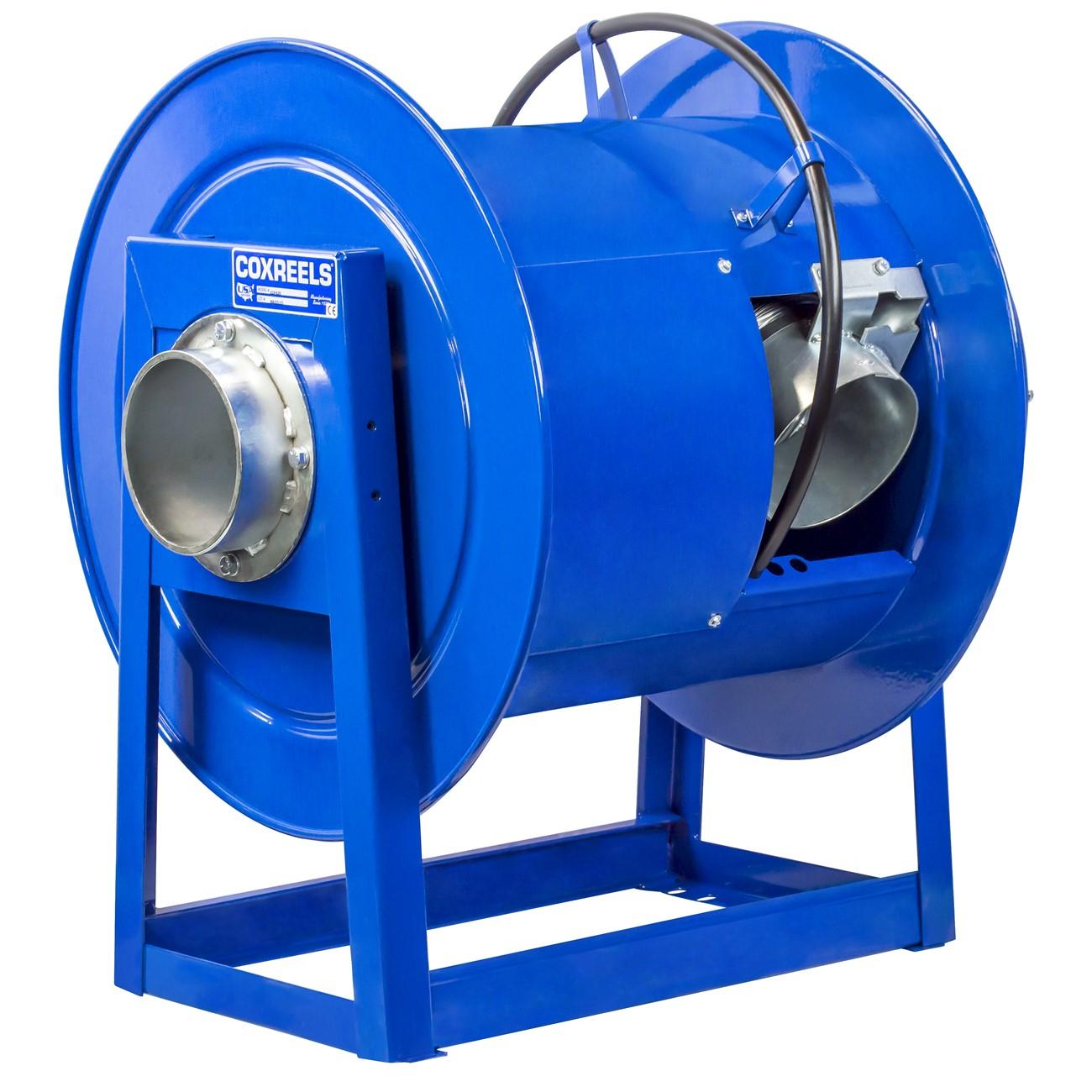

Coxreels 328-632 Spring Driven Exhaust Hose Reel

Product Description

The COXREELS 328-632 is a spring-driven exhaust hose reel from the 300 Series, designed to deliver reliable ventilation in demanding shop and fleet service environments. Built on an all-welded steel frame with no bolted joints, the reel provides the structural rigidity needed for daily use without risk of loosening or tip-over. The drum is wound by a lubricated, enclosed cartridge-style spring motor that is precision-tuned at the factory, matching spring tension to the specific hose length and weight for consistent retraction over the full service life. At 117 pounds, this is a heavy-duty fixed-mount unit intended for professional installation by HVAC or automotive service technicians.

The 328-632 is suited for exhaust extraction applications in automotive repair bays, diesel service facilities, fleet maintenance shops, and industrial workspaces where vehicle exhaust or ventilation ducting must be routed and retracted overhead. It accommodates exhaust ductwork from 4 to 6 inches in diameter across all models in the series, eliminating the need to custom-fit ductwork per reel. Internal ducting is included, making the unit ready for connection without additional fabrication. The reel ships with a hose guide rail and a CPC powder coat finish that resists chipping and rust.

Key Features

• All-welded steel frame with no bolts for maximum rigidity, stability, and tip-over resistance
• Enclosed cartridge-style spring motor is lubricated, removable, and factory-tuned for the application
• Accepts 4 to 6 inch exhaust ductwork on all 300 Series models without per-reel fitting modifications
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Easy access panel provides direct reach to the main drum for routine maintenance
• Internal ducting included; long-lasting CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style replacement or direct-install unit within the COXREELS 300 Series spring-driven exhaust reel line; fits exhaust ductwork from 4 to 6 inches in diameter on all 300 Series models.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor familiar with overhead reel mounting and exhaust ducting systems. The mounting surface must be rated to support the unit weight of 117 pounds plus the loaded hose assembly. Shut off all ventilation and exhaust systems before connecting or disconnecting ductwork. Refer to local mechanical codes for clearance requirements and fastener specifications when anchoring to ceiling joists or structural steel.

Technical Specifications

• Series: 300
• Drive Type: Spring driven
• Hose Inside Diameter: 6 inches
• Hose Length: 32 ft
• Ductwork Compatibility: 4 to 6 inches
• Frame Material: Welded steel
• Finish: CPC powder coat
• Weight: 117 pounds
• Length: 41 inches
• Width: 26 inches
• Height: 34 inches
• UPC: 674255844162

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 328-632
