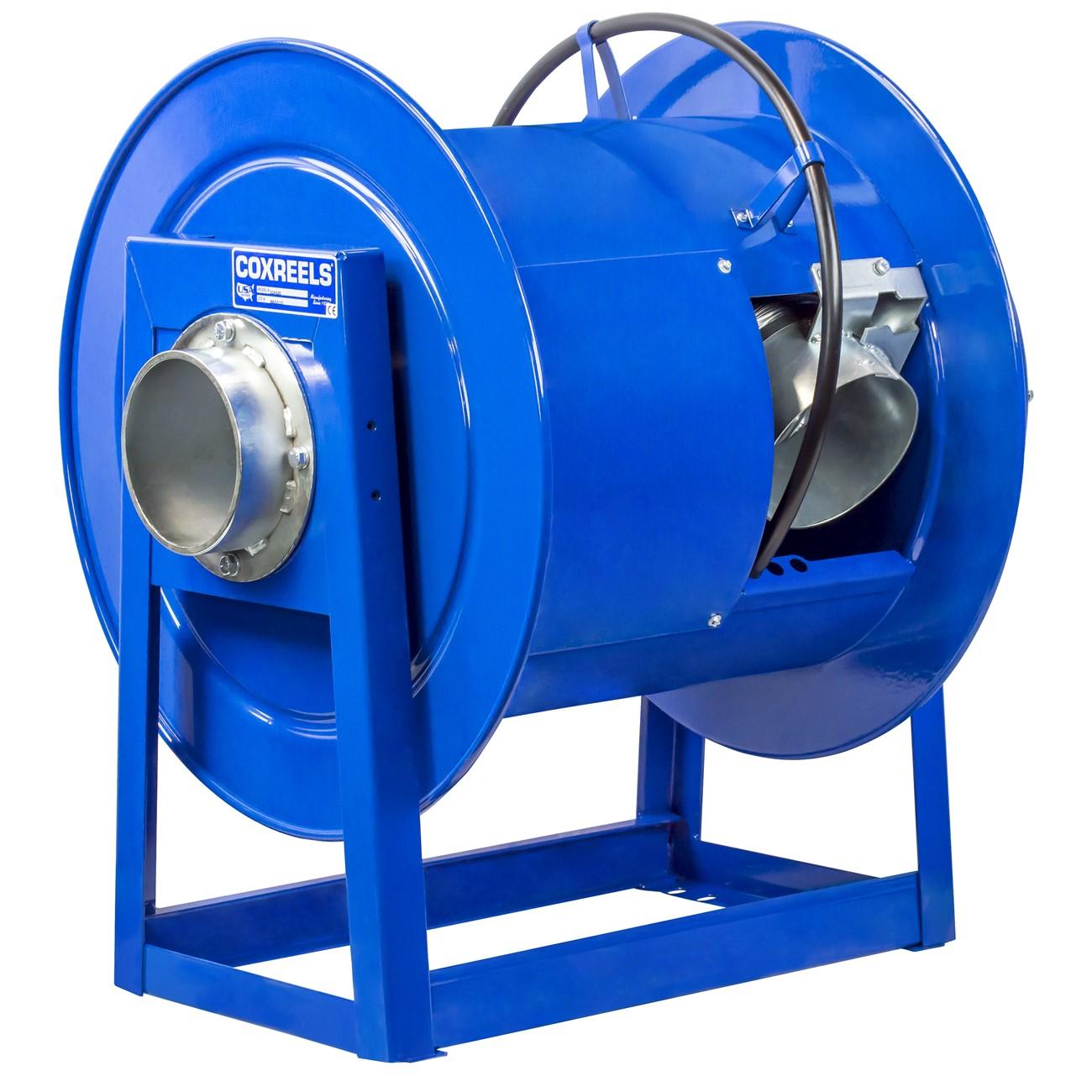

Coxreels 328-532 Spring Driven Exhaust Hose Reel 5 in Steel

Product Description

The COXREELS 328-532 is a spring-driven exhaust hose reel from the 300 Series, designed to deliver reliable forced-air ventilation in demanding shop and service environments. The reel features an all-welded steel frame, CNC robotically spun and ribbed steel discs, and an enclosed cartridge-style spring motor. With a 5-inch inner diameter and 32-foot hose capacity, this unit handles exhaust ductwork ranging from 4 to 6 inches across all 300 Series models. Internal ducting is included, so the reel arrives ready to install without additional duct fitting. Licensed HVAC technicians, fleet service shops, and industrial maintenance crews are the primary installers.

The 328-532 is built for fixed overhead or wall-mount installations in automotive service bays, industrial facilities, and commercial HVAC environments where vehicle exhaust or fume extraction is required. The spring-return mechanism automatically retracts the hose after each use, reducing trip hazards and wear. At 115 pounds and measuring 41 inches long by 26 inches wide by 34 inches tall, this is a heavy-duty unit intended for permanent installation rather than portable use.

Key Features

• Fits 4 to 6 inch exhaust ductwork across all 300 Series models — no per-reel duct fitting required
• All-welded steel frame with no bolts for maximum strength, stability, and tip-over resistance
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Easy-access panel allows routine drum inspection and service without major teardown
• CPC powder coat finish resists chips, rust, and corrosion in high-use shop environments
• Internal ducting included — ships ready to connect and operate

Compatibility

Designed for use with 4 to 6 inch exhaust ductwork across all COXREELS 300 Series spring-driven reel models.

Installation Notes

Install by a qualified technician familiar with ventilation and exhaust extraction systems. Power down or disable any connected equipment before mounting or connecting ductwork. Secure the reel to a structural overhead or wall surface rated for the unit weight of 115 pounds plus hose load. Follow applicable local mechanical codes and OSHA ventilation requirements for the installation environment.

Technical Specifications

• Hose Inner Diameter: 5 inches
• Hose Length Capacity: 32 feet
• Compatible Ductwork Range: 4 to 6 inches
• Drive Type: Spring driven
• Frame Material: Welded steel
• Finish: CPC powder coat
• Unit Length: 41 inches
• Unit Width: 26 inches
• Unit Height: 34 inches
• Weight: 115 pounds
• Series: 300
• UPC: 674255844155

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 328-532
