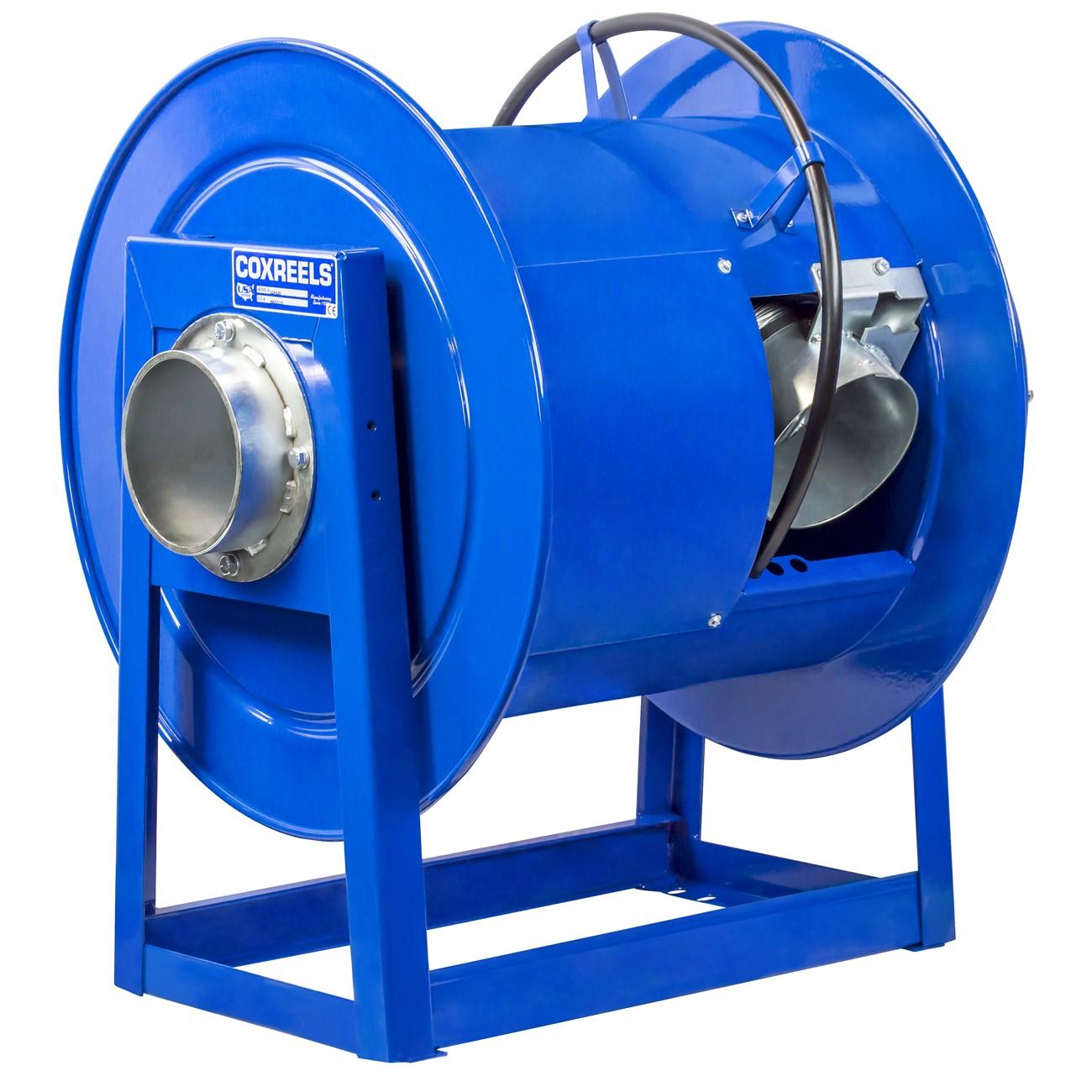

Coxreels 328-440 Spring Driven Exhaust Hose Reel 4 in

Product Description

The COXREELS 328-440 is a spring-driven exhaust hose reel from the 300 Series, built for ventilation and exhaust duct management in demanding trade environments. The reel features an all-welded steel frame with no bolts, CNC robotically spun and ribbed steel discs, and an enclosed cartridge-style motor. It accepts 4 to 6 inch exhaust ductwork without per-reel fitting adjustments, and ships with internal ducting included so it is ready to deploy. At 115 pounds, the unit is a heavy-duty installation suited for automotive, industrial, and mechanical service bays where reliable exhaust evacuation is required.

The 328-440 is designed for stationary or fixed-mount exhaust ventilation applications in commercial and industrial settings. Typical installations include vehicle exhaust extraction in garages and service facilities, as well as general duct ventilation runs where a spring-retract reel saves time and reduces trip hazards. The 4 inch inside diameter matches common exhaust hose and flexible duct sizes used in these environments. The spring mechanism is factory tuned and matched to the application to ensure consistent retraction performance over the product life cycle.

Key Features

• Fits 4 to 6 inch exhaust ductwork on all models — no per-reel duct fitting required
• All-welded steel frame with no bolts for strength, stability, and tip-over resistance
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full disassembly
• Precision coil spring factory tuned and matched for longest retraction life cycle
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Easy-access drum panel, hose guide rail, internal ducting included, and CPC powder coat finish

Compatibility

Designed for use with 4 to 6 inch exhaust ductwork across all 300 Series reel models. Internal ducting is included, making the unit compatible with standard flexible exhaust hose configurations without additional fittings.

Installation Notes

Installation is typically performed by a licensed mechanical contractor or facilities maintenance professional. Shut down all connected ventilation equipment and ensure the mounting surface is rated for the reel weight before securing the unit. Follow applicable local mechanical codes and OSHA ventilation requirements for exhaust extraction systems. Do not exceed the rated hose diameter or length capacity of the reel.

Technical Specifications

• Hose Inside Diameter: 4 inches
• Hose Capacity: 40 ft
• Drive Type: Spring driven
• Frame Material: Steel (all-welded)
• Weight: 115 pounds
• Length: 41 inches
• Width: 26 inches
• Height: 34 inches
• Finish: CPC powder coat
• UPC: 674255844148

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 328-440
