Coxreels 319-620 Spring Driven Exhaust Hose Reel 6 in 20 Ft

Product Description

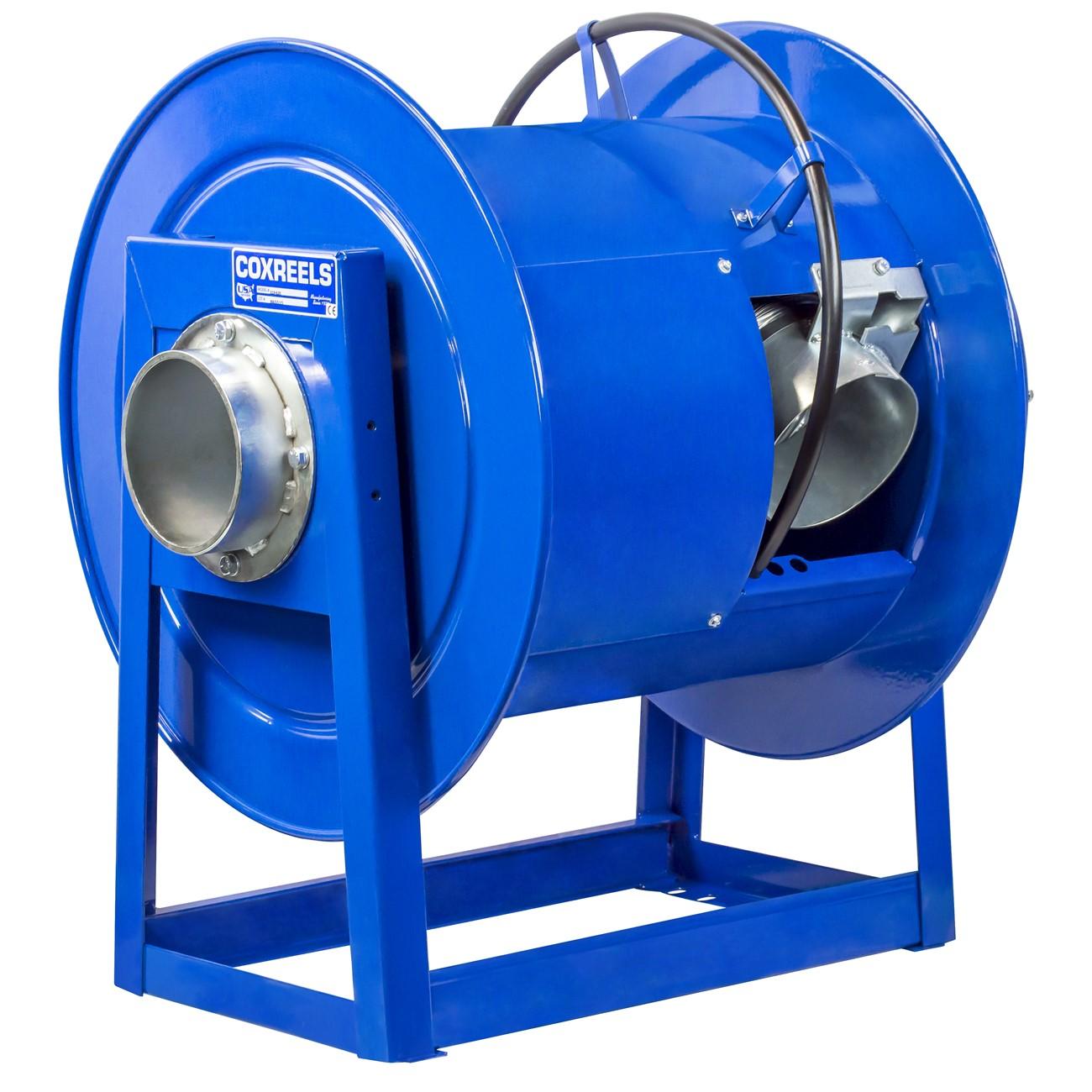

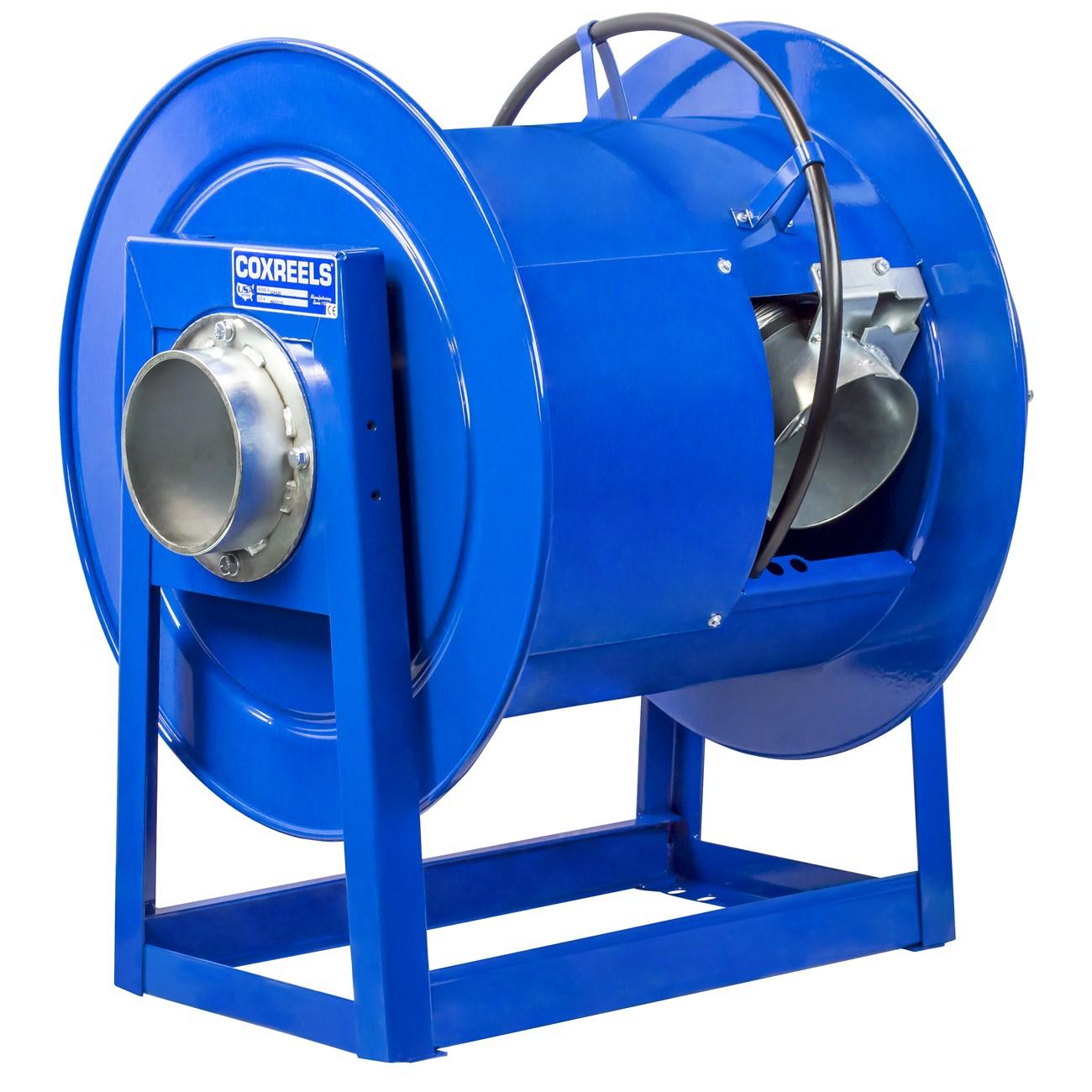

The COXREELS 319-620 is a spring-driven exhaust hose reel built for industrial and shop ventilation applications. Part of the 300 Series, it features an all-welded steel frame and a precision coil spring cartridge motor factory-tuned to the application. The reel ships with internal ducting included, making it ready to install without additional fitment work. At 105 pounds, it is a heavy-duty unit intended for permanent or semi-permanent mounting in environments where reliable exhaust ductwork retraction is required. Licensed professionals and experienced shop technicians are the primary installers.

The 319-620 is designed for exhaust ductwork applications in automotive service bays, industrial facilities, and commercial garages where vehicle exhaust or fume extraction is required. The reel accommodates 6-inch ID exhaust ductwork and handles hose lengths up to 20 feet. Its spring-driven retraction eliminates the need for manual coiling, reducing trip hazards and keeping work areas clear. The enclosed cartridge motor and CNC-spun ribbed discs are engineered for high-cycle service in demanding shop environments.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without disassembling the full reel
• All-welded steel frame with no bolt joints for structural stability and tip-over resistance
• Accepts 6-inch ID exhaust ductwork across all 300 Series models without per-reel fitting
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Easy-access panel allows routine drum inspection and maintenance
• Internal ducting included; CPC powder coat finish resists chips, rust, and corrosion
• Hose guide rail included for consistent layering during retraction

Compatibility

Designed as an OEM-style exhaust hose reel for 6-inch ID exhaust ductwork systems; fits standard exhaust extraction setups without additional ductwork modification per unit.

Installation Notes

Installation should be performed by a qualified technician familiar with exhaust extraction and ventilation systems. Power down or isolate any connected ventilation equipment before mounting or servicing the reel. Mounting surface must support the reel weight of 105 pounds plus dynamic hose load. Refer to applicable local mechanical codes and OSHA ventilation requirements when integrating into vehicle exhaust extraction systems.

Technical Specifications

• Hose ID: 6 inches
• Hose Length: 20 feet
• Drive Type: Spring driven
• Frame Material: Steel, all-welded
• Weight: 105 pounds
• Length: 32 inches
• Width: 26 inches
• Height: 34 inches
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UOM: Each
• UPC: 674255844131

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 319-620
