Coxreels 319-520 Exhaust Hose Reel 5 in 20 Ft Spring Steel

Product Description

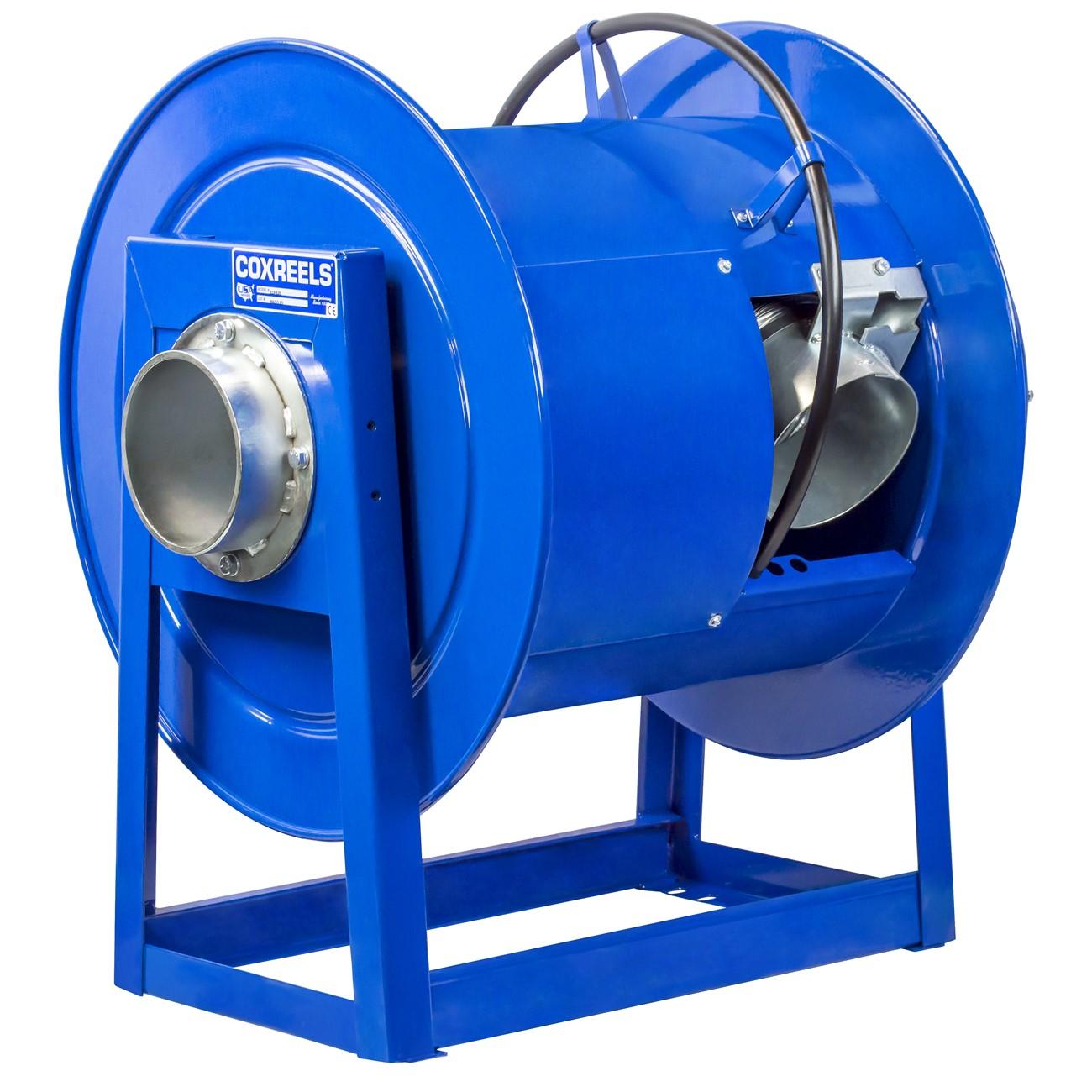

The COXREELS 319-520 is a spring-driven exhaust hose reel from the 300 Series, designed to deliver reliable ventilation ducting in demanding trade environments. Built on an all-welded steel frame with no bolt connections, this reel accepts a 5-inch ID hose up to 20 feet in length and is ready to deploy with internal ducting included. The precision coil spring is factory-tuned and matched to the application for consistent retraction performance and long service life. At 103 pounds, the unit is a heavy-duty piece of equipment intended for professional installation in automotive, industrial, or shop ventilation systems.

The 319-520 is suited for shop environments where exhaust fume extraction or forced ventilation ducting is required. The reel accommodates 4 to 6-inch exhaust ductwork across the model line, meaning no per-reel ductwork fitting is necessary. Typical applications include vehicle exhaust extraction in service bays, warehouse ventilation, and similar ducted airflow setups where a retractable spring-driven reel improves workflow and safety. Licensed HVAC technicians and mechanical contractors are the primary installers of this type of equipment.

Key Features

• All-welded steel frame with no bolt connections for maximum strength, stability, and tip-over resistance
• Fits 4 to 6-inch exhaust ductwork on all models — no per-reel ductwork fitting required
• Lubricated, enclosed cartridge-style motor is fully removable for safe and convenient maintenance
• Precision coil spring is factory-tuned and matched to the application for longest retraction life cycle
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Easy-access panel to the main drum, internal ducting included, CPC powder coat finish resists chips and rust

Compatibility

Designed to accept 4 to 6-inch exhaust ductwork on all 300 Series models. Internal ducting is included, making the reel ready for installation without additional ductwork fitting per unit.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor familiar with ventilation ducting systems. Shut down all associated ventilation or exhaust equipment and ensure the area is de-energized before mounting or servicing the reel. Secure the unit to a structurally sound overhead or wall mount capable of supporting the reel weight plus hose load. Consult applicable mechanical and building codes for exhaust ventilation requirements in your jurisdiction.

Technical Specifications

• Hose ID: 5 inches
• Hose Length: 20 feet
• Drive Type: Spring driven
• Frame Material: Steel, all-welded
• Length: 32 inches
• Width: 26 inches
• Height: 34 inches
• Weight: 103 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255844124

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 319-520
