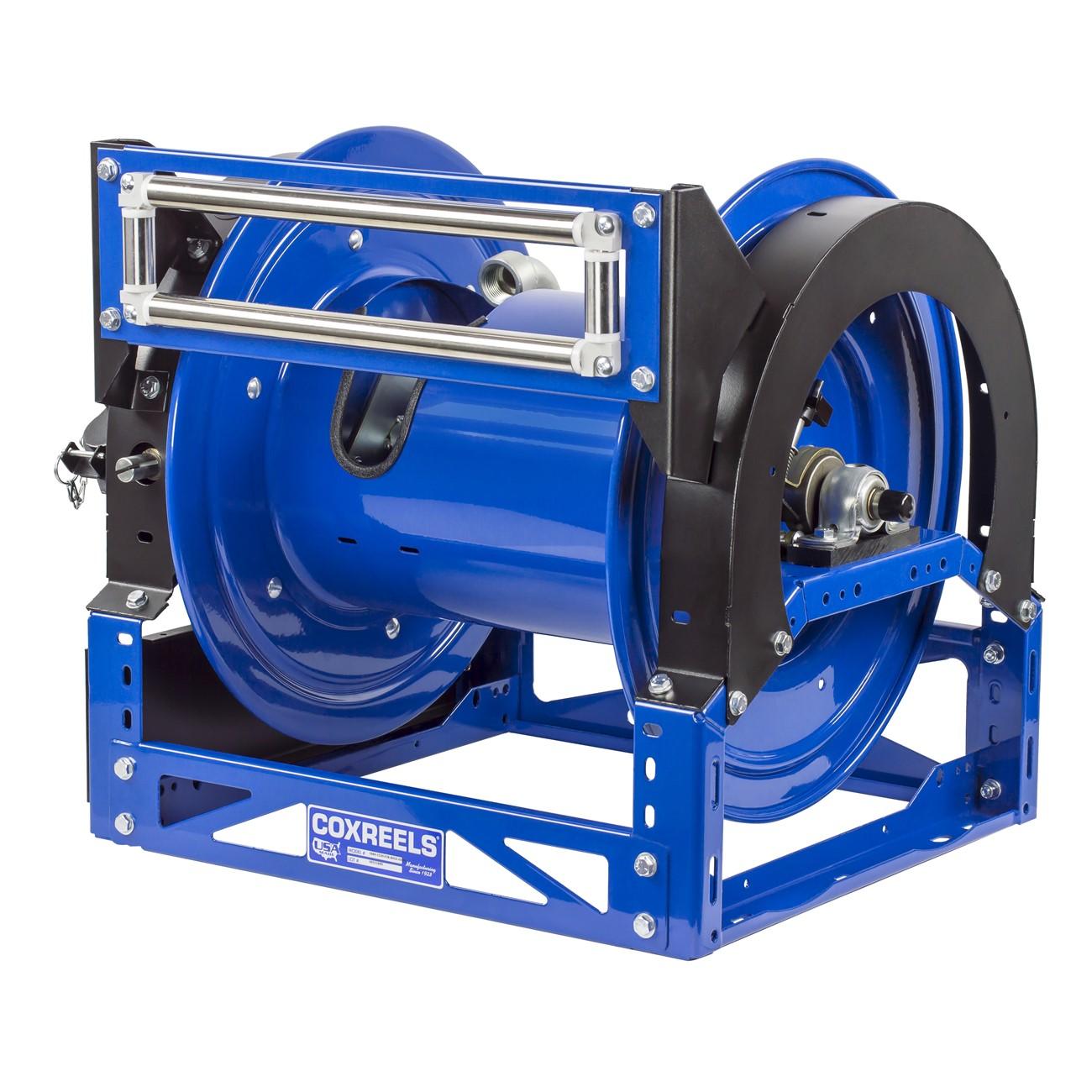

Coxreels 1680-2024 Hose Reel 1.5 in 100 Ft Hand Crank

Product Description

The COXREELS 1680-2024 is a heavy-duty hand crank hose reel from the 1600 Series, built for industrial and commercial fluid transfer applications. It accepts hose with a 1.5-inch inner diameter and holds up to 100 feet of hose. The reel rides on permanently lubricated, self-aligning pillow block bearings for smooth, consistent rotation. The frame is a one-piece CNC robotically welded 12-gauge steel hybrid A-frame design, providing structural rigidity without bolted joints. A CPC powder coat finish resists chips and rust for long service life. Licensed contractors and service technicians in demanding industrial environments are the primary installers.

The 1680-2024 suits a wide range of fluid transfer applications where a large-diameter, high-capacity hose reel is required. The symmetric reel design supports flexible mounting configurations, and the hybrid frame provides vertical side surfaces for wall, ceiling, or truck-bed mounting. The adjustable tension brake prevents freewheeling during unspooling, and the direct hand crank mechanism allows controlled mechanical retraction without power. This reel is used in industrial facilities, fleet service shops, agriculture operations, and similar environments where 1.5-inch hose lines and manual retraction are standard practice.

Key Features

• 1.5-inch ID hose inlet with nickel-plated steel inline NPT swivel for seal maintenance without removing the reel from its mount
• 100-foot hose capacity with low-profile outlet riser and open drum slot for a non-crimping, flat hose wrap
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for superior structural integrity
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and reduced maintenance
• Adjustable tension brake and direct hand crank for controlled unspooling and easy mechanical retraction
• CPC powder coat finish with zinc-plated steel plumbing for corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct-fit reel for applications requiring a 1.5-inch ID, 100-foot-capacity hand crank hose reel in the COXREELS 1600 Series platform.

Installation Notes

Installation is typically performed by qualified industrial or mechanical contractors familiar with large-bore hose systems. Shut off and depressurize the hose line completely before mounting or making any plumbing connections. Secure the reel to a structurally adequate mounting surface rated for the combined weight of the reel and fully loaded hose. Follow applicable facility safety codes and equipment manufacturer guidelines for hose connection torque and fitting type.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Capacity: 100 feet
• Retraction Type: Hand Crank
• Frame Construction: 12-gauge CNC robotically welded steel hybrid A-frame
• Finish: CPC powder coat with zinc-plated steel plumbing
• Bearings: Permanently lubricated self-aligning pillow block
• Weight: 89 pounds
• Series: 1600

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-2024
