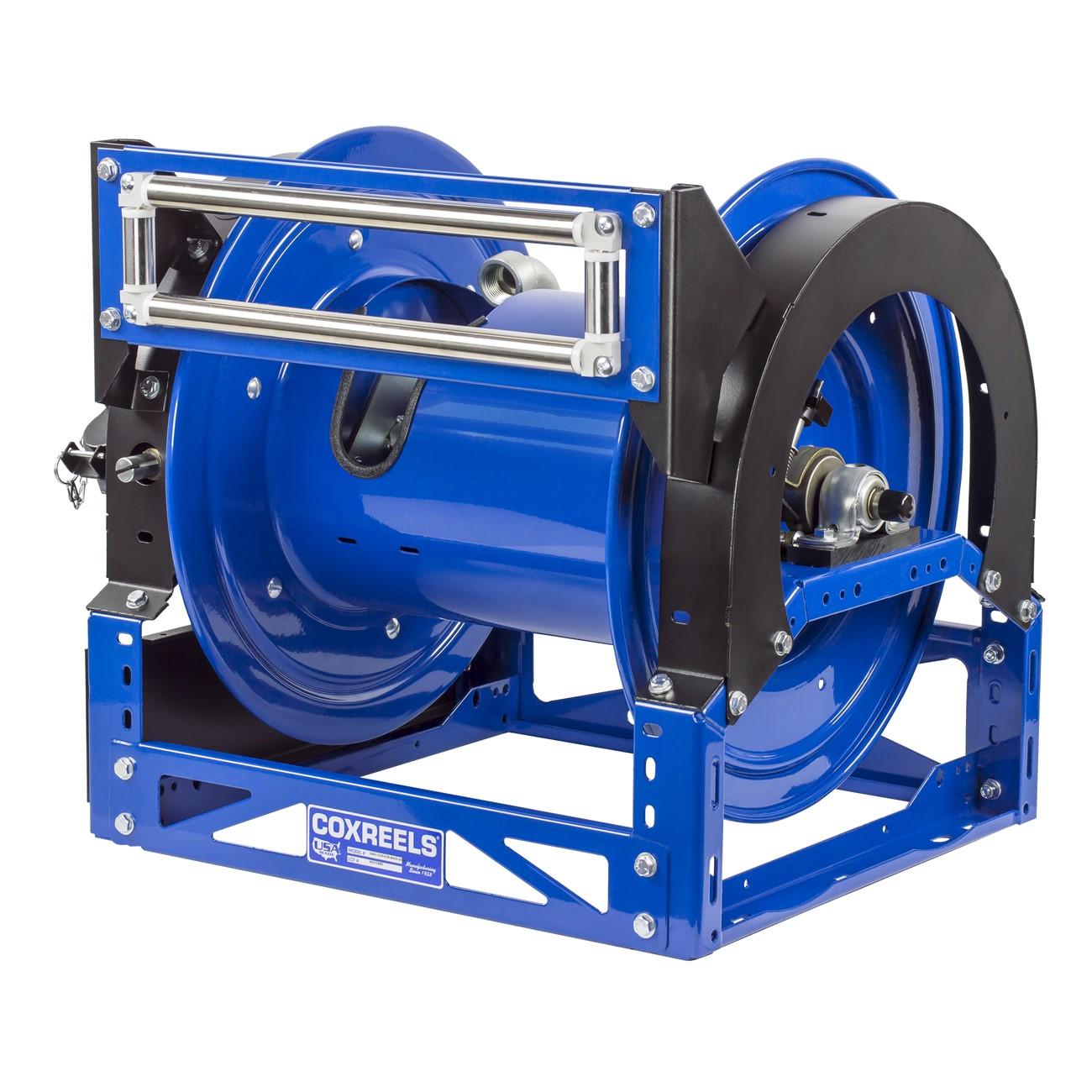

Coxreels 1680-2024-ED Hose Reel 1.5 in 100 Ft Electric Motor

Product Description

The COXREELS 1680-2024-ED is a heavy-duty motorized hose reel from the 1600 Series, built for demanding industrial and commercial applications. It features a 1.5-inch ID inlet, accommodates up to 100 feet of hose, and is driven by a 12-volt DC, 0.5 HP explosion-proof reversible electric motor. The reel is constructed from 12-gauge CNC robotically welded steel using a hybrid A-frame design that combines structural rigidity with mounting flexibility. A nickel-plated inline NPT swivel, permanently lubricated self-aligning pillow block bearings, and a CPC powder coat finish round out the core construction. Licensed contractors and industrial maintenance personnel are the primary installers of this unit.

The 1680-2024-ED is suited for high-volume fluid transfer operations in industrial plants, fleet maintenance facilities, agricultural operations, and other environments where reliable motorized hose retrieval is required. The explosion-proof motor rating makes it appropriate for use in locations where flammable vapors or dust may be present. The adjustable tension brake prevents free-wheeling during deployment, adding control in active work environments. The open drum slot and low-profile outlet riser promote a flat, non-crimping hose wrap that extends hose service life.

Key Features

• 12V DC, 0.5 HP explosion-proof reversible electric motor for powered hose retrieval
• 1.5-inch ID inlet with nickel-plated steel inline NPT swivel — no reel removal required for seal service
• Heavy-duty 12-gauge CNC robotically welded hybrid A-frame steel base for superior structural integrity
• CNC robotically spun and ribbed disc drums with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style motorized hose reel for industrial and commercial fluid transfer systems requiring a 1.5-inch ID connection and up to 100 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting and low-voltage DC electrical wiring. Shut off all fluid supply and disconnect or de-energize the 12V DC power source before mounting or servicing the unit. Secure the reel to a structurally adequate surface using the vertical frame sides; consult local mechanical and electrical codes for fastener and wiring requirements. In classified hazardous locations, verify the installation complies with applicable NEC Article 500 requirements before energizing the motor.

Technical Specifications

• Hose ID: 1.5 inches
• Hose Capacity: 100 feet
• Motor Voltage: 12 volts DC
• Motor Power: 0.5 HP
• Motor Type: Explosion-proof reversible electric
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Swivel Material: Nickel-plated steel
• Weight: 115 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-2024-ED
