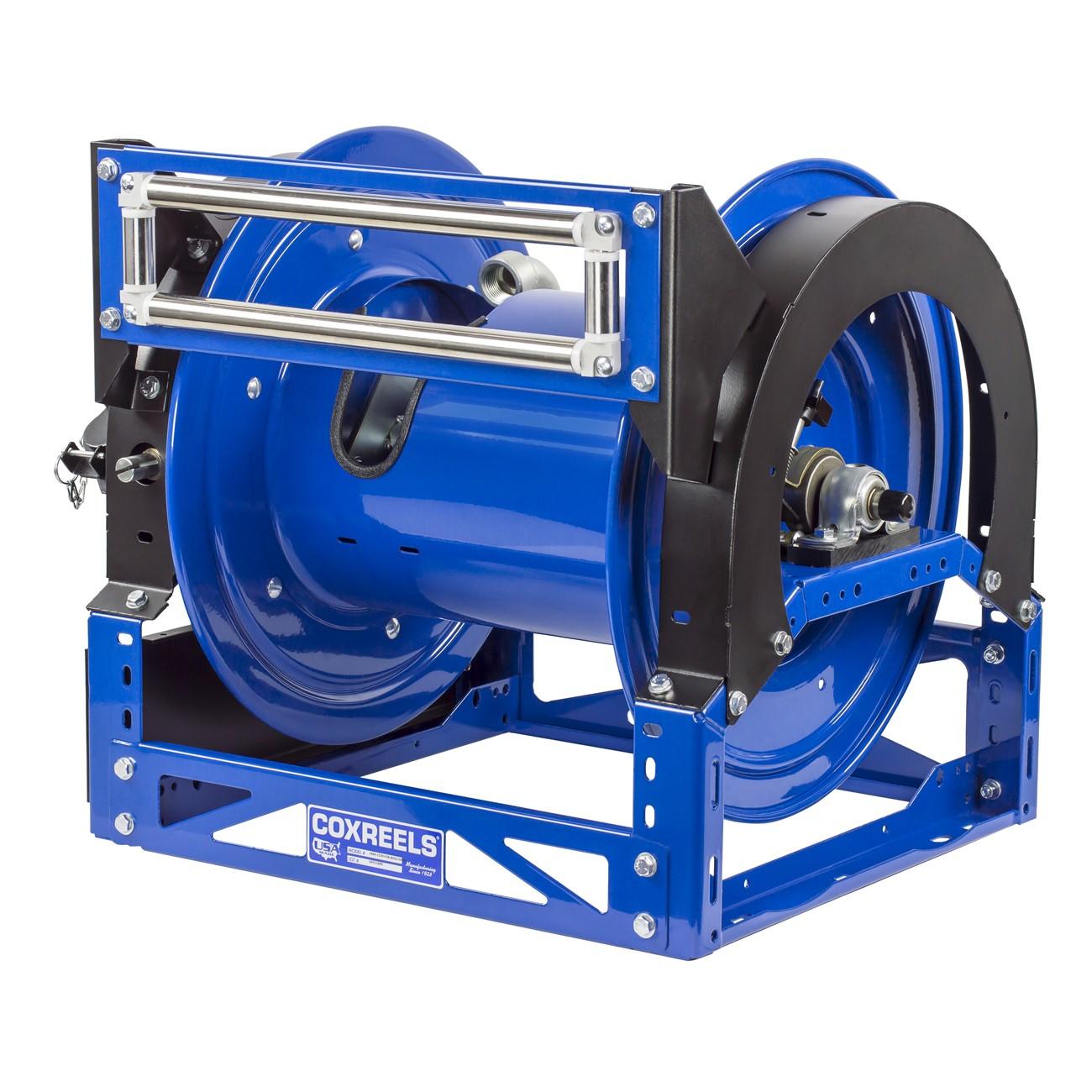

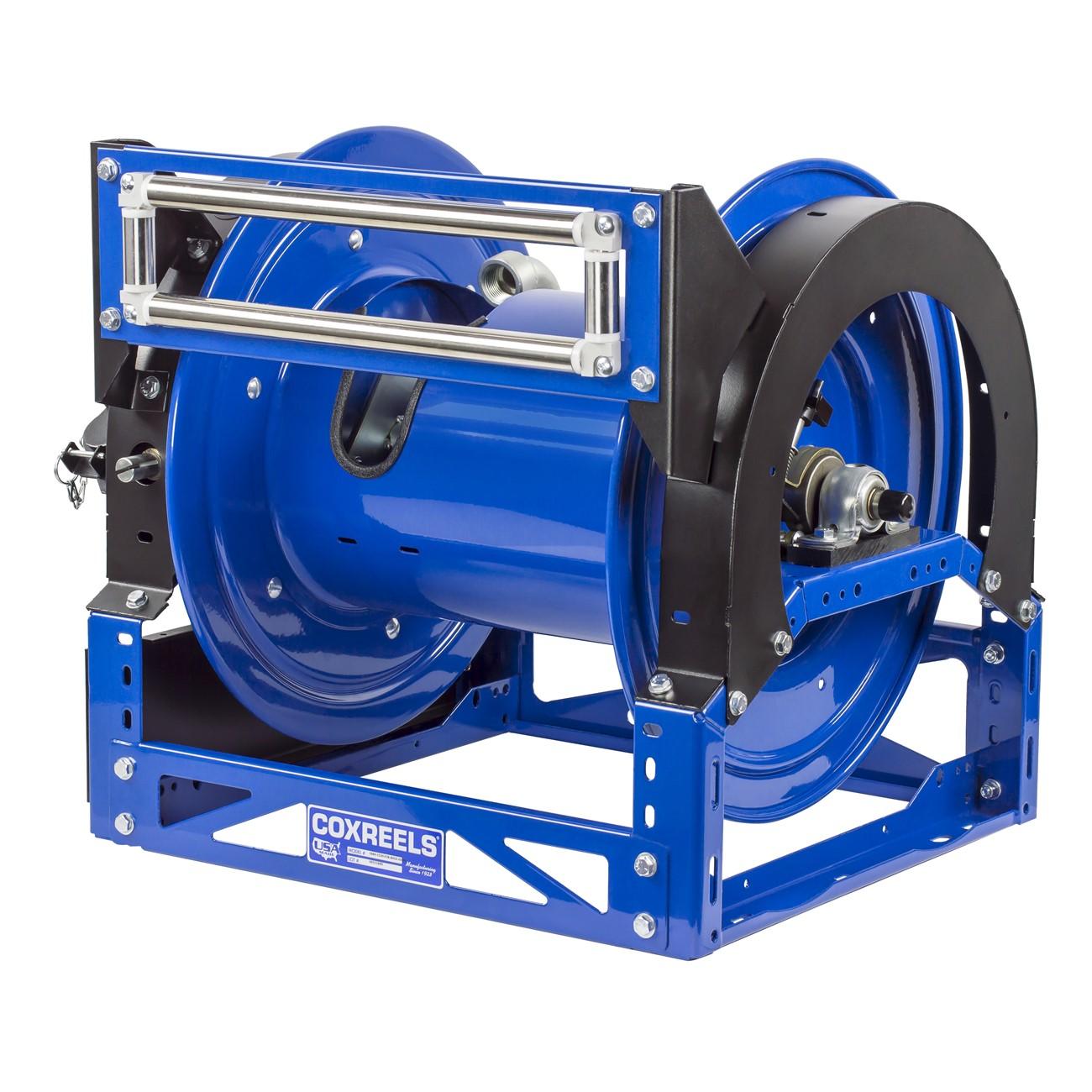

Coxreels 1680-2024-E 1600 Series Hose Reel 12V Dc Motor

Product Description

The COXREELS 1680-2024-E is a heavy-duty motorized hose reel from the 1600 Series, designed for industrial and commercial fluid handling applications. It features a 1.5-inch ID inlet, accommodates up to 100 feet of hose, and is driven by a 12-volt DC reversible motor rated at 1/3 horsepower. The reel is built on a one-piece CNC robotically welded 12-gauge steel hybrid A-frame base, finished with a chip-resistant CPC powder coat and zinc-plated steel plumbing components. Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation. An adjustable tension brake prevents free-wheeling during payout. Licensed plumbers, industrial maintenance crews, and fleet service technicians are the primary installers of this unit.

The 1680-2024-E suits demanding stationary or vehicle-mount fluid dispensing setups in industrial plants, service garages, and fleet maintenance facilities. The symmetric reel design supports a wide range of hose configurations, making it adaptable to hydraulic, water, or chemical transfer lines depending on hose compatibility. The low-profile outlet riser and open drum slot deliver a flat, non-crimping hose wrap, which reduces wear over repeated wind-and-unwind cycles. The 12V DC motor enables powered retraction, reducing operator fatigue in high-volume service environments.

Key Features

• 12V DC reversible electric motor rated at 1/3 HP for powered hose retraction
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for rigid, bolt-free construction
• Nickel-plated steel inline NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount
• CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated self-aligning pillow block bearings for consistent, low-maintenance rotation
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chipping and rust

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for industrial and commercial fluid dispensing systems requiring a 1.5-inch ID inlet and motorized retraction capability.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and low-voltage DC wiring. Shut off all fluid supply lines and disconnect the 12V DC power source before mounting or servicing the reel. Secure the A-frame base to a structurally sound surface using appropriate fasteners rated for the reel weight. Electrical connections to the motor must comply with applicable NEC guidelines for low-voltage DC circuits.

Technical Specifications

• Hose Inside Diameter: 1.5 inches
• Maximum Hose Length: 100 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat with zinc-plated steel plumbing
• Bearings: Permanently lubricated self-aligning pillow block
• Weight: 102 pounds
• UPC: 674255856349

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-2024-E
