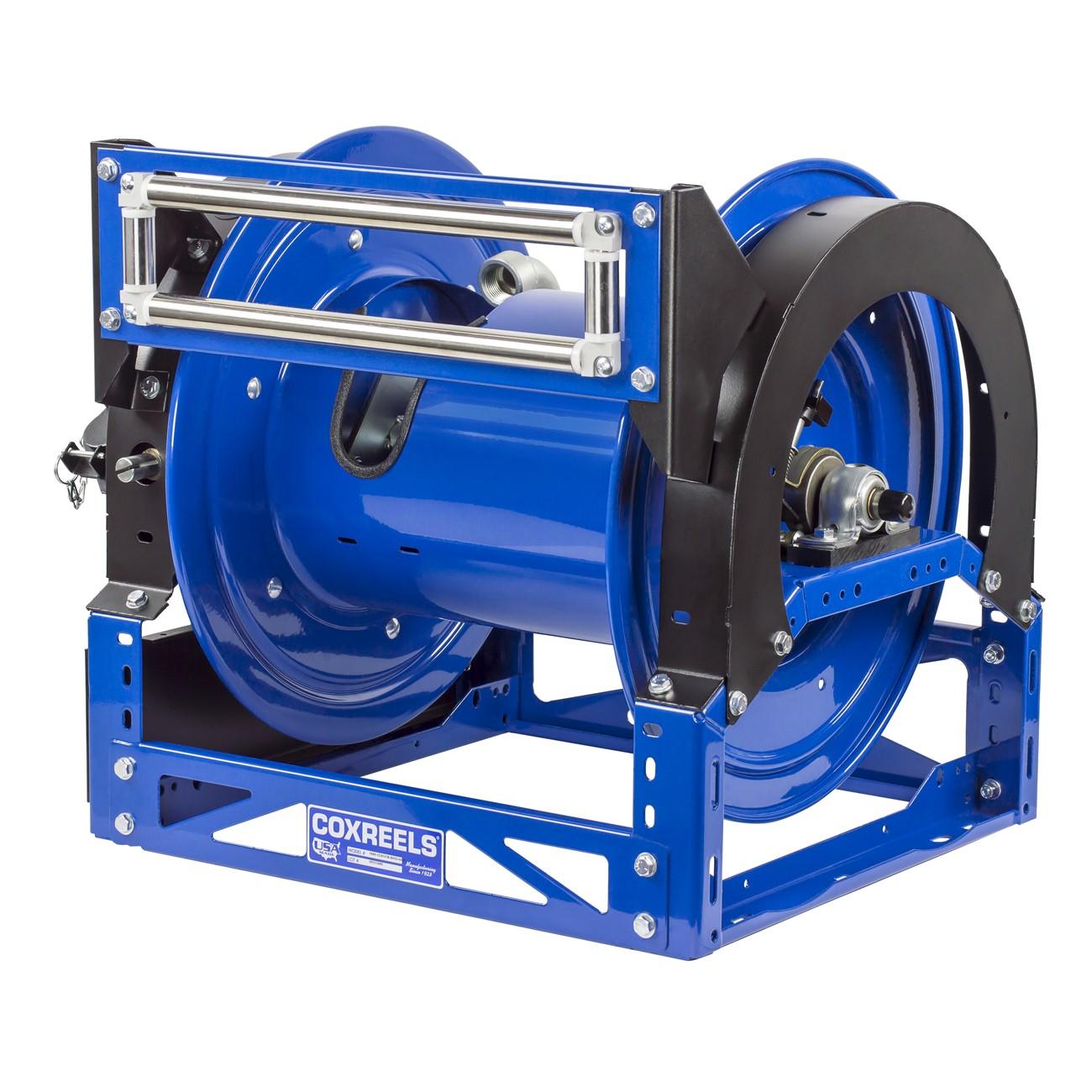

Coxreels 1680-1520-E 1600 Series Hose Reel 1.5 in Steel

Product Description

The COXREELS 1680-1520-E is a heavy-duty motorized hose reel from the 1600 Series, built for industrial and trade applications that demand reliable, high-cycle performance. It features a 1.5-inch inside diameter hose capacity rated for 50 feet of hose and is driven by a 12-volt DC, 1/3 horsepower reversible electric motor. The welded 12-gauge steel hybrid A-frame base provides structural rigidity without relying on bolted connections. A CPC powder coat finish adds chip resistance and rust inhibition for long service life in demanding environments. Licensed tradespeople in industrial, fleet, and facility maintenance settings are the primary installers of this unit.

The 1680-1520-E is suited for applications requiring motorized hose retrieval where manual rewinding is impractical or unsafe. The symmetric reel design supports a wide range of hose routing configurations. It is appropriate for use in automotive service bays, industrial plants, fleet maintenance shops, and other professional environments where a 1.5-inch hose with motorized control is required. The flexible frame design accommodates various mounting orientations and accessory configurations.

Key Features

• 12-volt DC, 1/3 HP reversible electric motor for powered hose retrieval
• 1.5-inch ID hose capacity with 50-foot hose length rating
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for superior structural integrity
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Nickel-plated steel inline NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• Adjustable tension brake prevents free-wheeling during operation
• CPC powder coat finish with zinc-plated steel plumbing for corrosion resistance

Compatibility

Designed as an OEM-style replacement or new-installation motorized hose reel for industrial and trade applications requiring a 1.5-inch ID, 50-foot capacity reel with 12-volt DC electric motor drive.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic or pneumatic hose reel mounting and low-voltage DC wiring. Power down all connected systems and disconnect the 12-volt DC power source before mounting or servicing the unit. Secure the reel to a structurally sound mounting surface using hardware appropriate for the load rating. Verify hose connections and swivel fittings are properly sealed before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 1.5 inches
• Hose Capacity: 50 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Disc Construction: CNC spun and ribbed steel with rolled edges
• Swivel Material: Nickel-plated steel, inline NPT
• Finish: CPC powder coat with zinc-plated steel plumbing
• Weight: 84 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-1520-E
