Coxreels 1680-1128-E 1600 Series Hose Reel 12V Dc Motor

Product Description

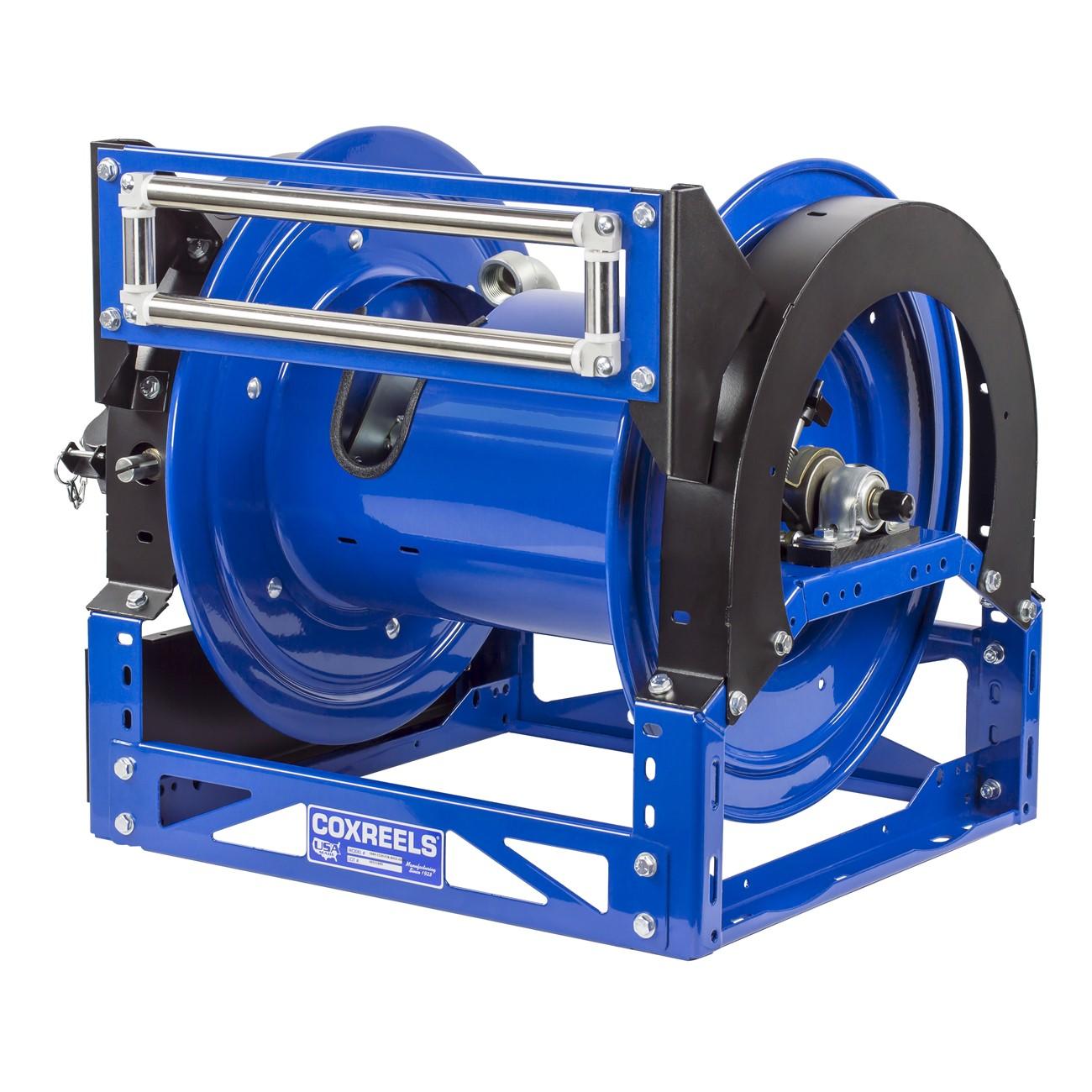

The COXREELS 1680-1128-E is a heavy-duty motorized hose reel from the 1600 Series, built for demanding industrial and commercial fluid-handling applications. It features a 1.5-inch inner diameter hose path and accommodates up to 85 feet of hose. The reel is powered by a 12-volt DC, 1/3 horsepower reversible electric motor for effortless retraction. The frame is fabricated from 12-gauge steel using a one-piece CNC robotically welded hybrid A-frame design. Licensed contractors and service technicians working in high-volume fluid transfer environments install this reel where consistent, reliable hose management is required.

The 1680-1128-E suits a wide range of industrial, municipal, and commercial service operations that require motorized hose retrieval. Its symmetric reel design and flexible size envelope make it adaptable to various mounting configurations. The hybrid frame provides vertical mounting surfaces and supports numerous optional accessories, making it appropriate for truck-mounted, wall-mounted, or bay-installed setups where 1.5-inch hose capacity and powered operation are priorities.

Key Features

• 12V DC, 1/3 HP reversible electric motor for powered hose retraction
• 1.5-inch ID hose path with 85-foot hose capacity
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for structural integrity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Nickel-plated steel inline NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Exclusive low-profile outlet riser and open drum slot design for non-crimping, flat smooth hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish with zinc plating on steel plumbing for corrosion resistance
• Adjustable tension brake prevents free-wheeling during deployment

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for industrial and commercial fluid-handling systems requiring a 1.5-inch ID, 85-foot capacity motorized reel in the COXREELS 1600 Series platform.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-handling systems and low-voltage DC electrical wiring. Shut off all fluid supply and disconnect power to the 12V DC circuit before mounting or servicing the reel. Ensure the mounting surface is rated to support the loaded weight of the reel and hose. Refer to local codes and the manufacturer instructions for proper electrical connection of the DC motor.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Capacity: 85 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat with zinc-plated steel plumbing
• Weight: 101 pounds
• UOM: Each
• UPC: 674255855830

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-1128-E
